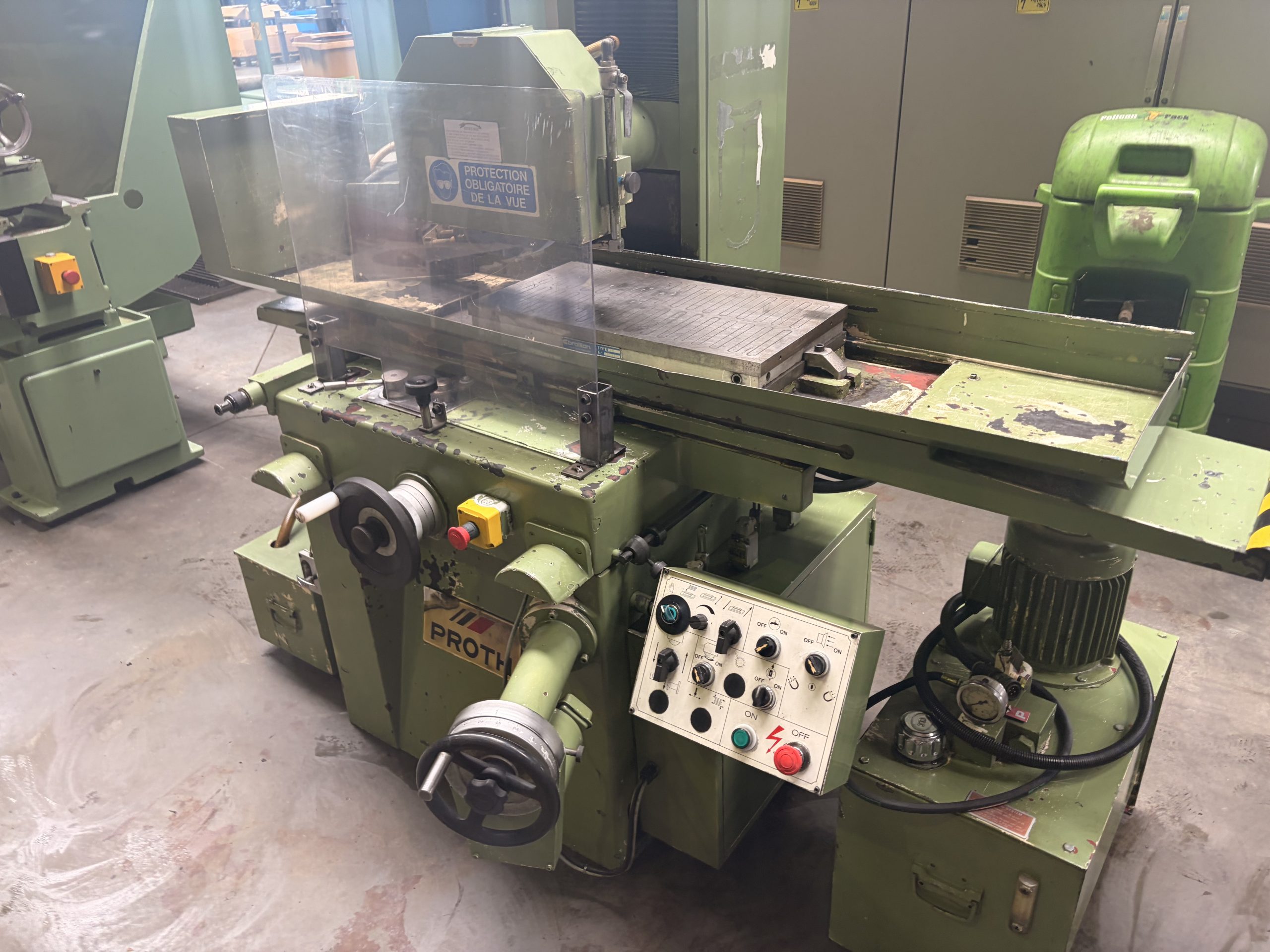

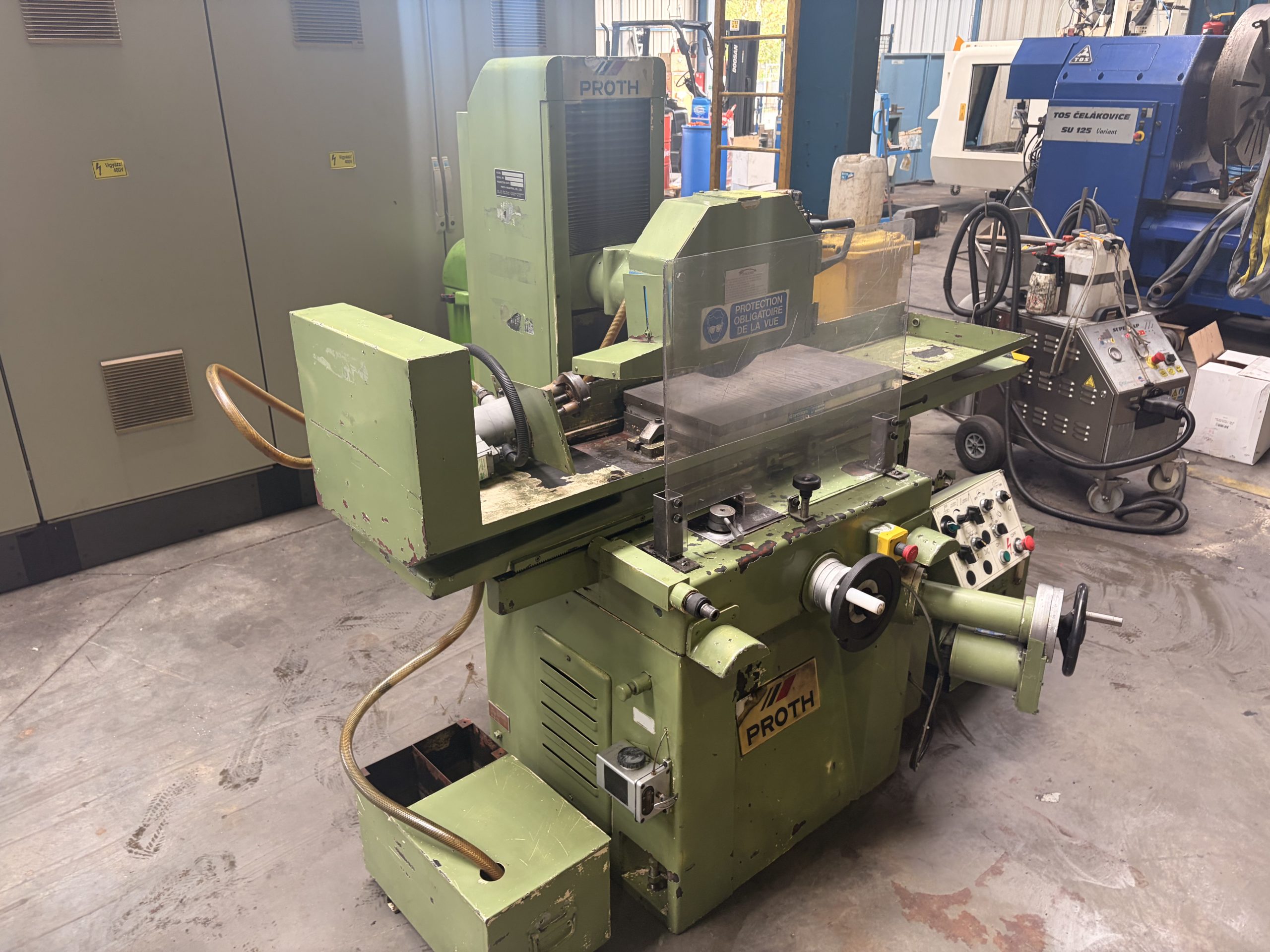

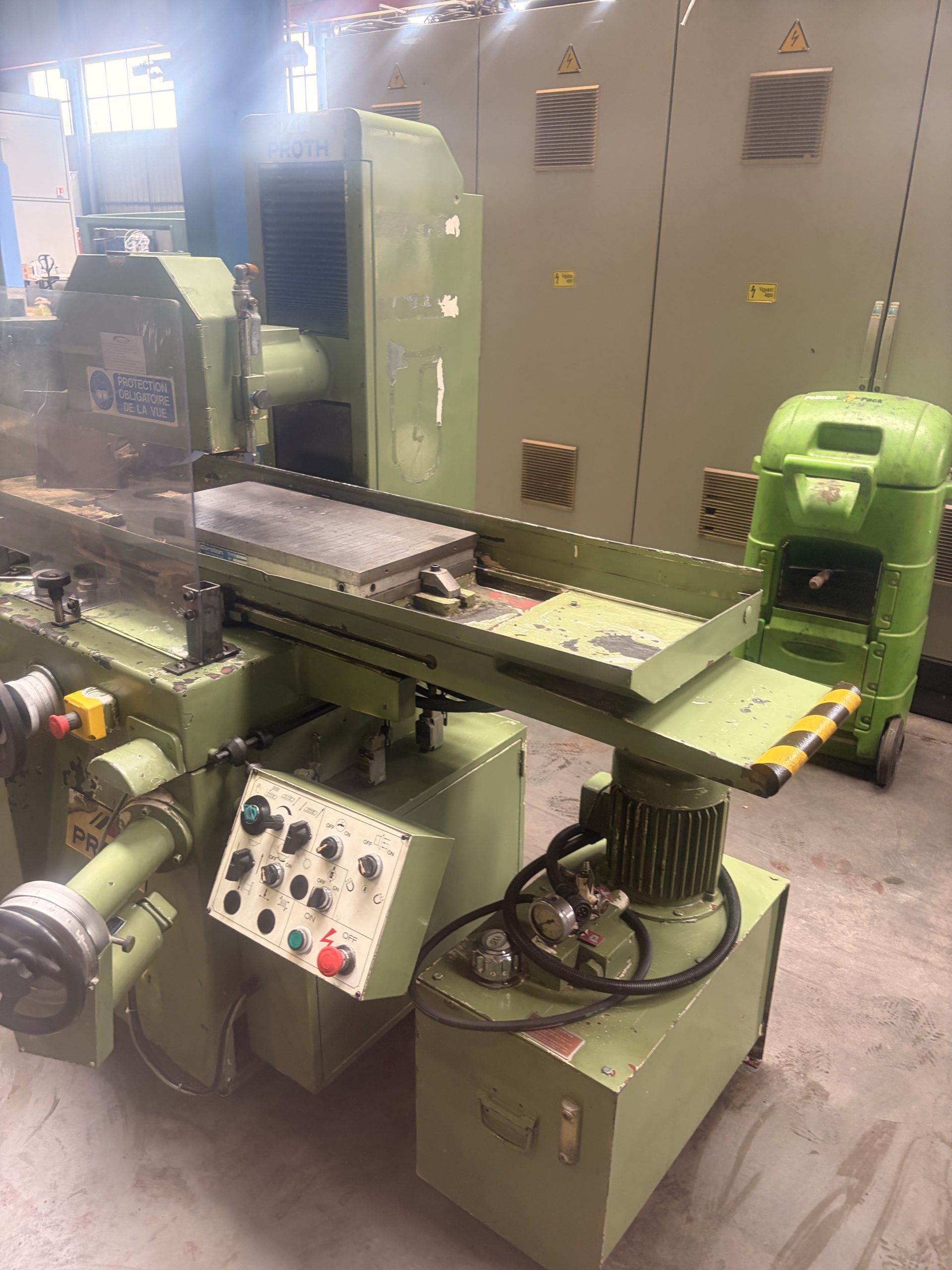

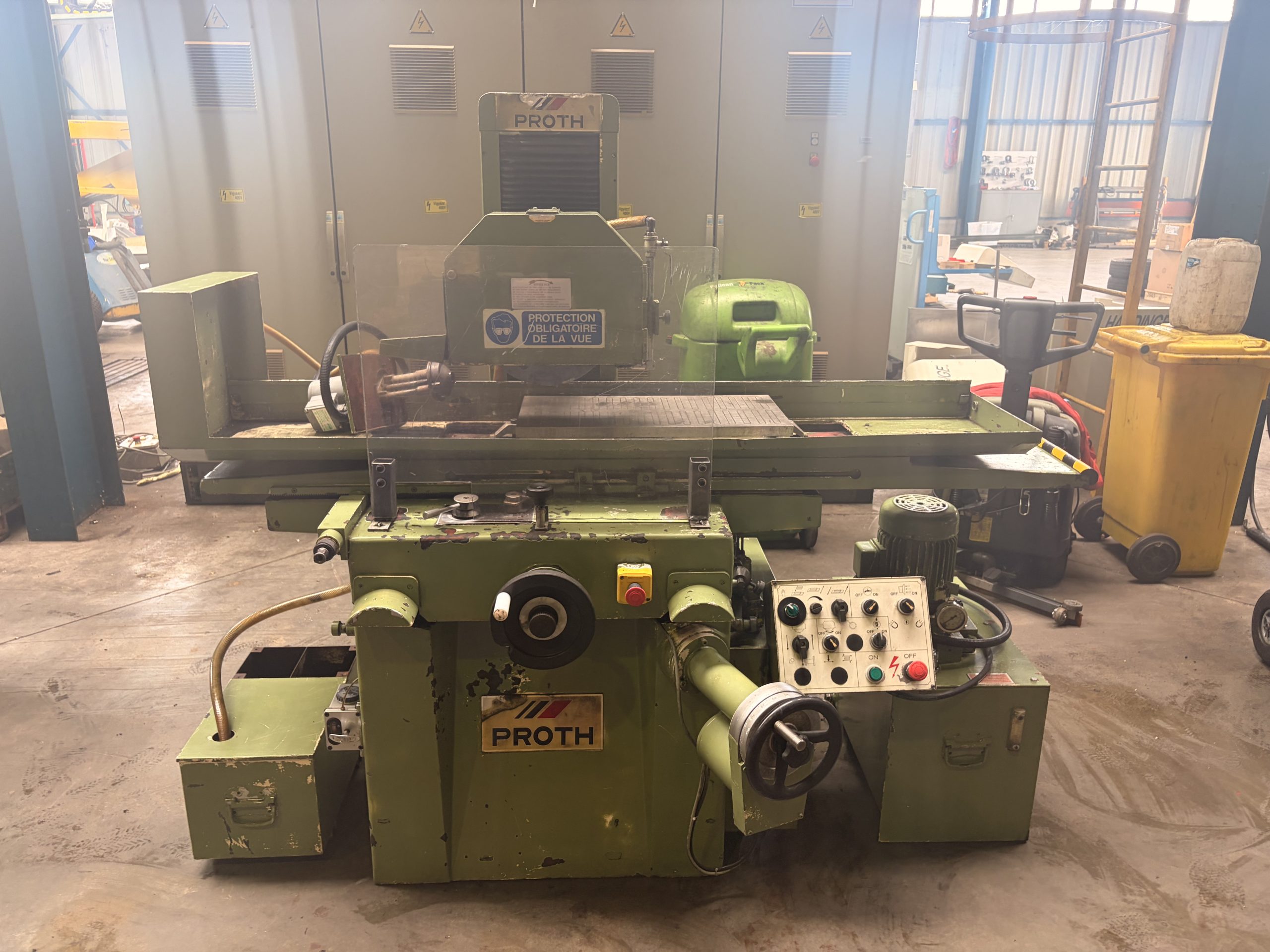

Surface Grinding Machine PROTH PSGS-3060AH

Surface Grinding Machine PROTH PSGS-3060AH

Grinding surface: 300 × 600 mm

Cross × longitudinal travel: 340 × 700 mm

Spindle center height above table: approx. 500 mm

Table longitudinal speed: 1–25 m/min

Standard grinding wheel: Ø355 × 25 × Ø127 mm

Spindle speed: 1,500 / 1,800 rpm at 50/60 Hz

Spindle motor: 2.2 kW / 3 HP

Net weight: approx. 1,650 kg

Packed machine dimensions: approx. 2.28 × 1.74 × 2.06 m
