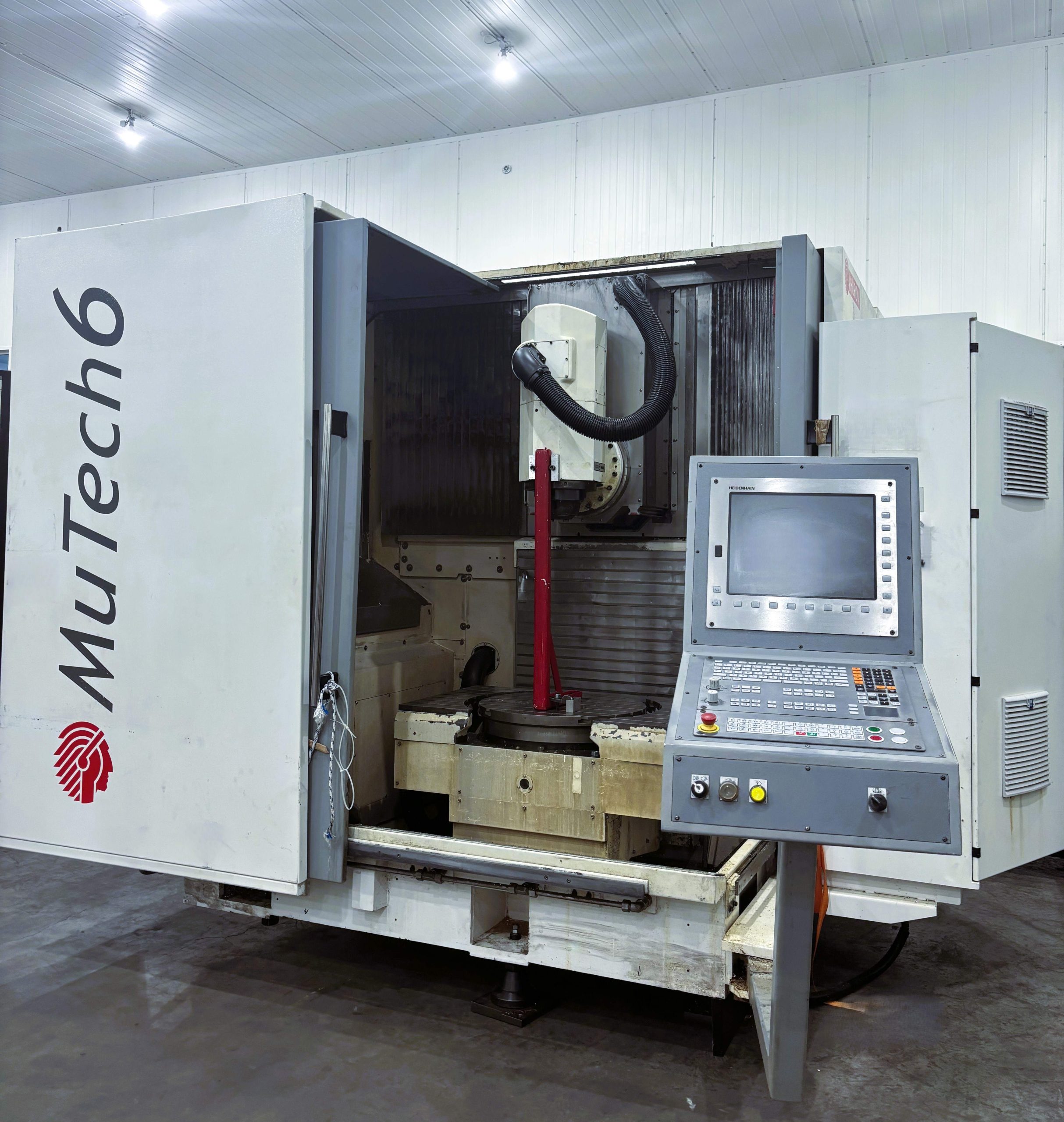

ModelMUTECH6

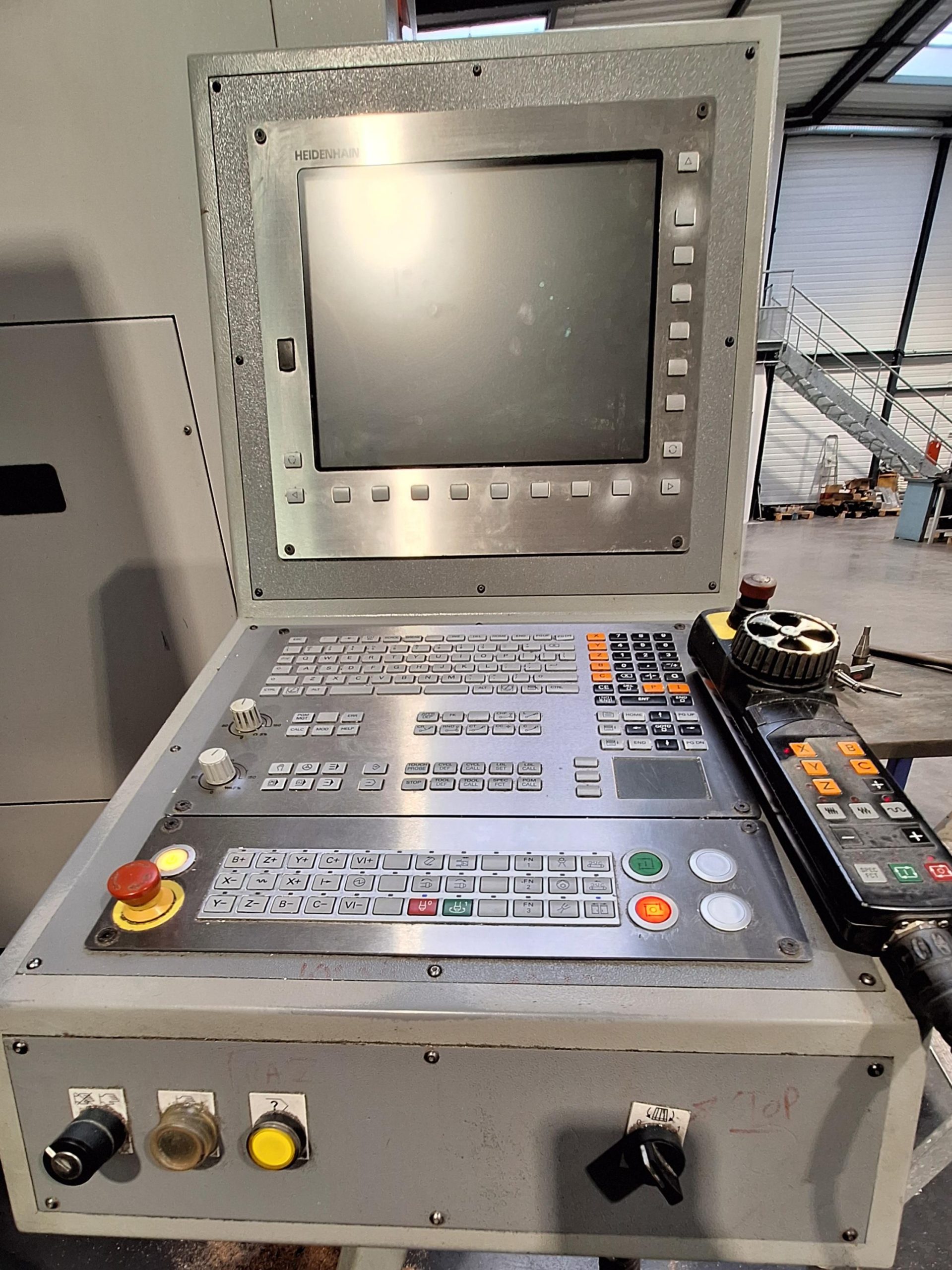

Control systemHEIDENHAIN TNC 530
Year of manufacture2014
Table dimension1000 x 600 mm – Ø 600 mm
stroke X axis750
stroke Y axis560
stroke Z axis560

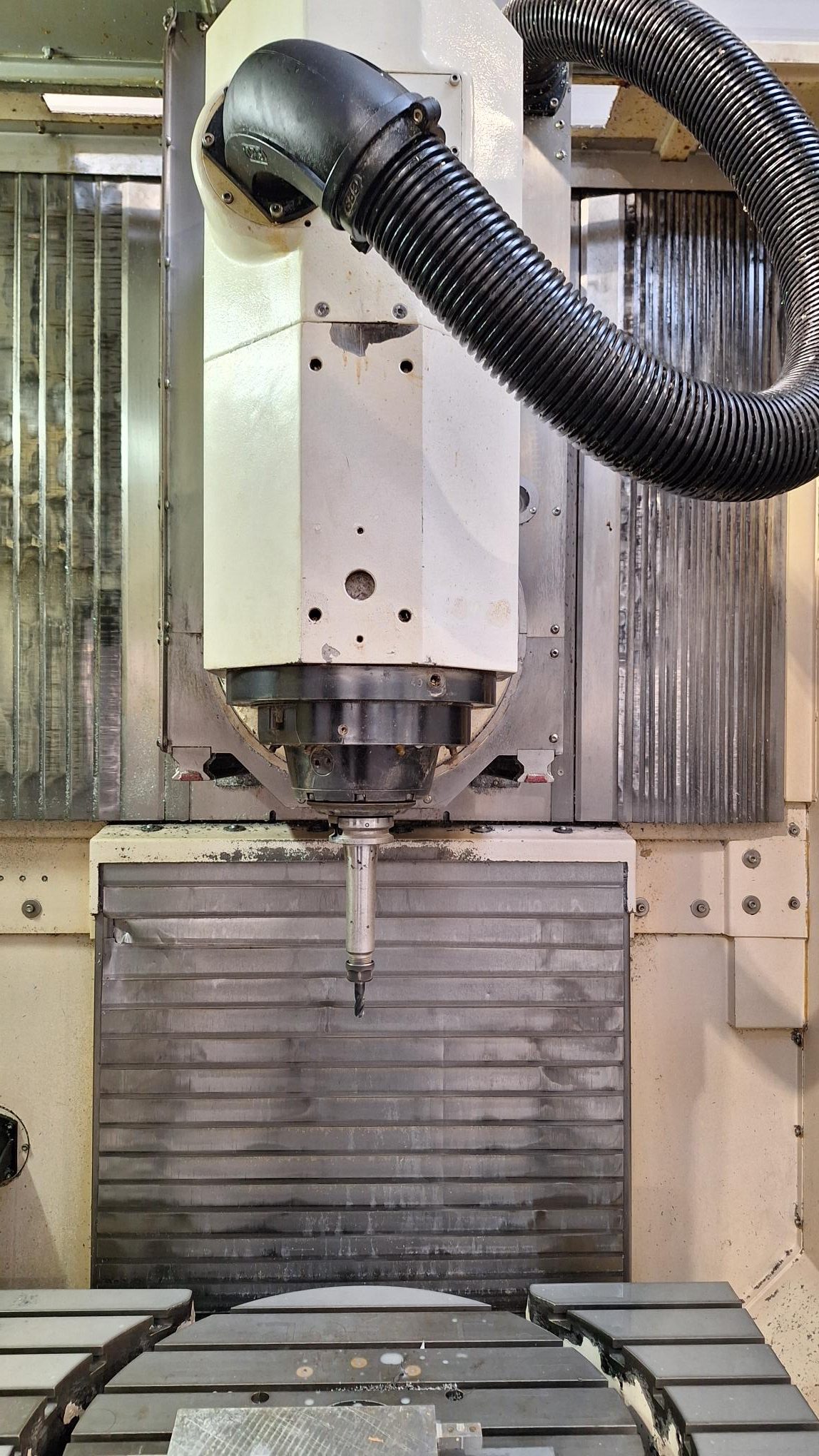

spindle/tapperélectro broche
Rotation speed range12,000 rpm
Dimensions4950 x 2950 x 2600 mm
Rapid traverse:
B-axis: 35 rpm
C-axis: 40 rpm
EQUIPMENT:

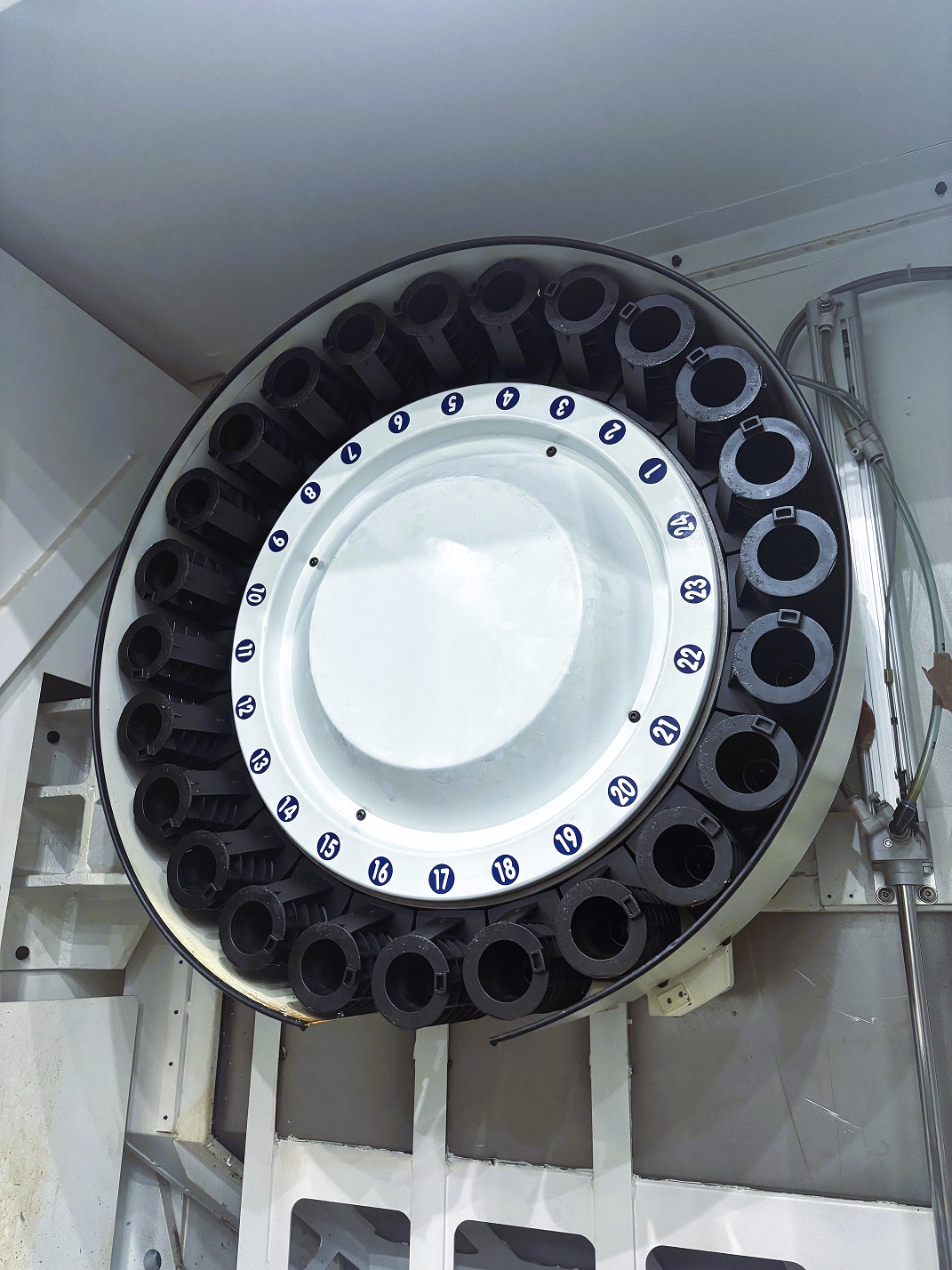

- Tool changer: 24 positions
- Tilting head: +30° / -120°
- Centralized lubrication system
- Chip conveyor
- Complete mechanical inspection

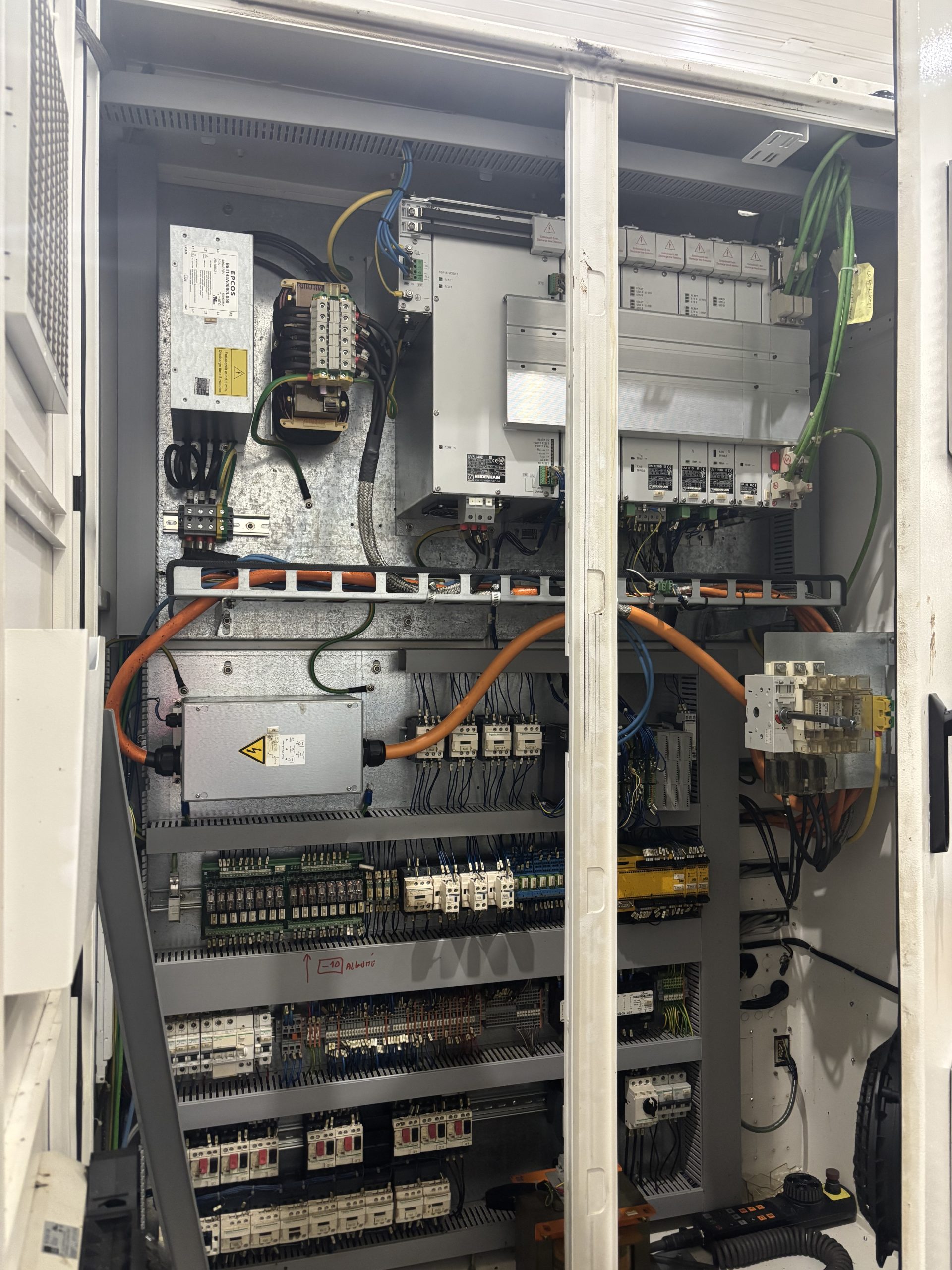

- Electrical cabinet compliant with applicable standards
- High-pressure coolant system: 25 bar
- Warranty of proper operation
