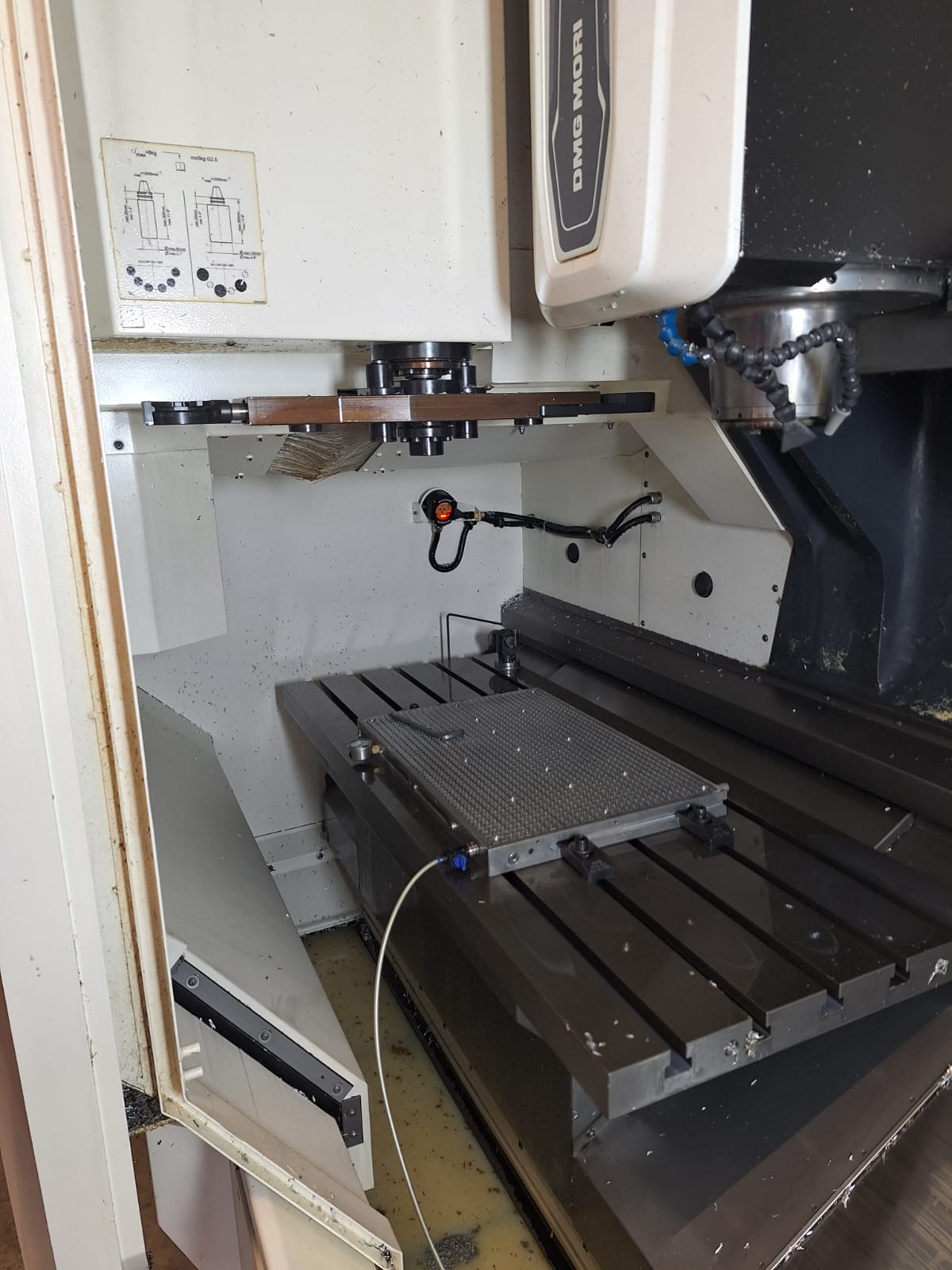

Table dimension1400 x 560 mm
stroke X axis1100 mm
stroke Y axis560 mm
stroke Z axis510 mm
Rotation speed range12,000 tr/min
spindle power13/9Kw
Tools number/type30
Weight5830 kg
Dimensions2750 x 2770 x 2935 mm
- Rapid traverse: 30 m/min
- 30-position tool changer with double gripper
- Chip tray
- Washdown gun
- Through-spindle coolant

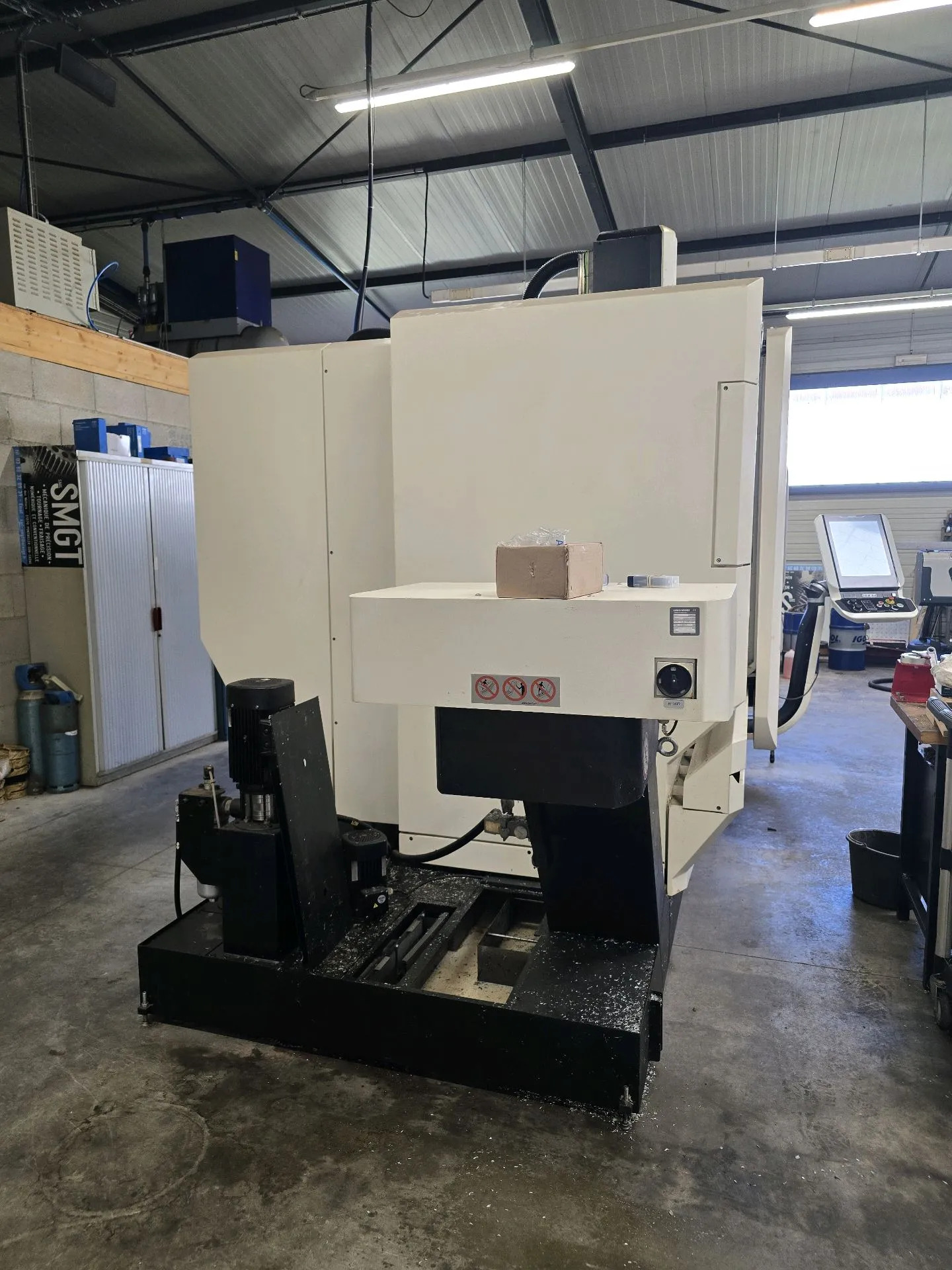

- Chip conveyor

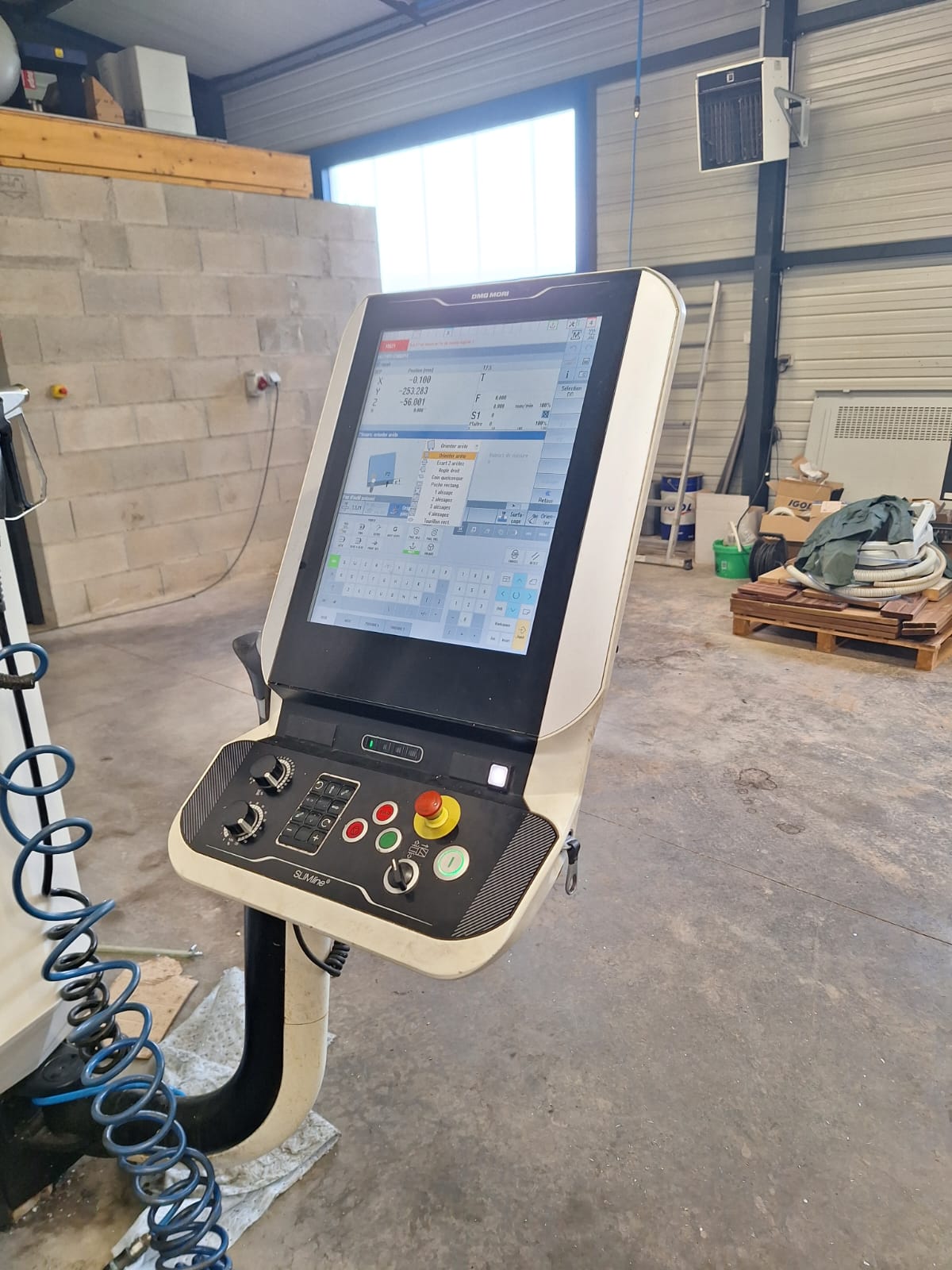

- Electronic handwheel
- Renishaw tool setter and workpiece probe
