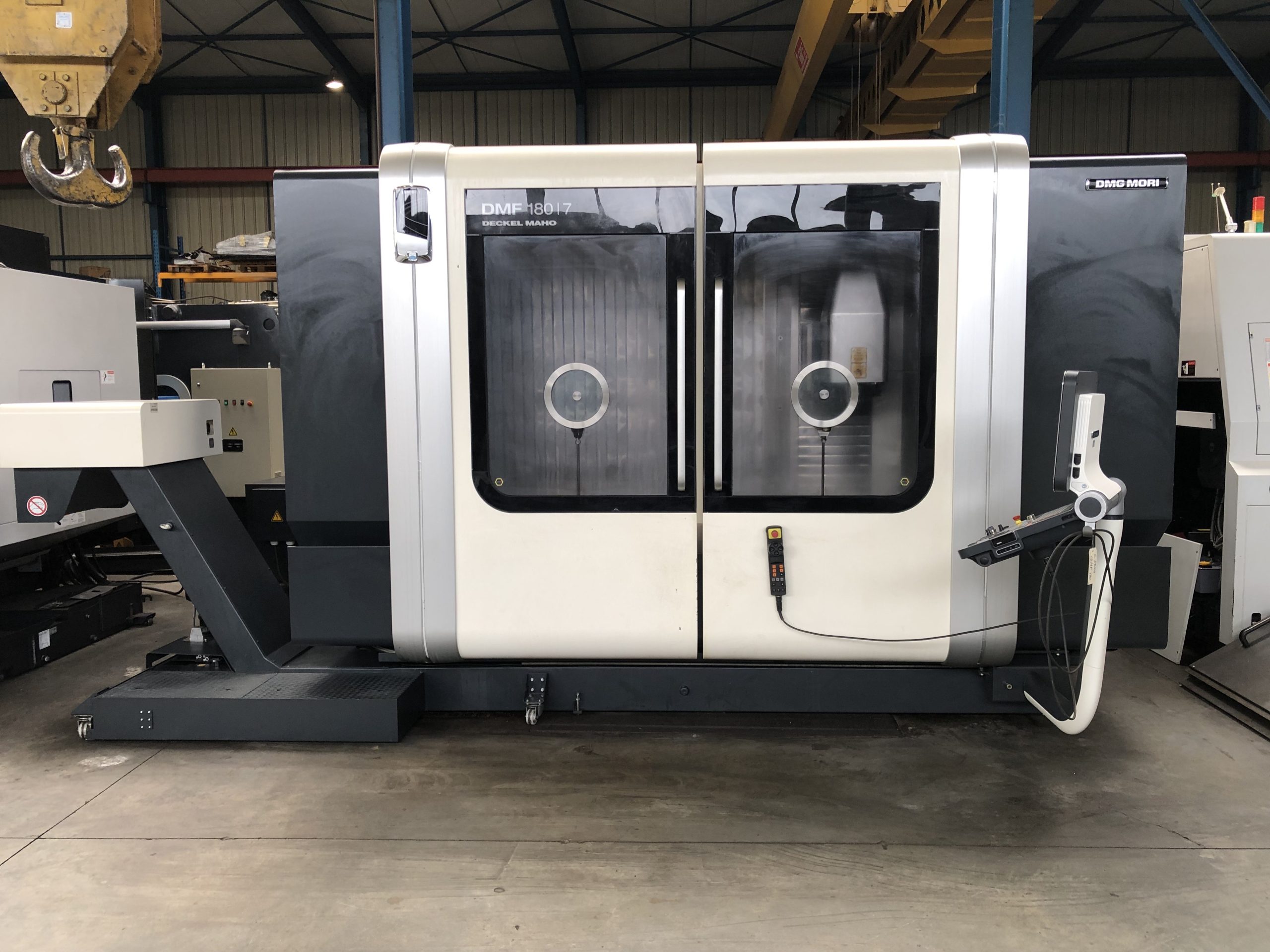

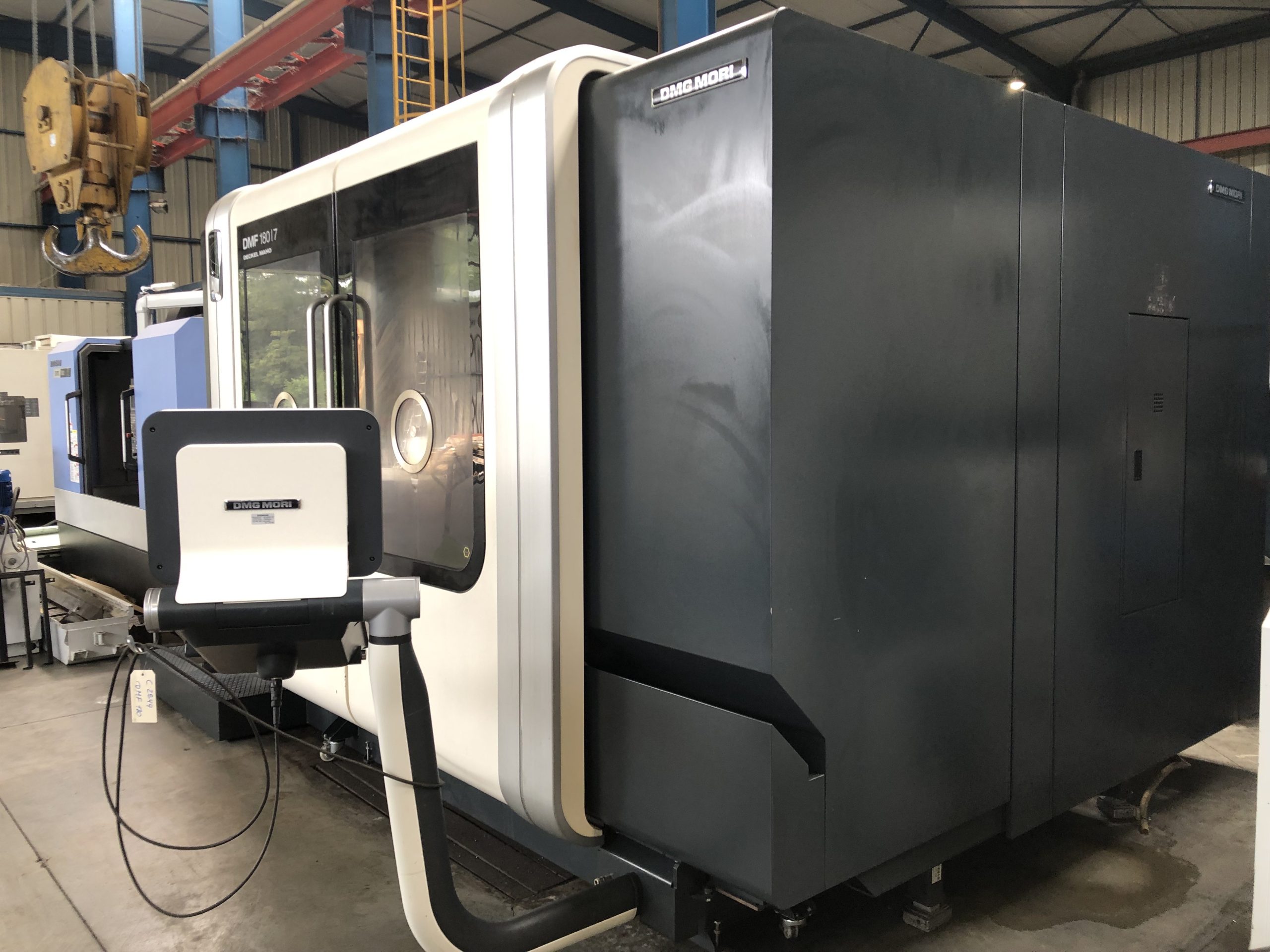

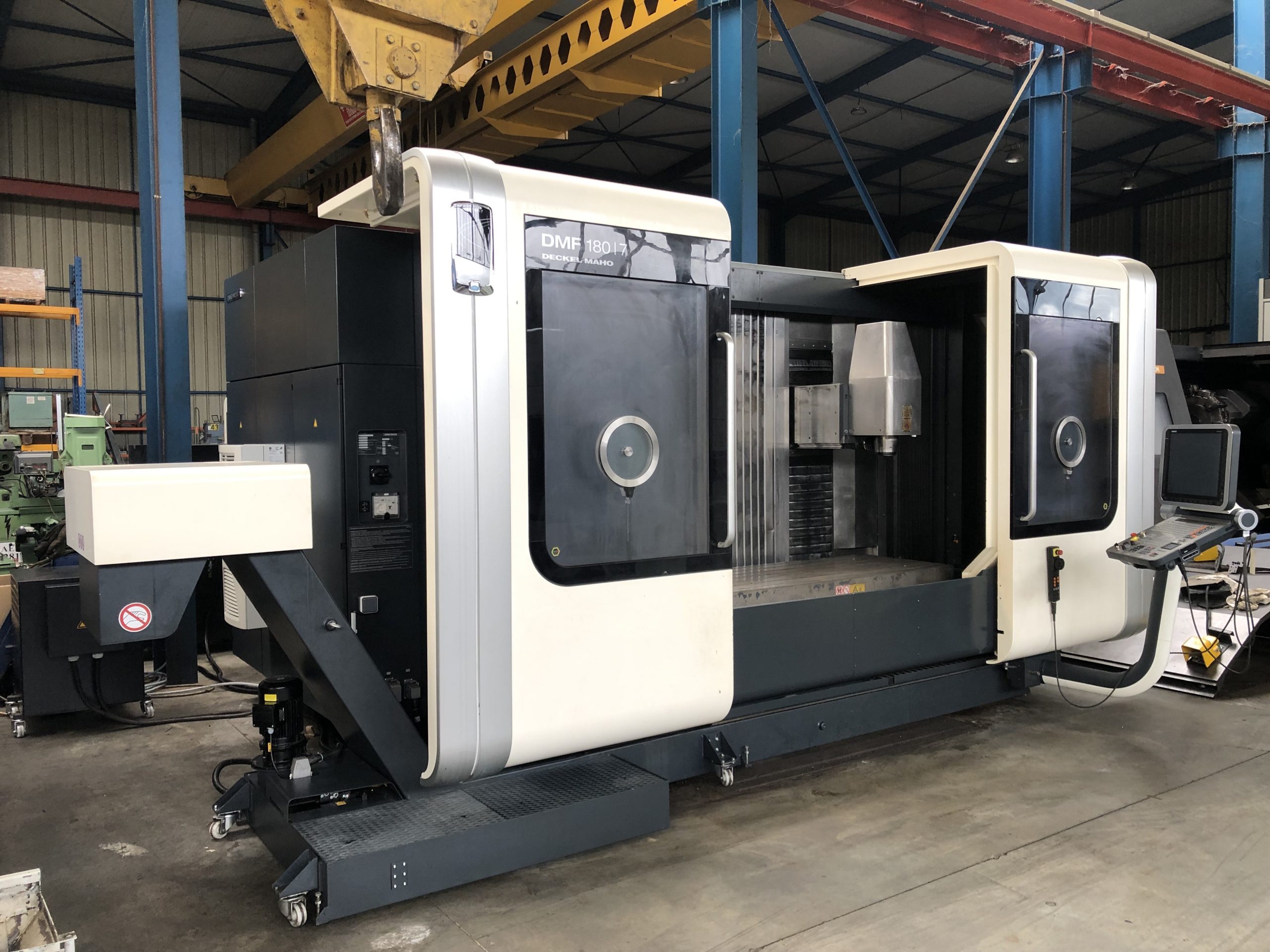

Vertical machining center DMG DMF 180-7

ReferenceC2844

ModelDMF 180-7

Control systemHeidenhain iTNC 530

Year of manufacture2014

Table dimension2100 x 700

Load capacity1500 kg

stroke X axis1800

stroke Y axis700

stroke Z axis700

spindle/tapperSK 40

spindle power18.9 kW

Tools number/type30

Weight12380 kg

Dimensionsfor transport 3423 x 7060 x h 2622 mm

Electronique handwheel

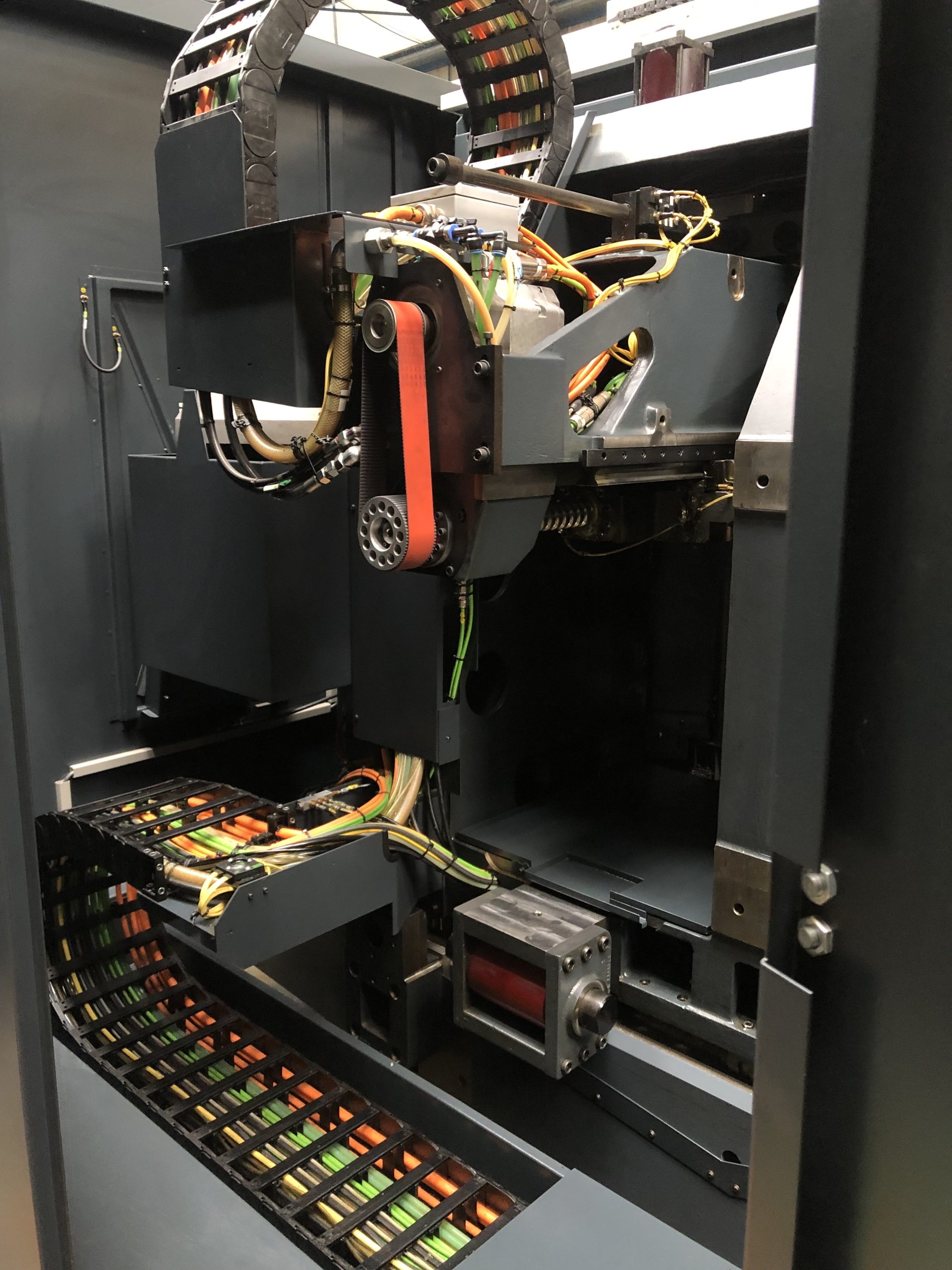

Milling head:

spindle hours – 13000 h

Speed 20-1400 rpm

Continuous feed rate up to 20 000 mm/min

Maximum tool size in the tool magazine: 300 mm in length, Ø 130 mm

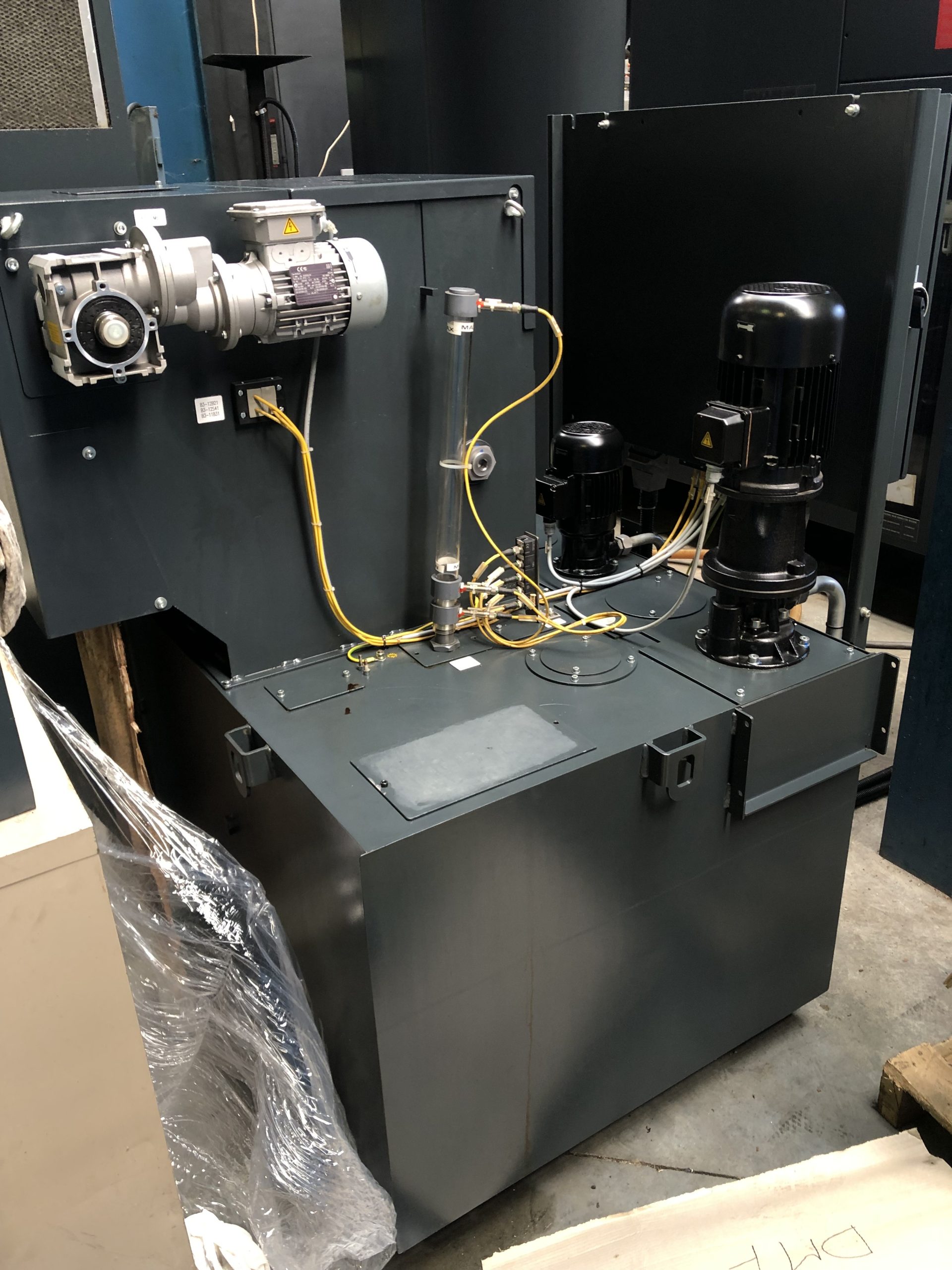

Coolant through spindle
Chip conveyor 5890 x 1030 x h1550 mm, poids 770 kg

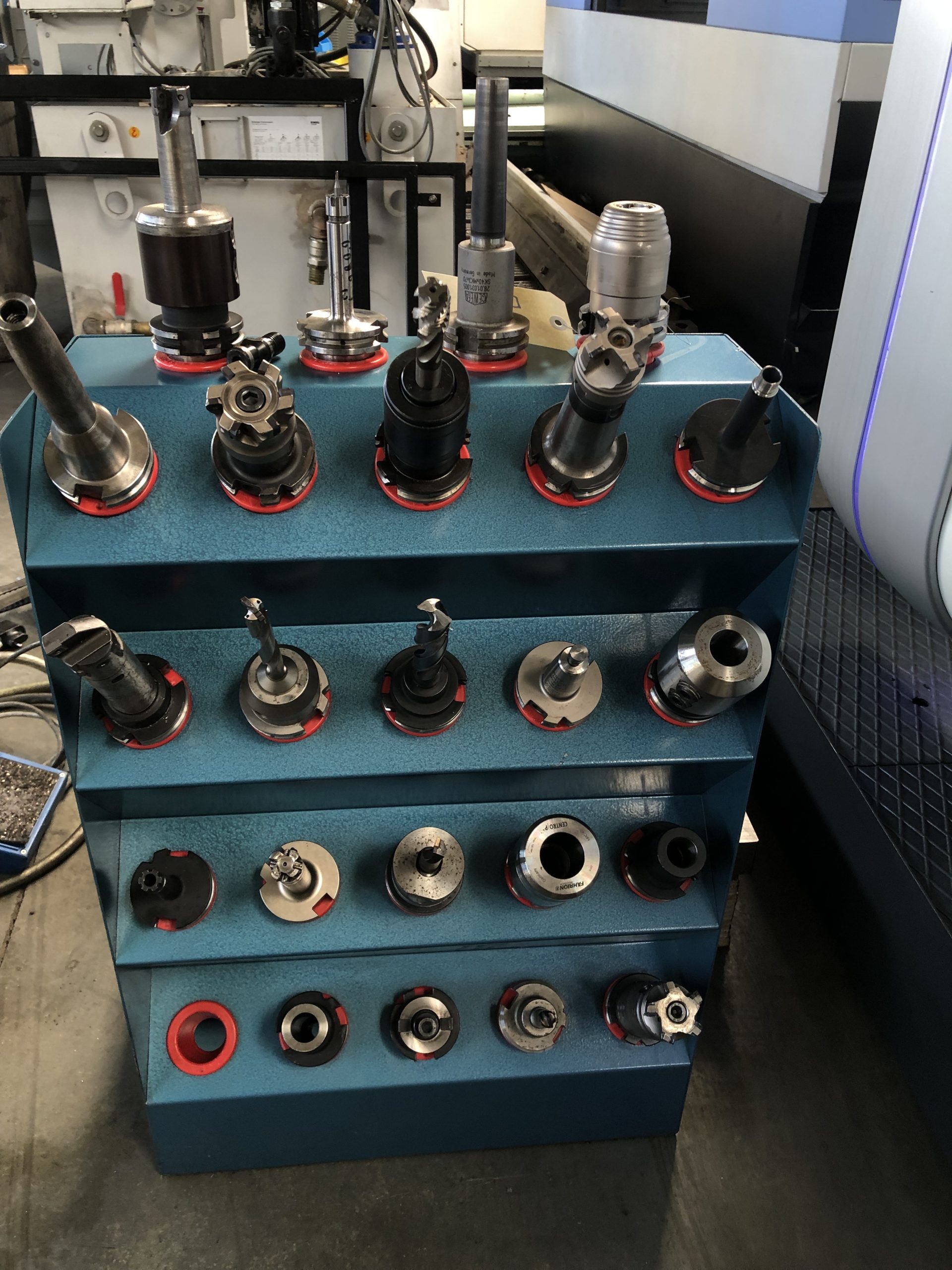

Set of tools 25 pcs
Tool touch probe BLUM
Complete documentation
