ReferenceC2883

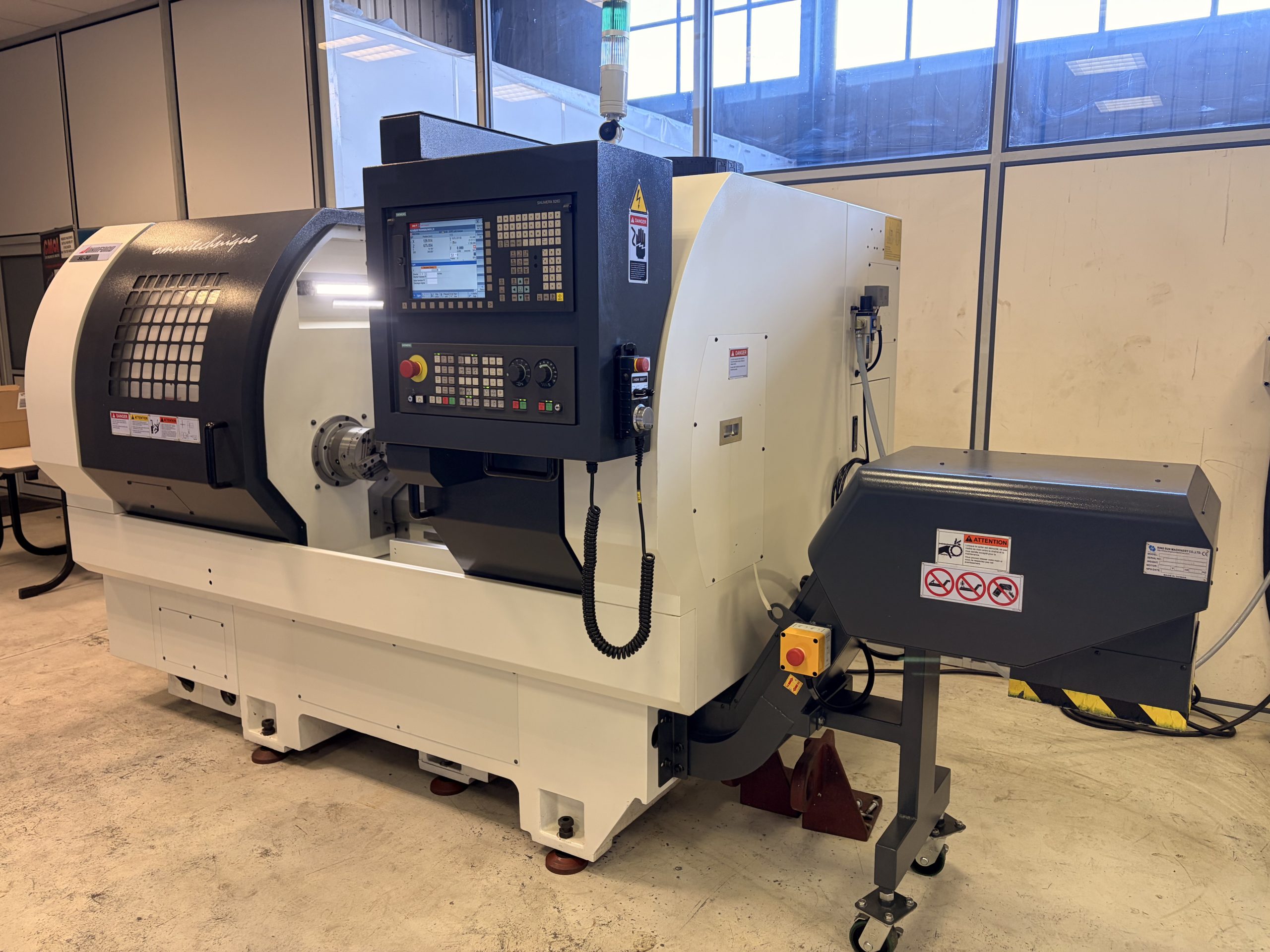

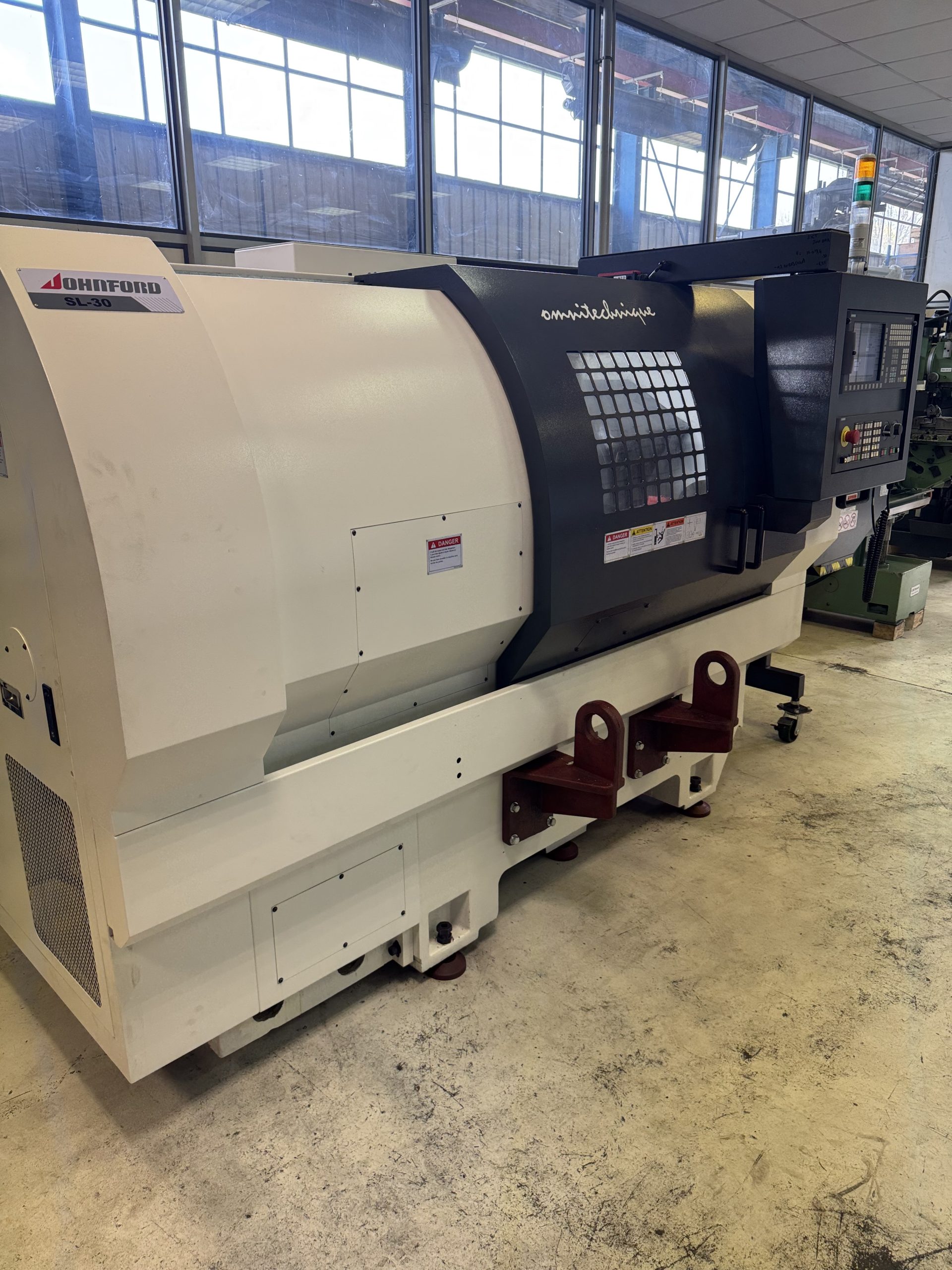

ModelSL-30
Control systemSIEMENS 828D
Year of manufacture2024
Swing over bed400 mm
swing over carriage330 mm
stroke X axis180 mm
stroke Y axis+/- 40 mm
stroke Z axis600 mm
Rotation speed range4500 tr/min
spindle power11/15
Spindle bore65 mm
Max. bar diametre51 mm
Tools number/type12
Weight4000 kg
Dimensions3525 (avec convoyeur) x 1851 x H 2020 mm
Specifications:
Spindle nose: A2-6
Spindle bearing diameter: 100 mm
Rapid feed rate: approx. 24 m/min

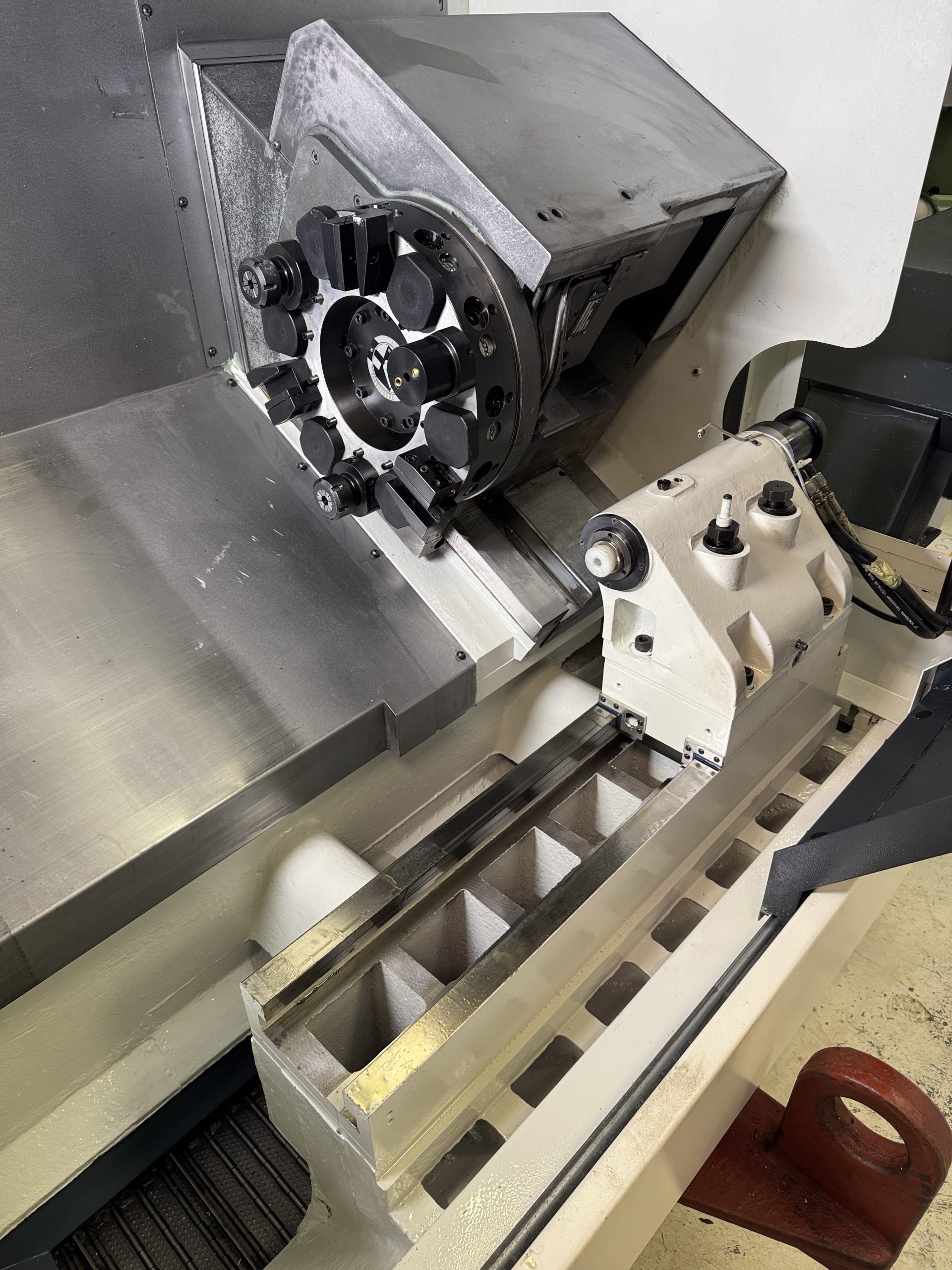

Tailstock travel: 500 mm
Quill travel: 60 mm
Quill diameter: 60 mm
Taper: MT#4
Bed inclination: 30°
Guideway type: prismatic slides
Standard equipment:
Automatic lubrication system
Coolant system
Halogen work lamp
Chip conveyor (chain type)
Programmable hydraulic tailstock
3-jaw chuck
Tool holders
