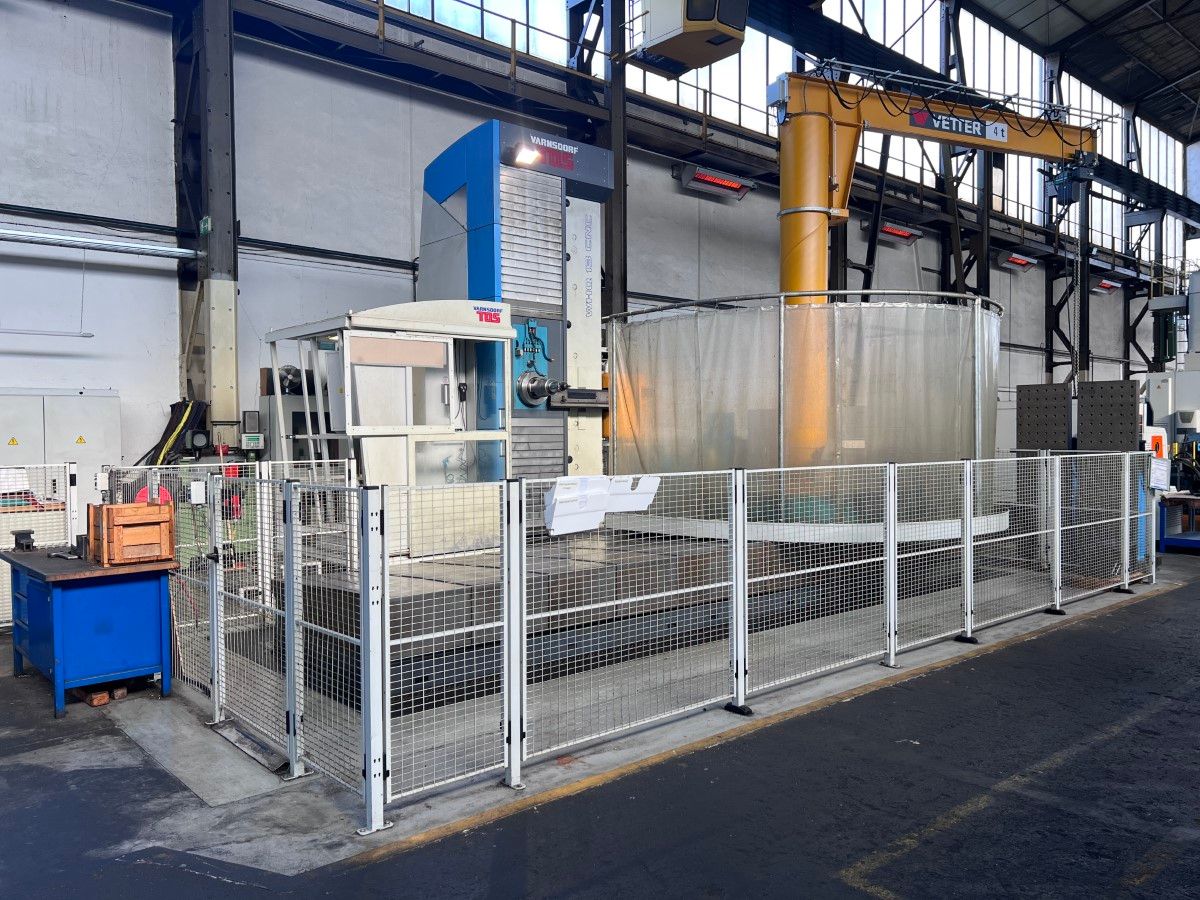

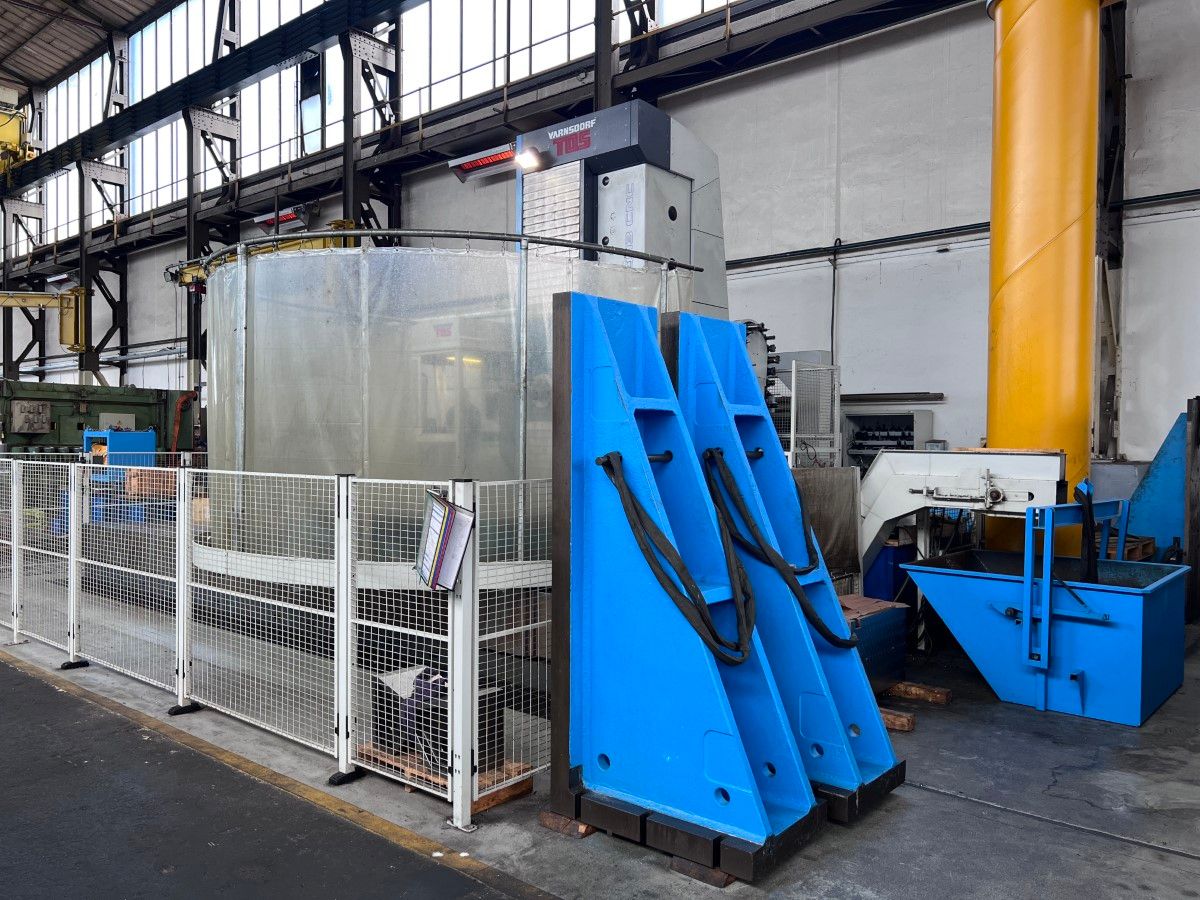

Table Type Boring and Milling Machine TOS WHN Q 13 CNC

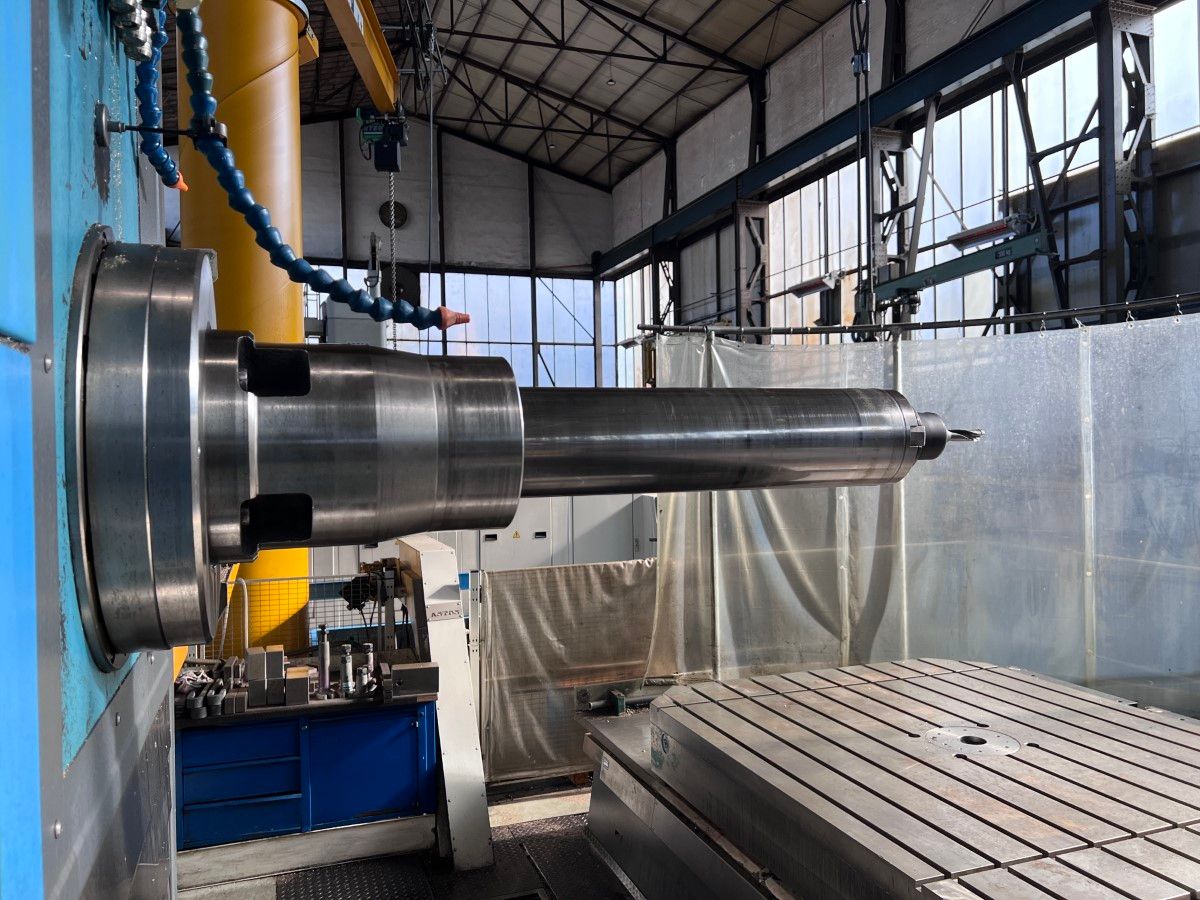

spindle diameter 130 mm
x-travel 3500 mm
y-travel 2500 mm
z-travel 1600 mm
spindle speed 3000 U/min

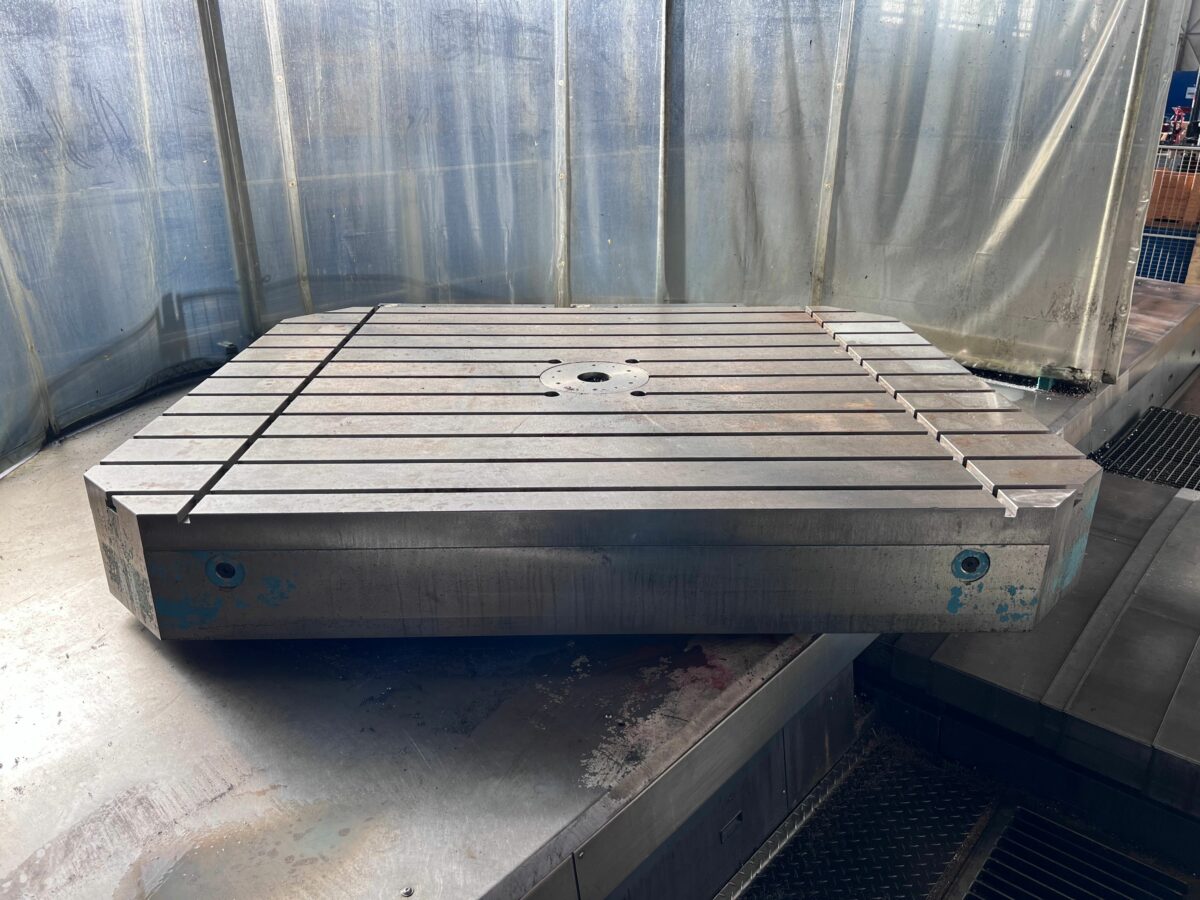

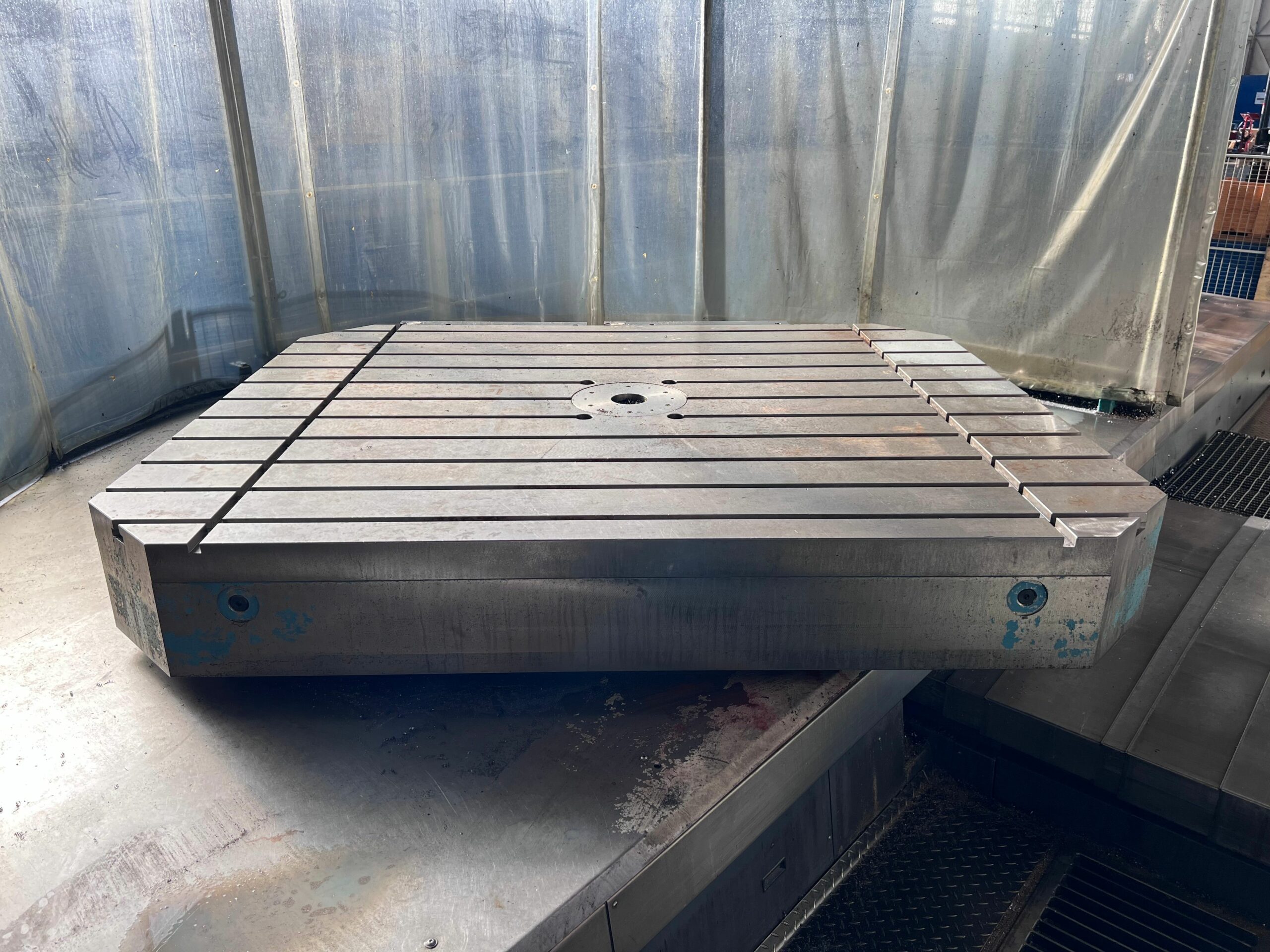

table surface area 1800 x 2200 mm
max. workpiece weight 25.000 kg
max. torque at the spindle 100% ED 1000 Nm
Power Capacity of main drive 46 kW
weight of the machine ca. 38 t

Equipment/accessories:
– controlled B-axis

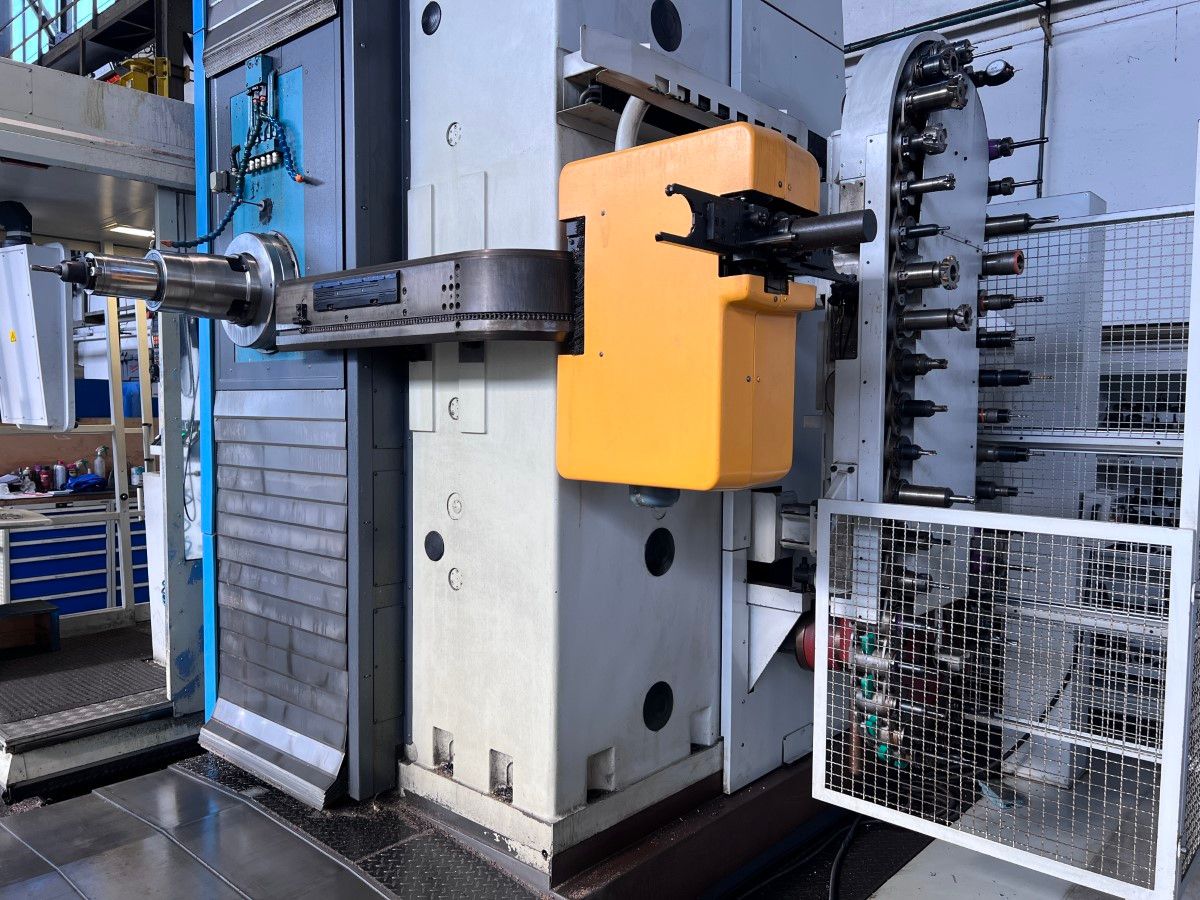

– 40-times tool changer/chain magazine
– belt filter system with high-pressure pump
– chip conveyor
– Heidenhain TS 460 workpiece measuring probe
– Milling head can be positioned automatically type HUI 50
– Movable operating platform Yp = 1600 mm, Zp = 600 mm
– Woerner central lubrication system
– Oil cooler Pfannenberg
– Documentation
