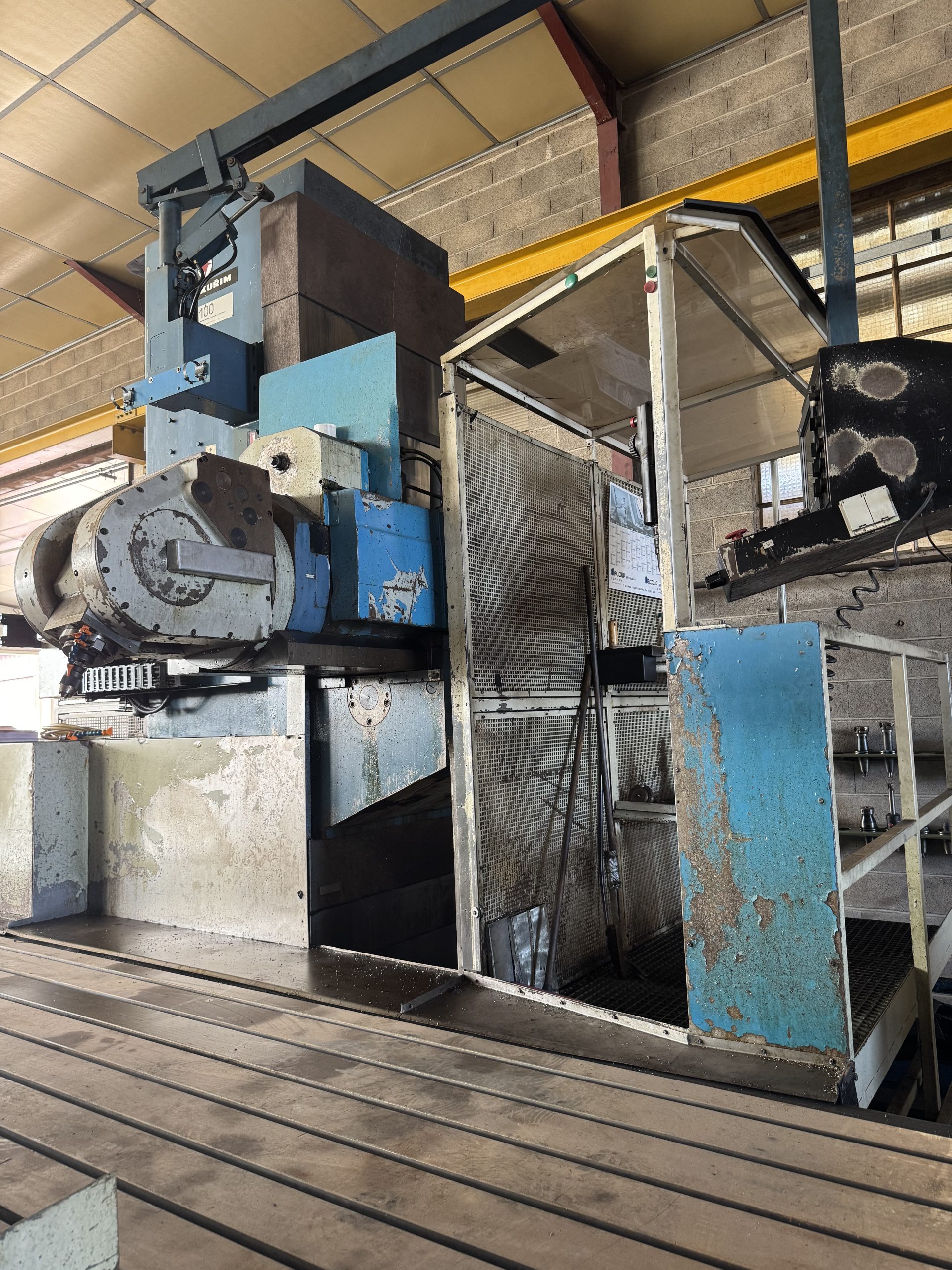

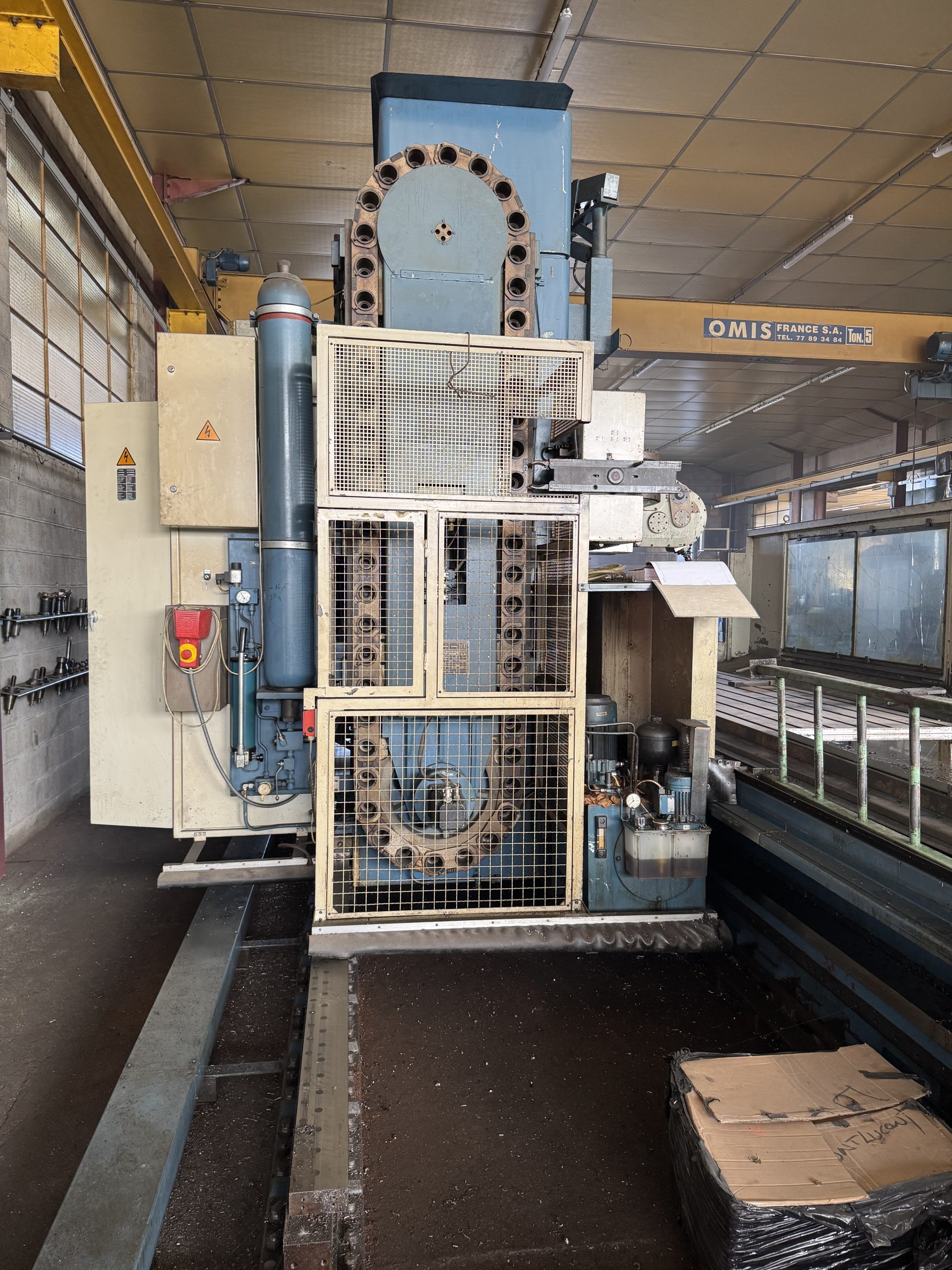

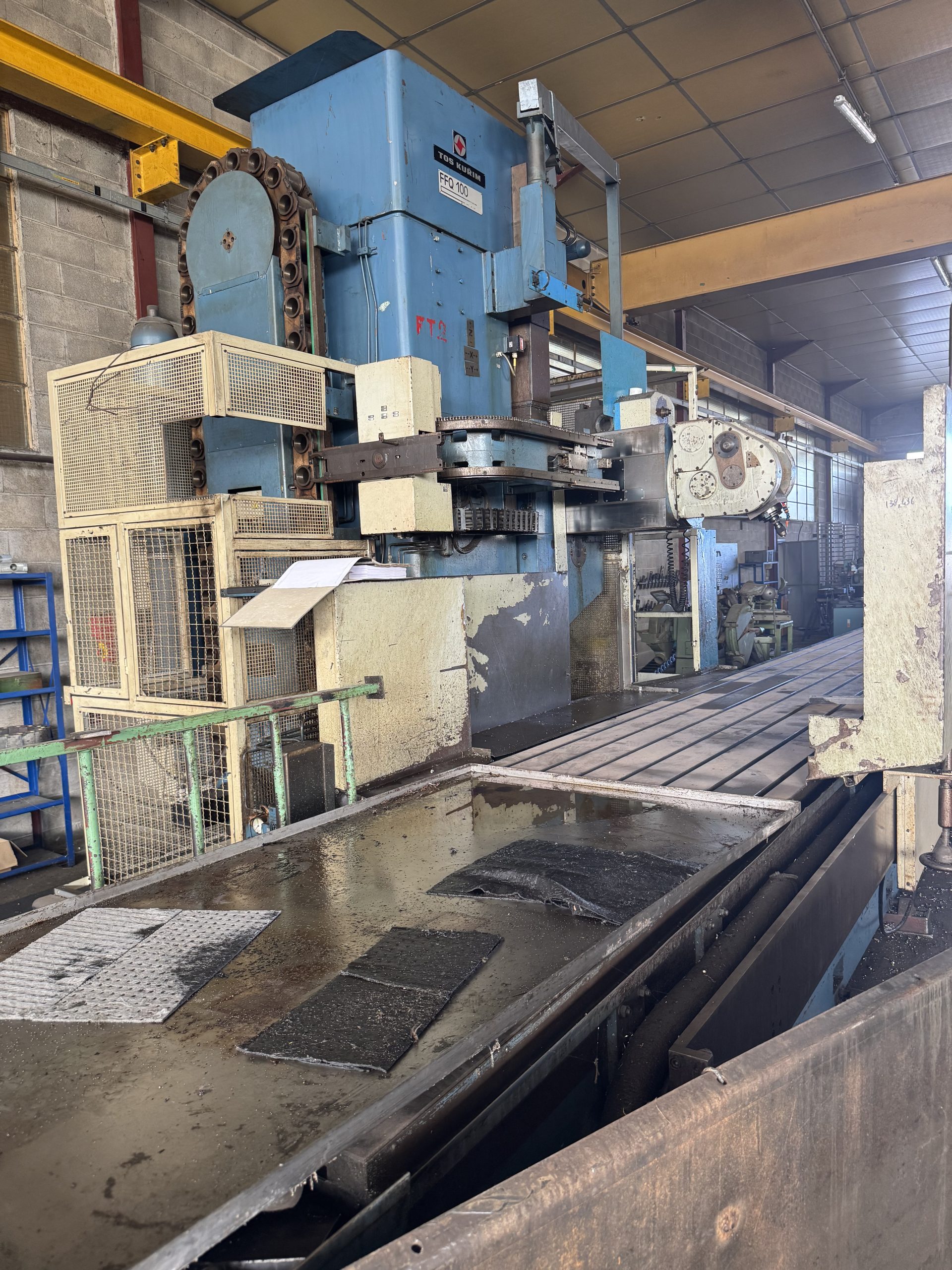

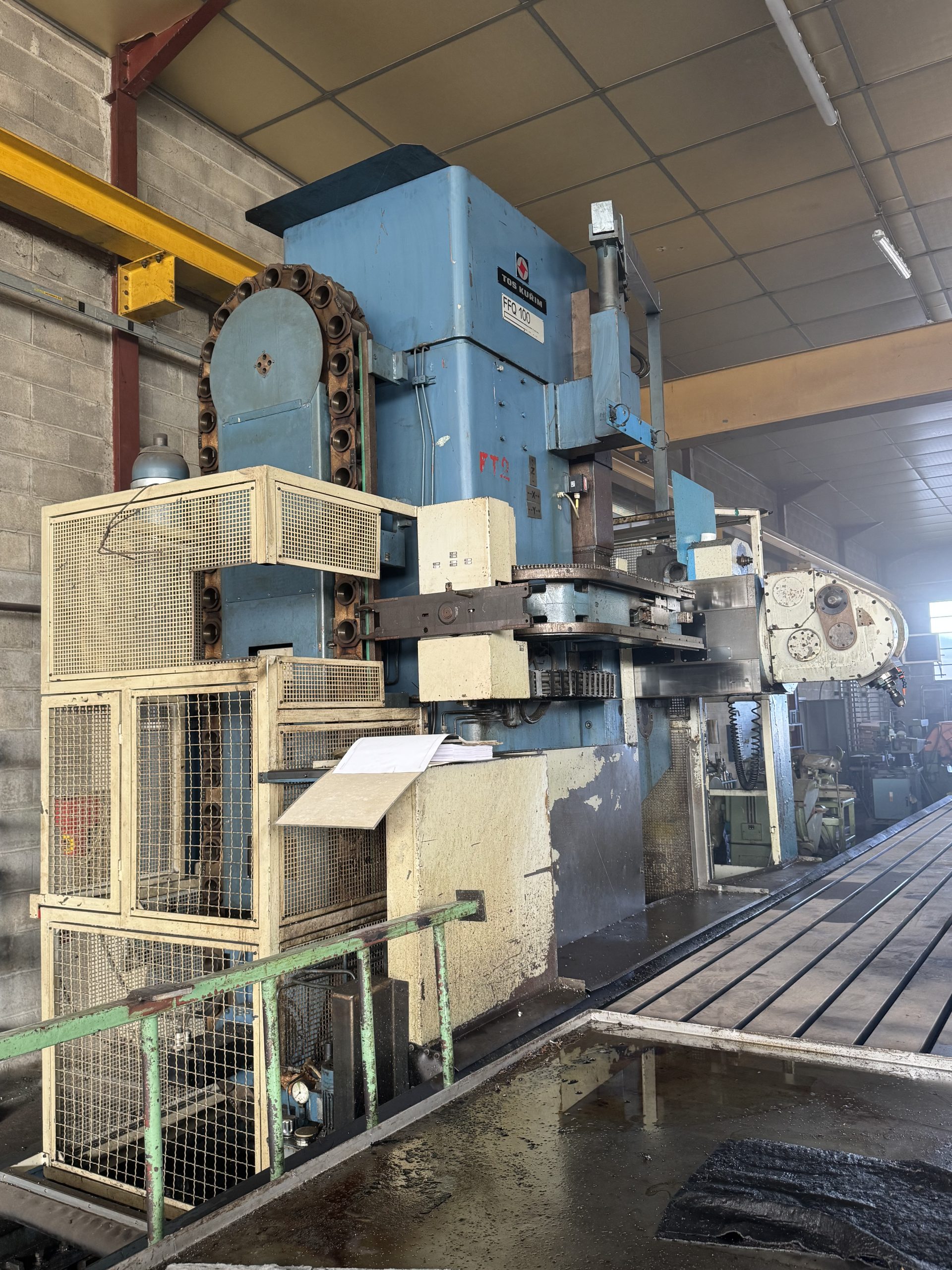

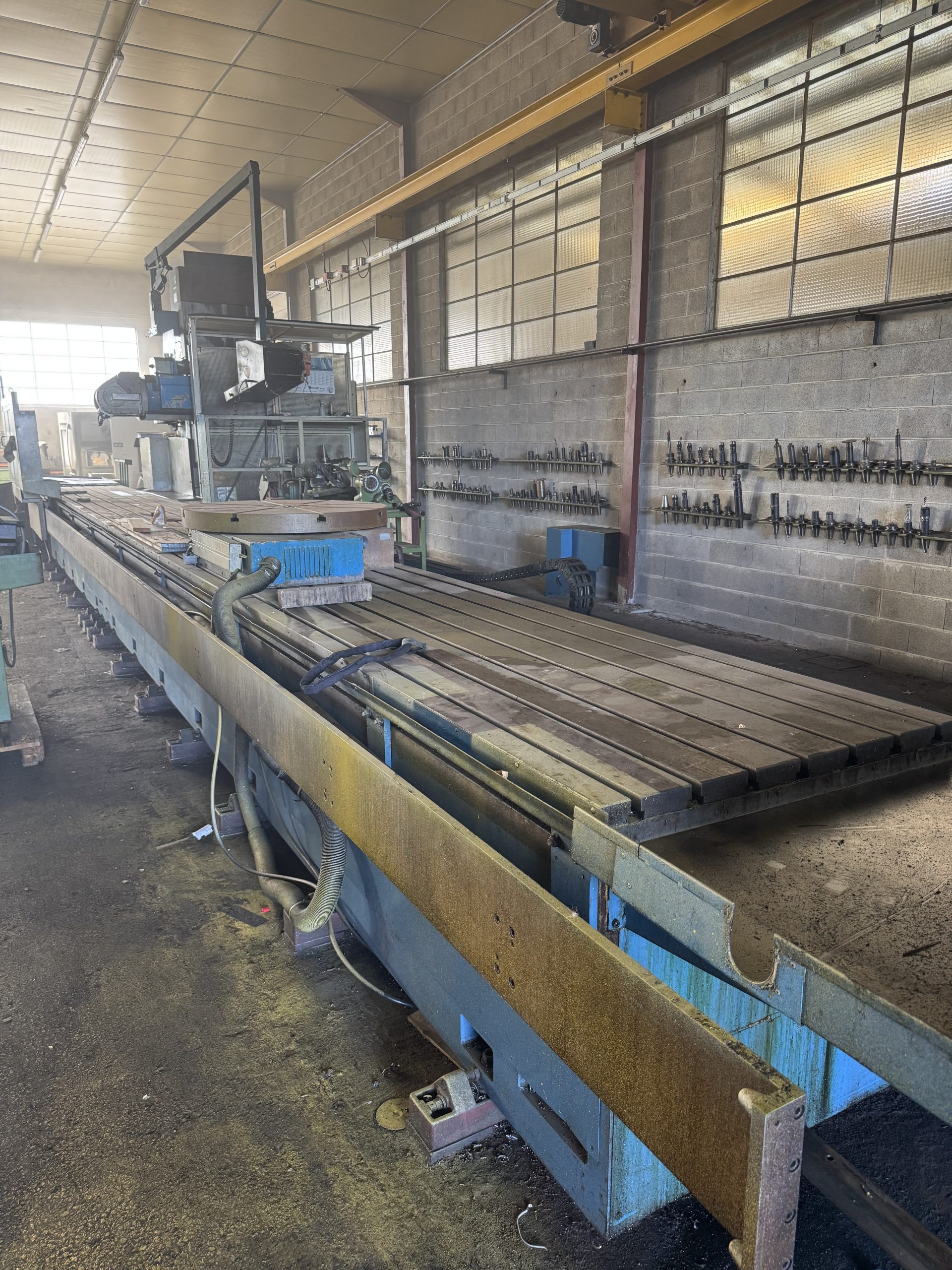

Milling machine TOS FFQ 100 KR/A 14

Maximum spindle torque: 900 Nm
Maximum feed force in X, Y, Z axes: 25,000 N
Maximum workpiece weight: 2,500 kg (at 1 m table length)
Number of T-slots on the table: 7
T-slot width × pitch: 22H7 × 140 mm

Horizonatl spindle:

Minimum distance between spindle axis and table surface: 275 mm

Maximum distance between spindle axis and table surface: 1,775 mm

Vertical spindle:

Minimum distance between spindle face and table: 50 mm

Maximum distance between spindle face and table: 1,550 mm

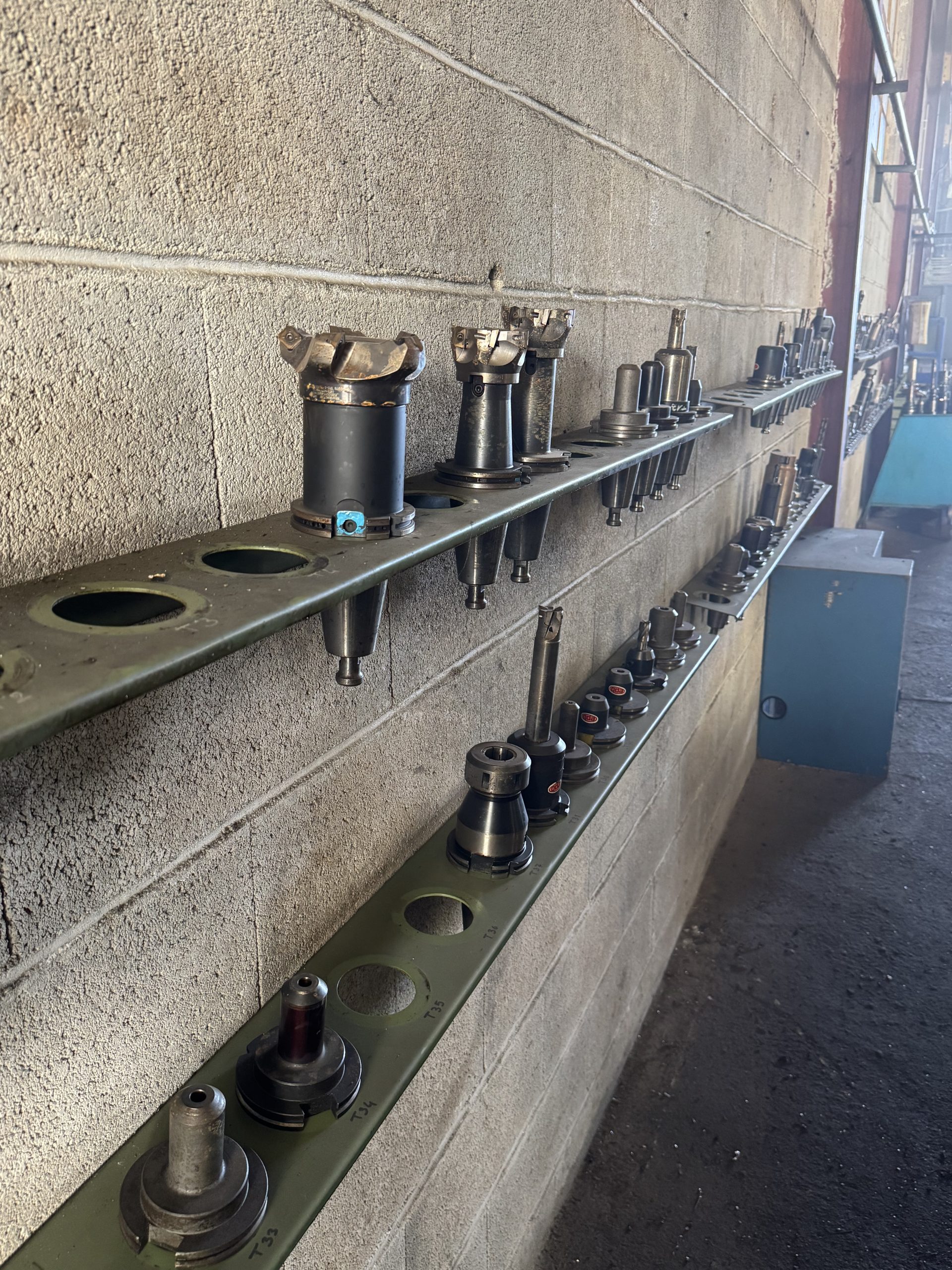

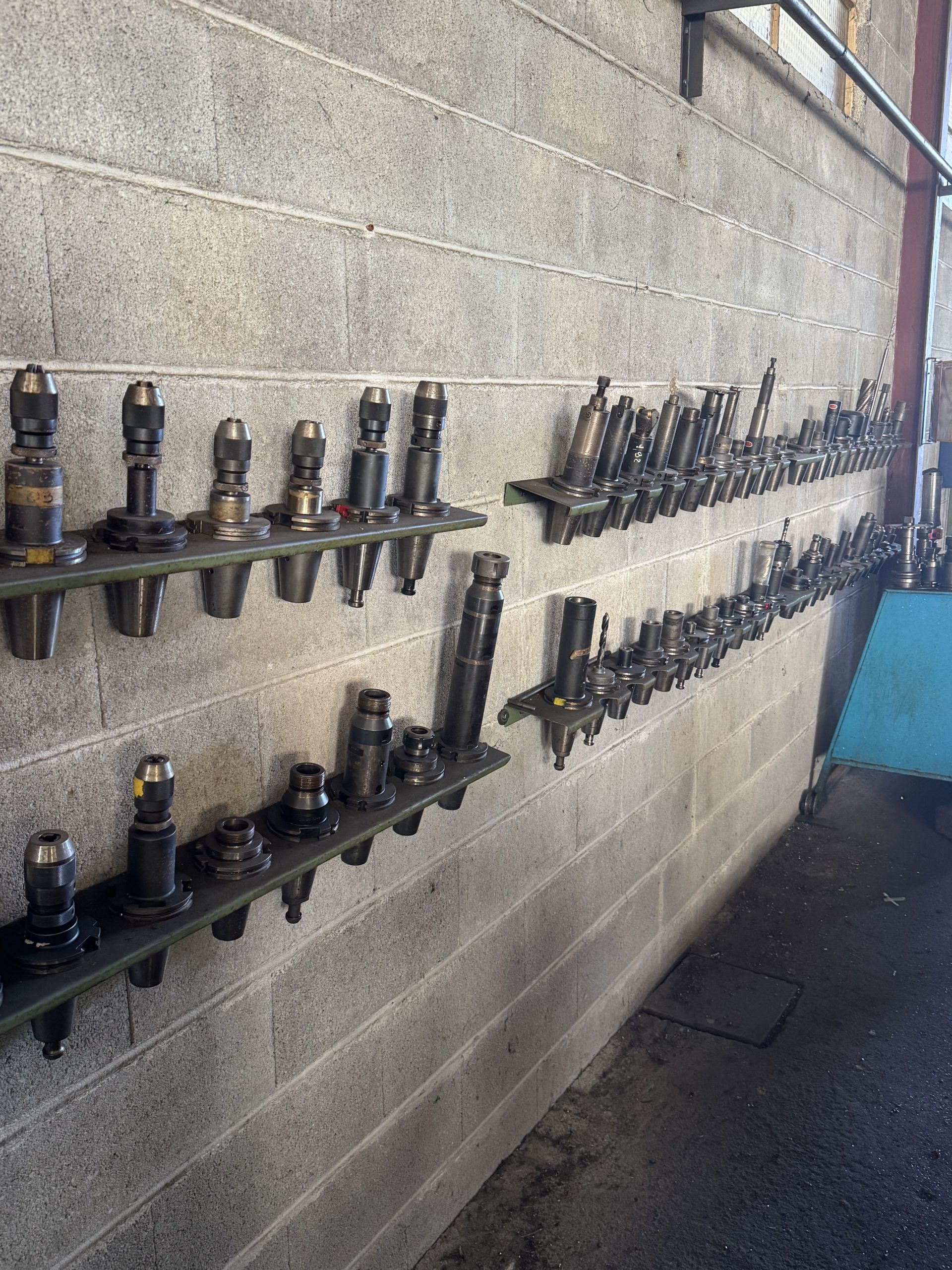

Spindle taper: ISO 50
Spindle diameter: 85 mm
Tool clamping force in spindle: 16,500 N

Floor space required: 73 m²

Total machine weight: approx. 34,000 kg

Electrical cabinet weight: approx. 820 kg

Electrical specifications:

Voltage: 50 Hz (3 × 400 V)

Total power consumption: 100 kVA

Hydraulic unit weight (without oil): 150 kg
