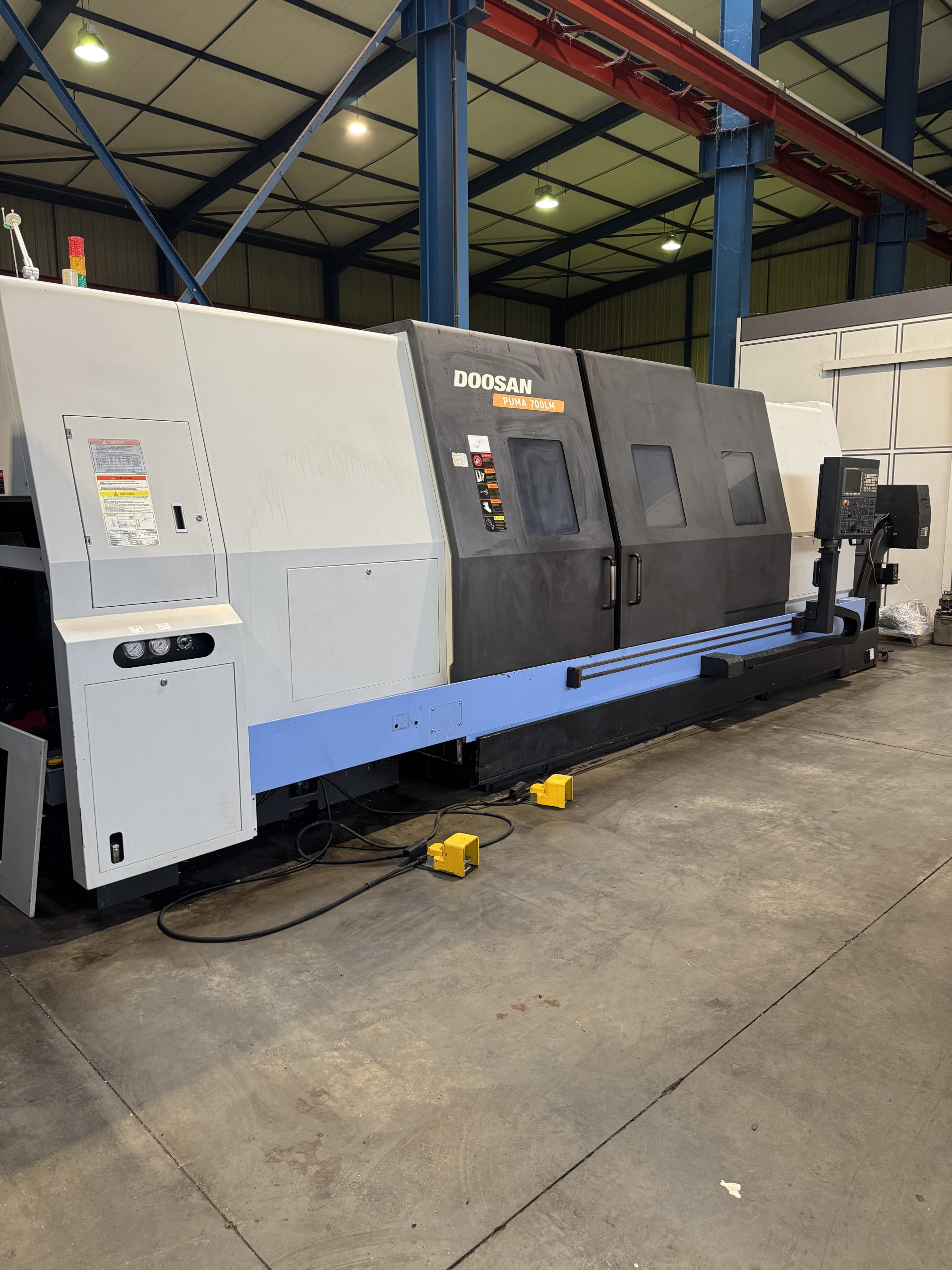

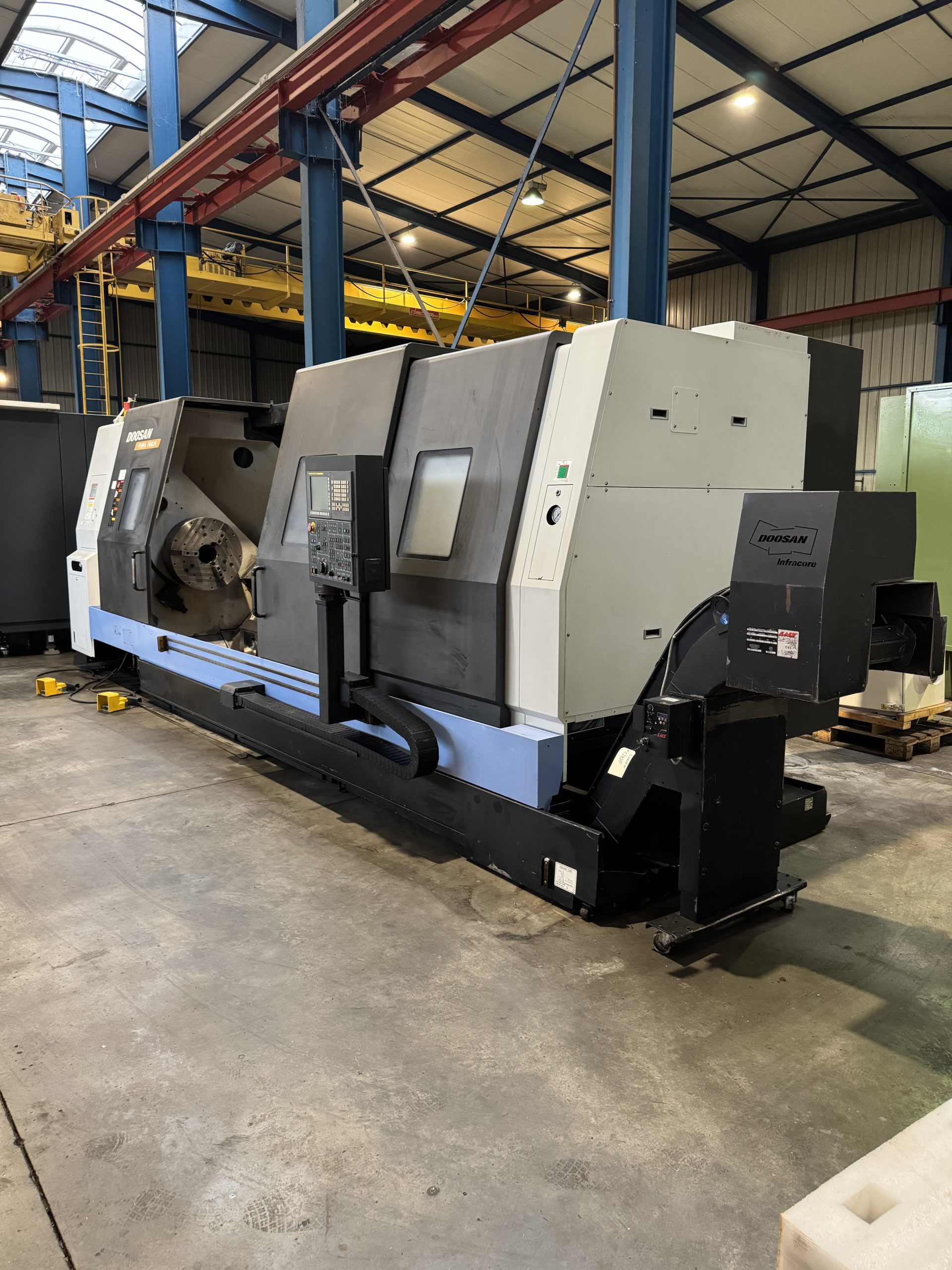

CNC lathe Doosan Puma 700 LM

CNC lathe Doosan Puma 700 LM

ReferenceC2820
Model700 LM
Control systemFANUC 32i A
Operating Hoursspindle 8 541h
Year of manufacture2011
Swing over bed750 mm
swing over carriage800 mm
Max passage diameter1030 mm
stroke X axis471 mm
stroke Z axis3235 mm
Rotation speed range3000 rpm
Weight22 t
Total power62.2 kw

Spindle hours: 8 541h

Turning length 3200 mm

Spindle bore 181 mm

bar capacity 164 mm

Axis C 360°

spindle speed 3-1500 rpm

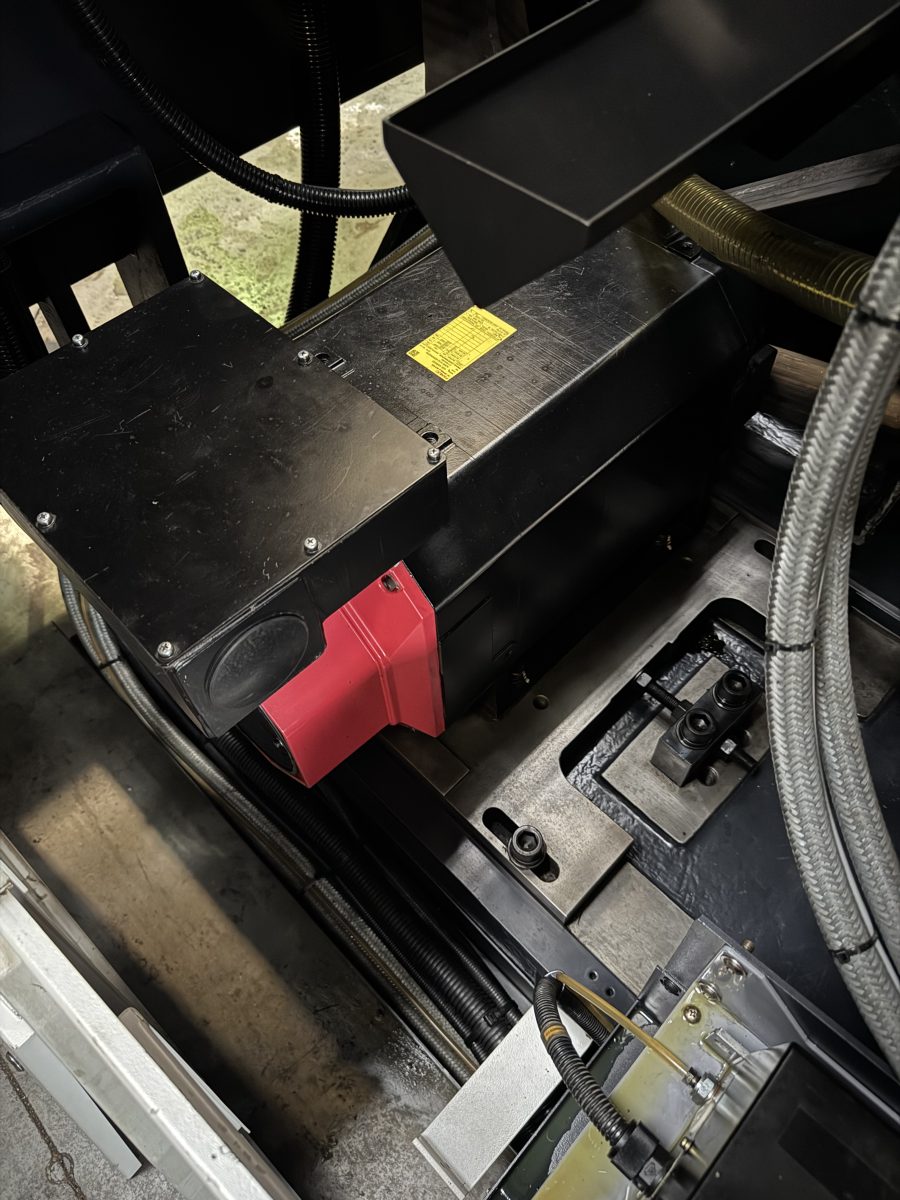

Spindle motor 45 kW

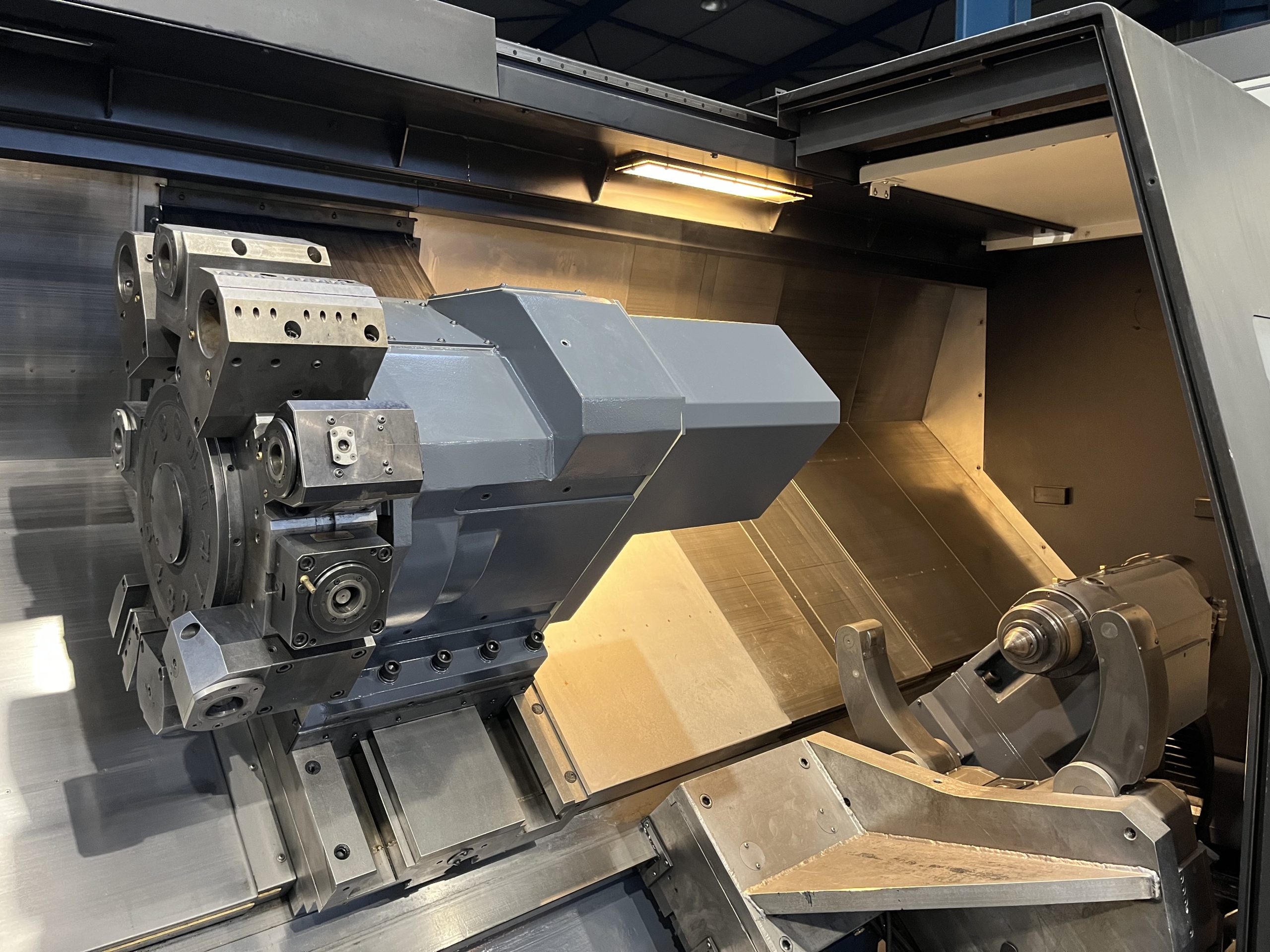

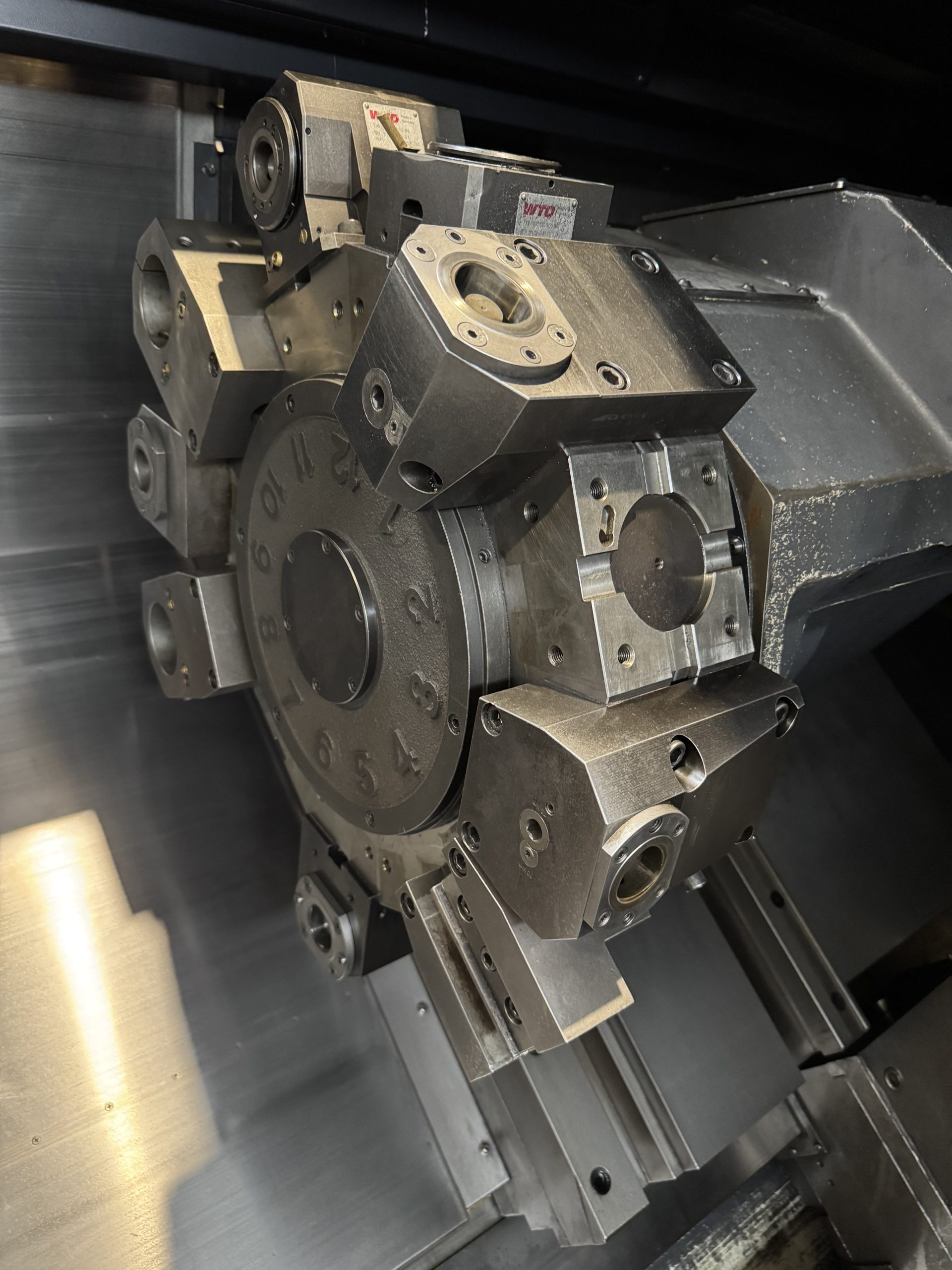

Turret 12 / 6 BMT 85

Accessories :

Hydraulique tailstock
Tool holders Sandvik Capto C6 – 4 pcs
Hydraulique chuck Ø630 mm SMW Autoblock

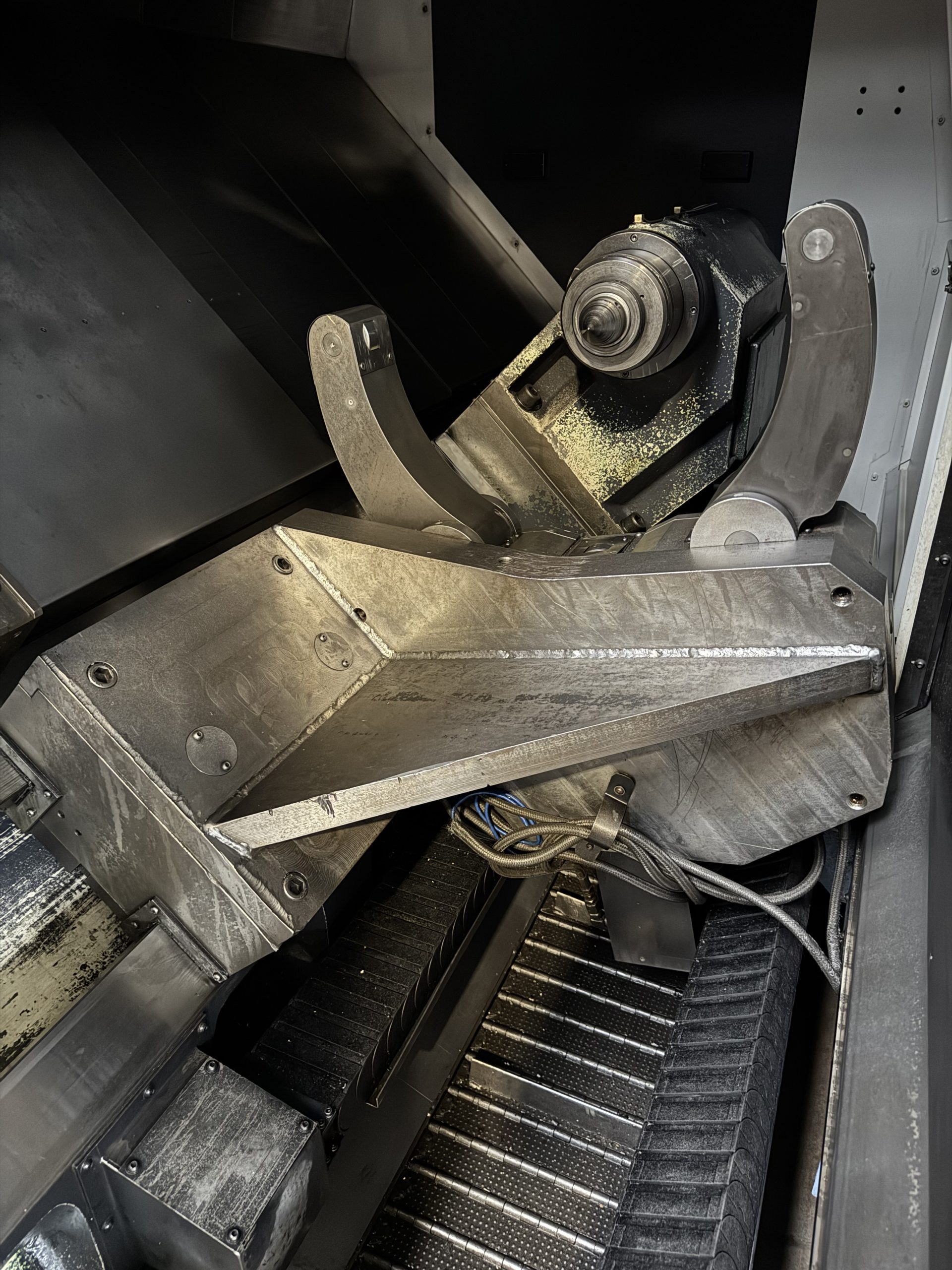

Hydraulique steady rest (min. 110 mm, max. 530 mm)

Videos:

https://youtube.com/shorts/OIrTELG49Tw

https://youtu.be/gTyO0zSvzU8

https://youtube.com/shorts/AX-ZLgVMTeY

https://youtu.be/MKiGElVEPLw

https://youtu.be/nSaBKRuP364

Data sheetObtenir une offre
