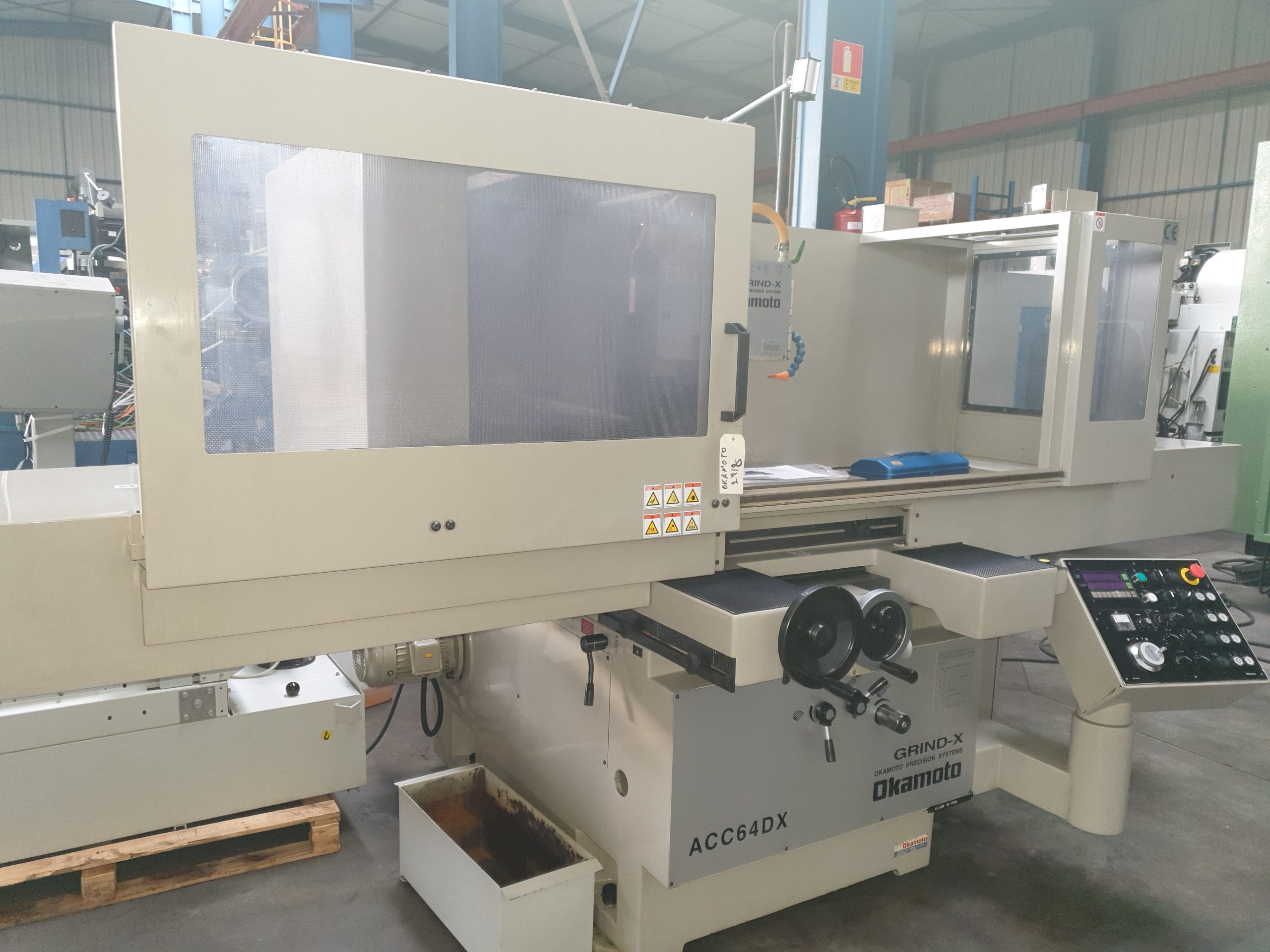

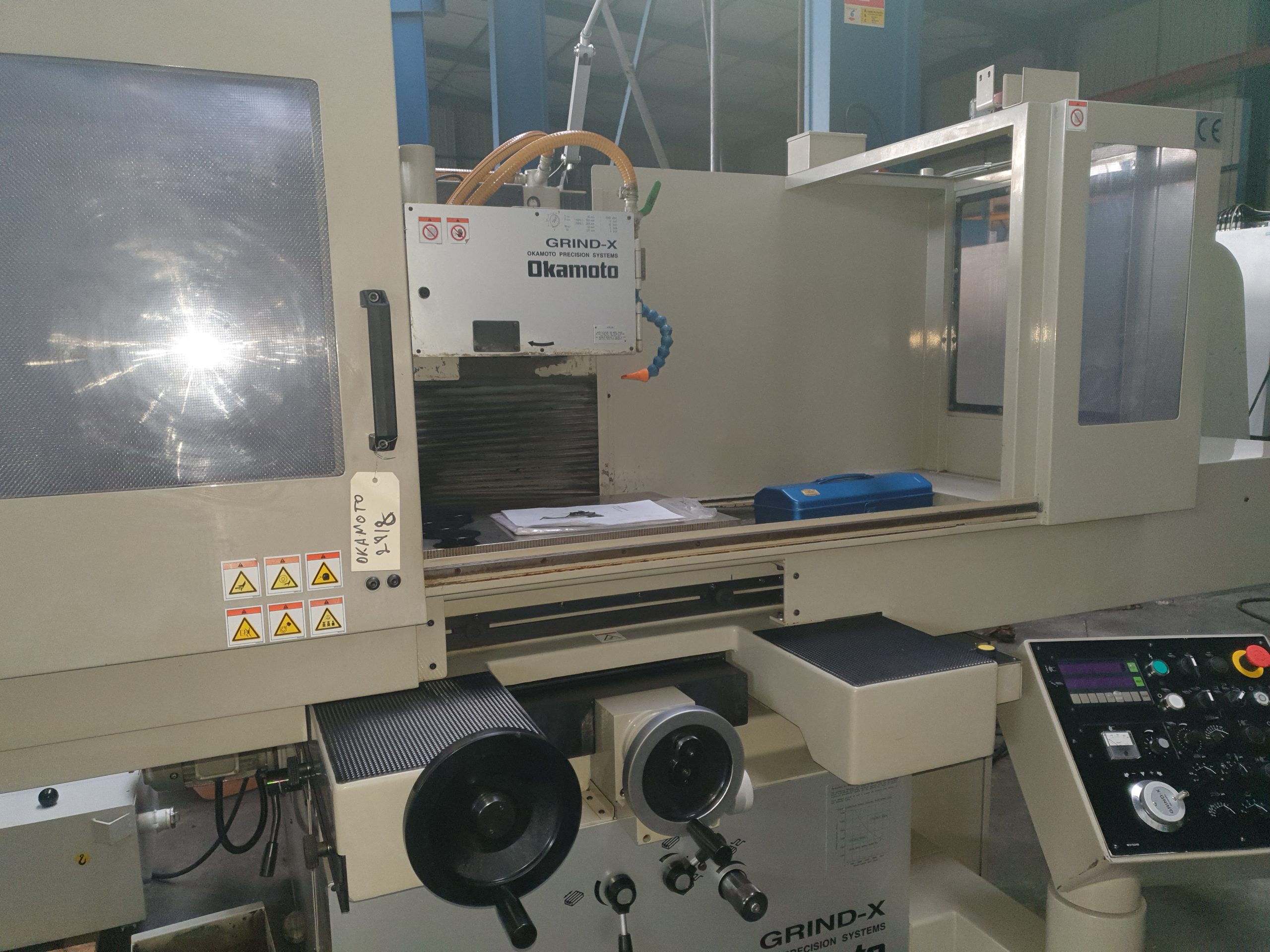

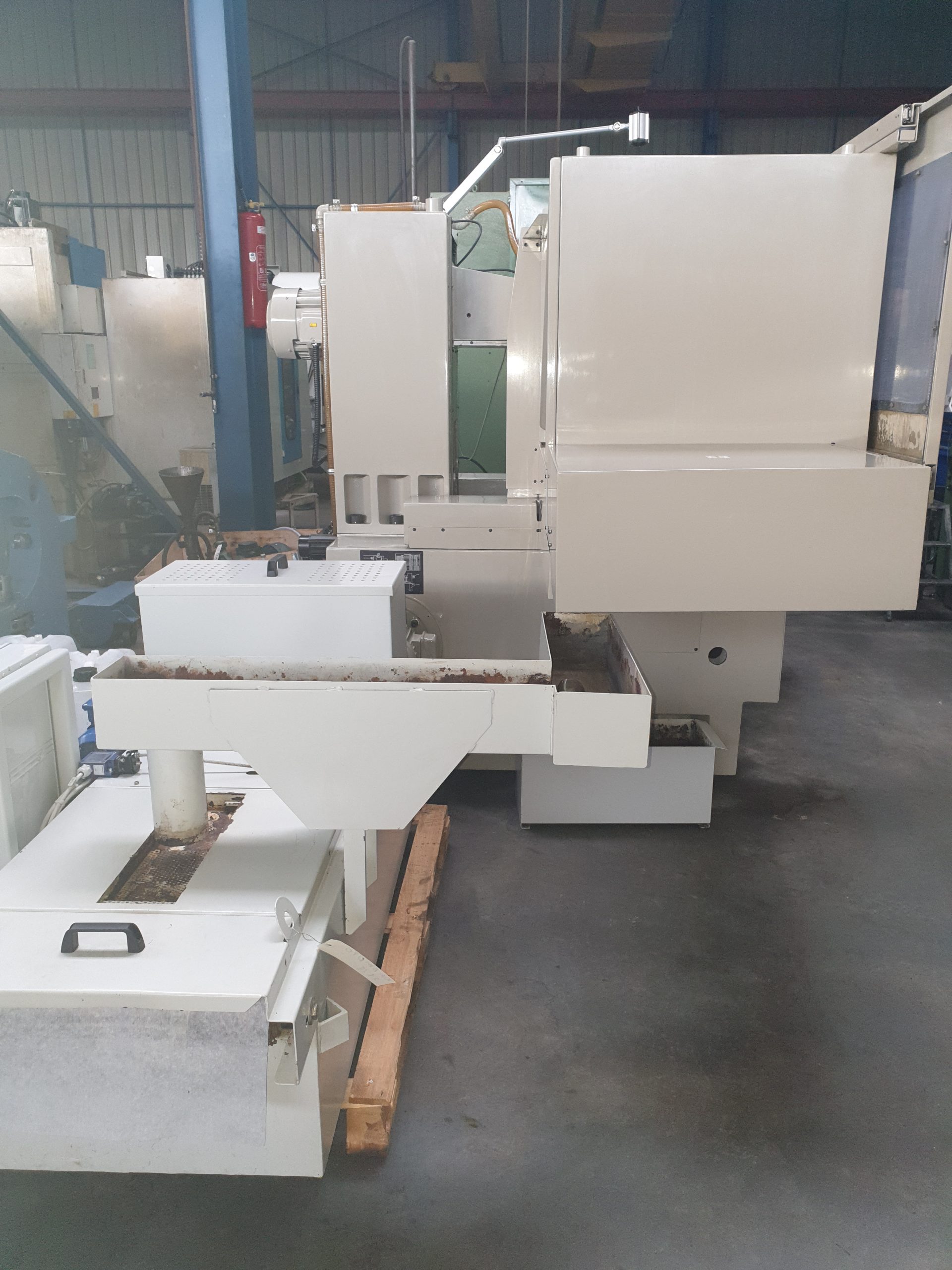

Grinding machine OKAMOTO ACC 64DX

Grinding machine OKAMOTO ACC 64DX

TypeGrinding machine
ReferenceC2818
ModelACC 64DX
Year of manufacture2017
Table dimension650 x 400 mm
Load capacity420
rotation speed range1500/1800 tr/min
Max width to be ground400
Max lenght to be ground650
Grinding wheel dimensions355/305, 38 mm
Chuck type and diameter600 x 400 x 85 mm
Weight3200
Dimensions2737 x 2203 x H 1908 mm

Distance from table to wheel:

if wheel Ø 355 mm: 22.5-322.5 mm

if wheel Ø305 mm: 47.5-347.5 mm

Data sheetMore information
