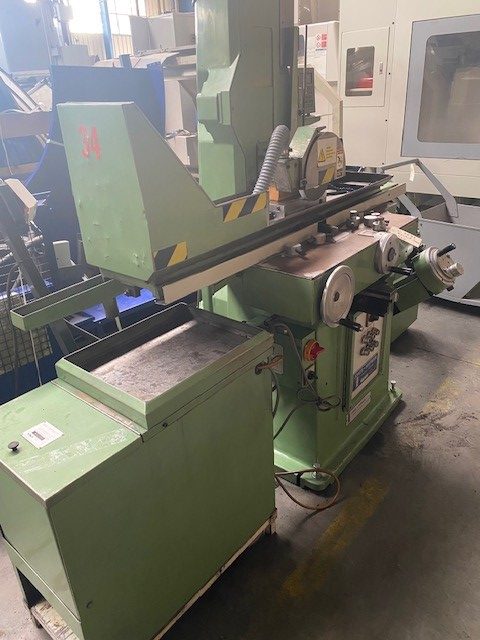

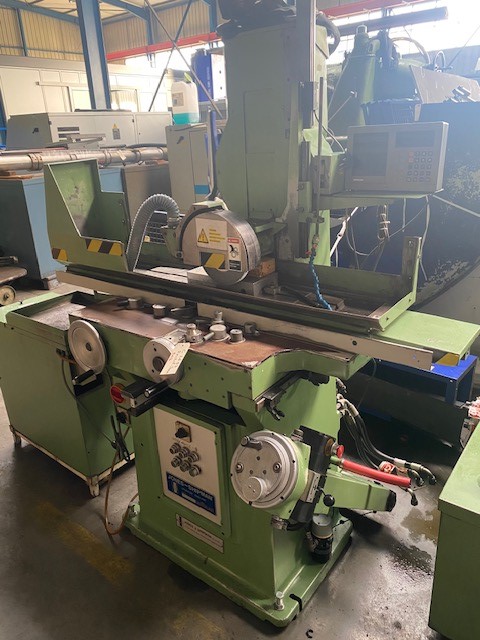

Grinding JONES & SHIPMAN 1400 LAR

Vertical movement (max) 519
Wheel Ø 2400 m/s
Distance between wheel and the table – 392
Table
longitudinale movement – hydraulic 674
Speed (par minute) 2-21 m
Graduations 0,001
Motor

Wheel head motor: 2.25 kW

Hydraulic pump motor: 0.5 kW

Grinding head positioning motor: 0.18 kW

Hydraulic system operating pressure: 9.6 bar

Hydraulic tank capacity: 55 liters

Shipping dimensions (approx.): 8.5 m³

Current magnetic chuck: 150 x 300 mm
