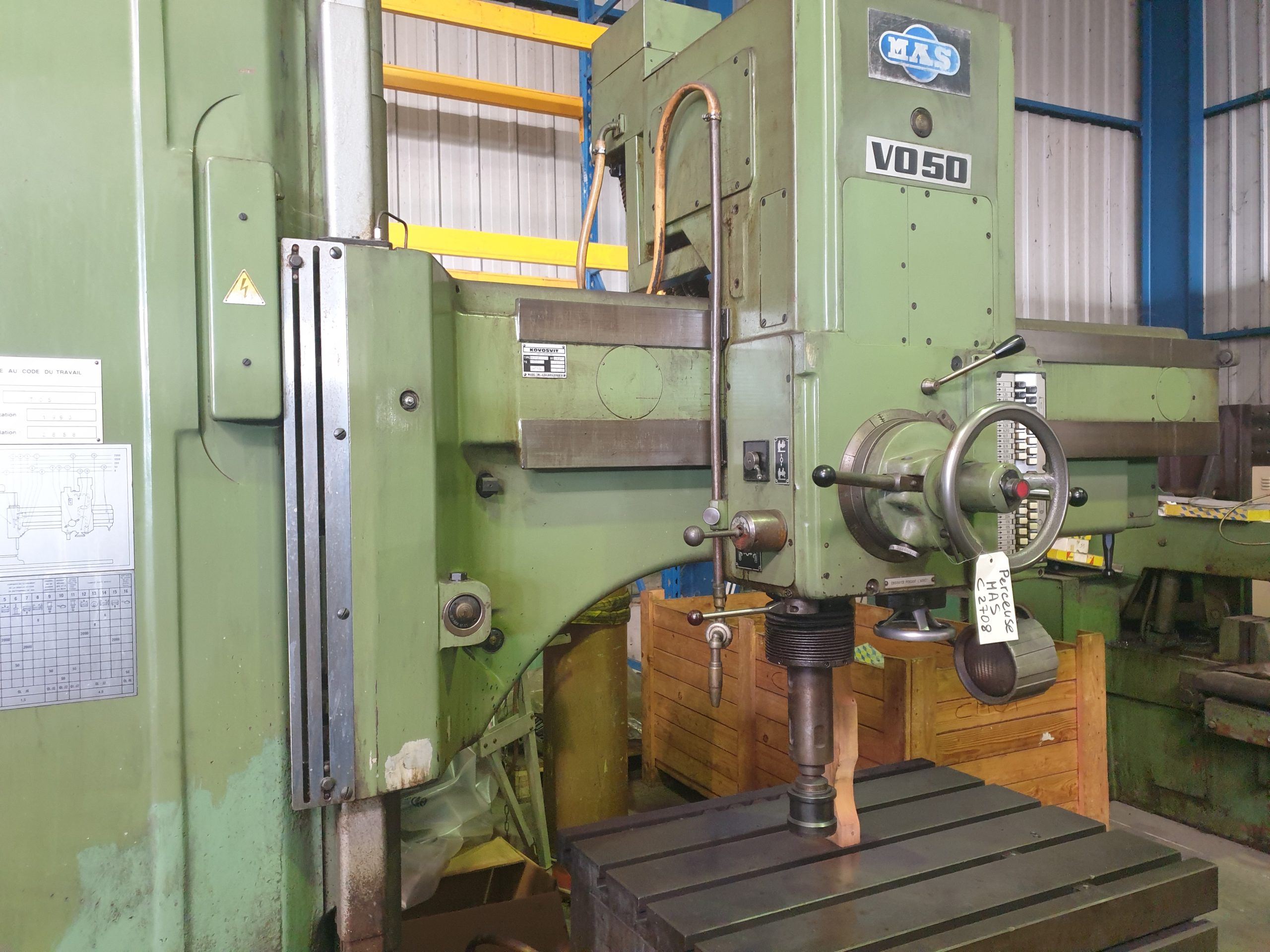

Drilling MAS VO 50

Drilling MAS VO 50

ReferenceC2708
ModelVO 50
Drilling capacityØ in steel 50 mm, grey cast iron 60 mm
Spindle stroke310 mm
Weight4300 kg
Dimensions3100 x 1120 x 3396 mm

Maximum spindle-to-guide distance: 1600 mm

Vertical arm travel: 875 mm

Carriage travel on arm: 1280 mm

Arm rotation: 180°

Number of spindle speeds: 16

Maximum spindle torque: 31,000 Nm

Mounting surface: 1820 x 986 mm

Data sheetObtenir une offre
perceuse VO 50 perceuse VO 50
