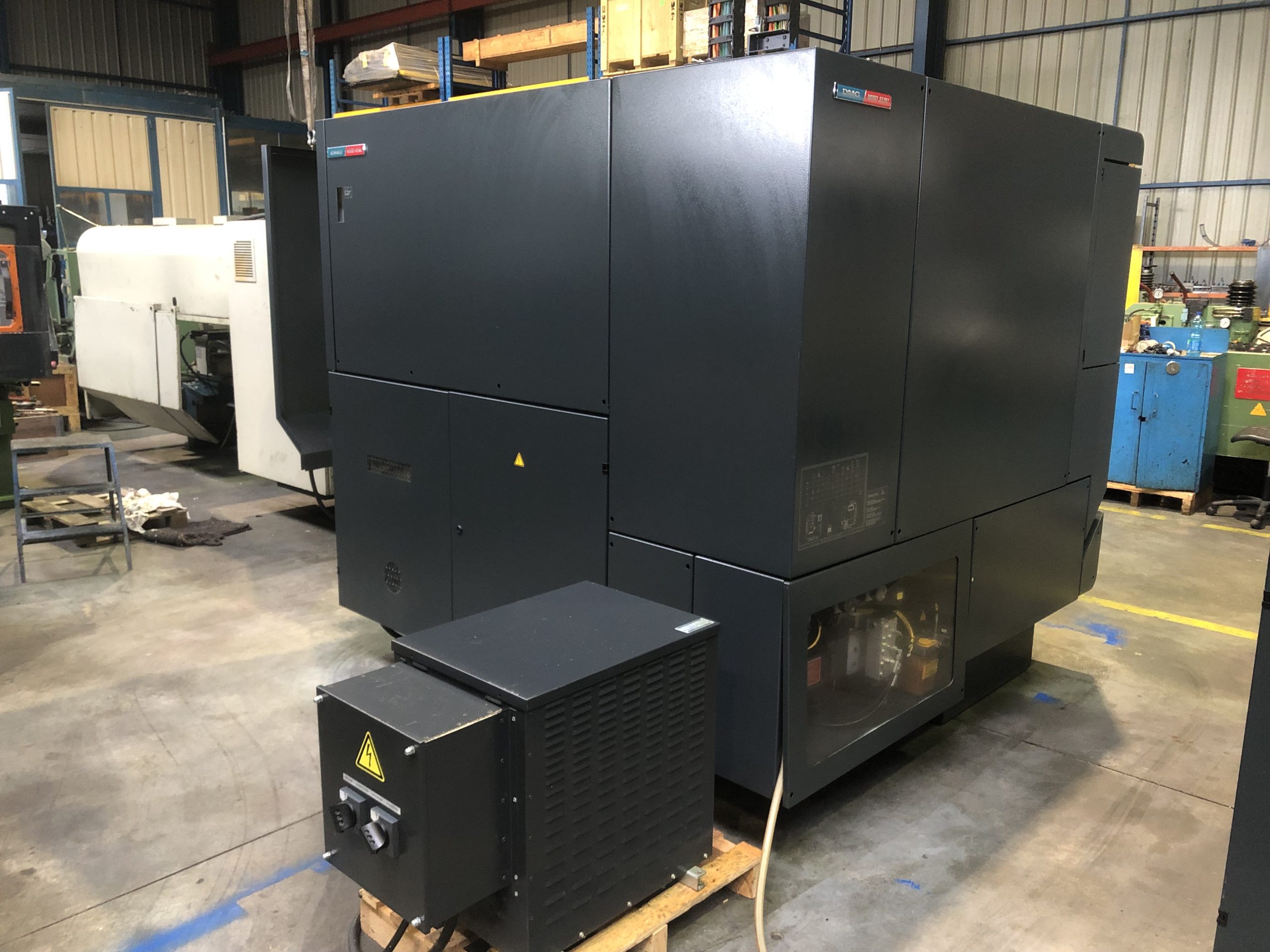

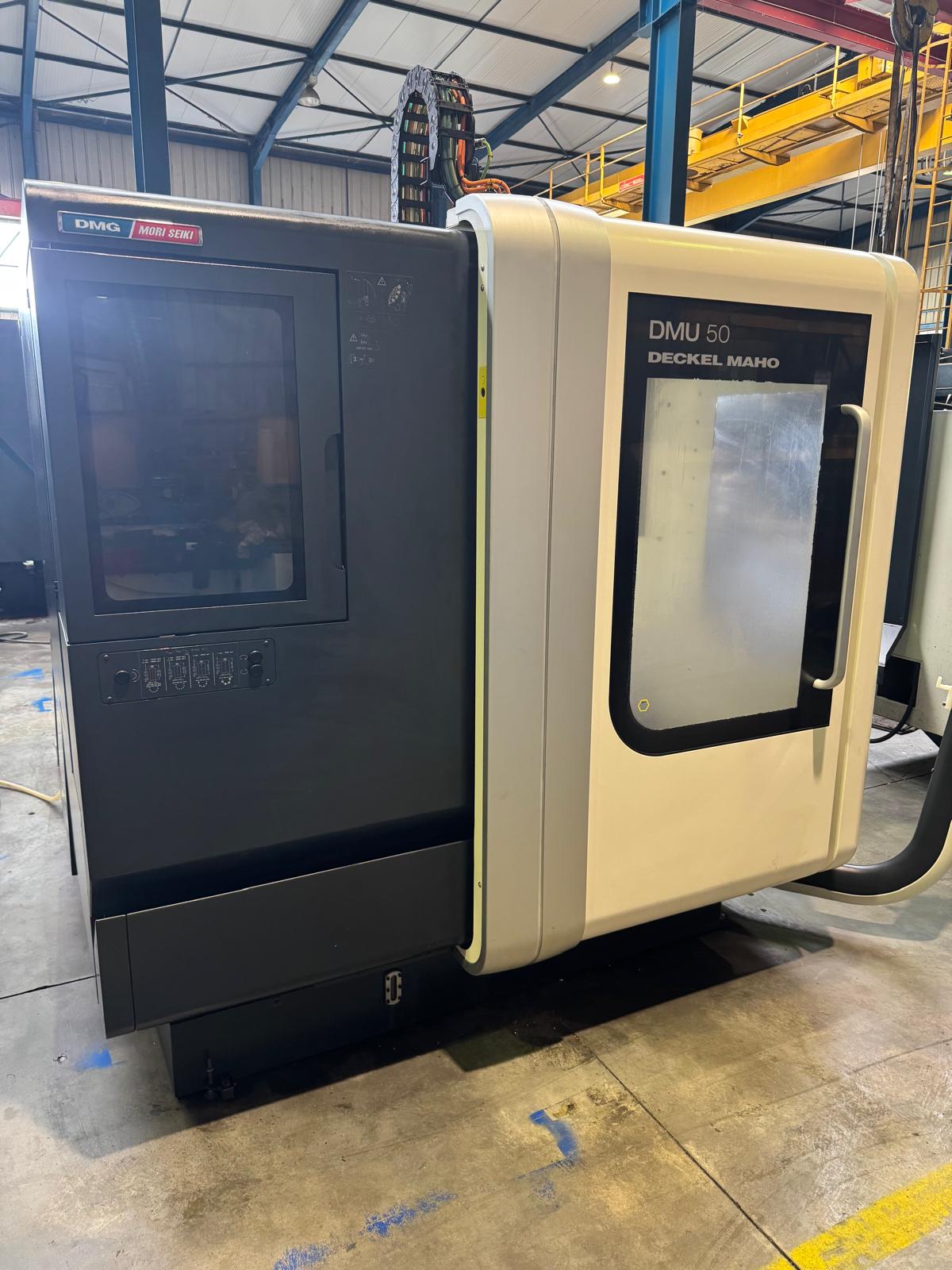

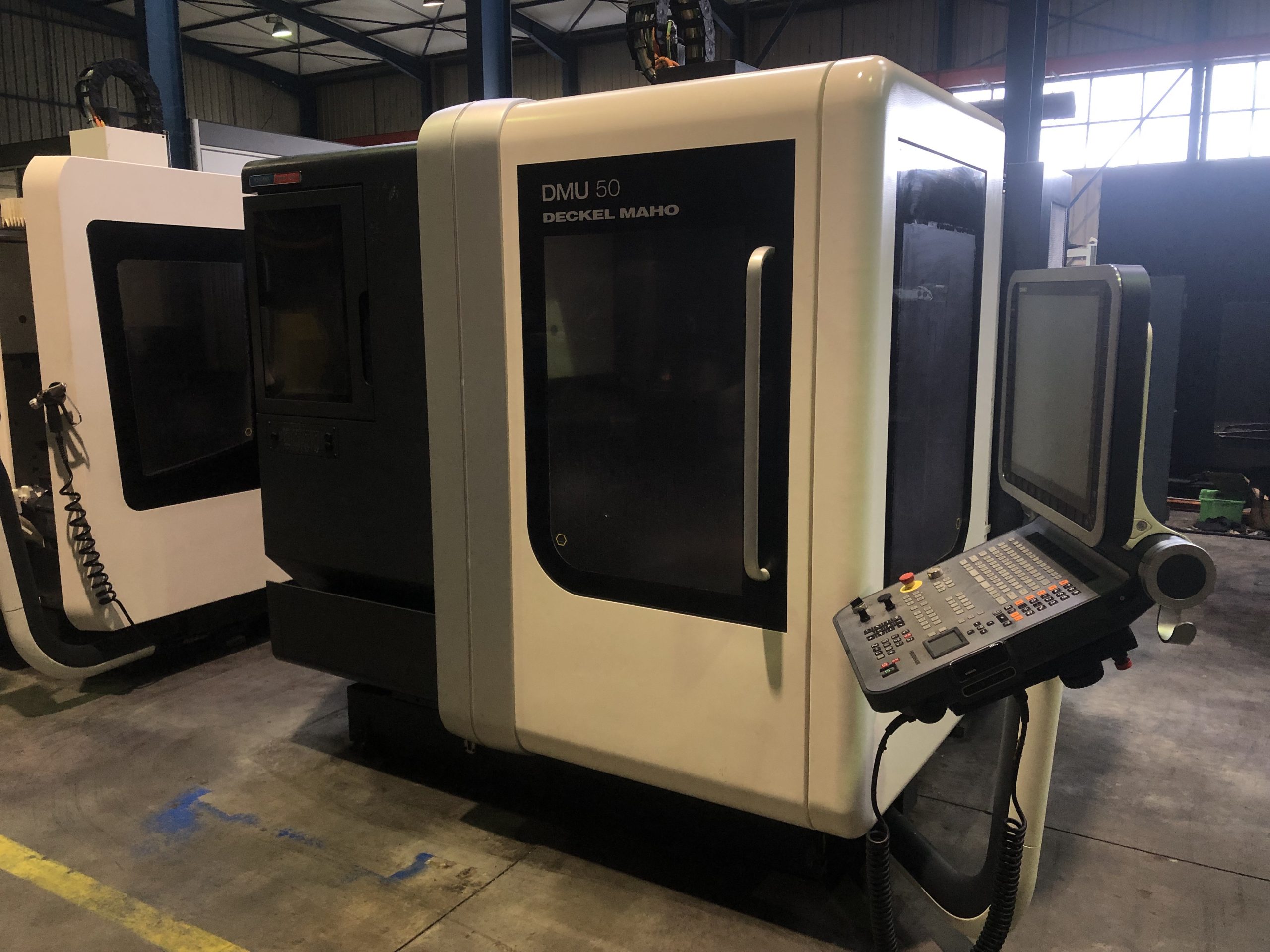

DMU 50 Vertical Machining Center (5 Continuous Axes)

DMU 50 Vertical Machining Center (5 Continuous Axes)

ReferenceC2681

ModelDMU 50

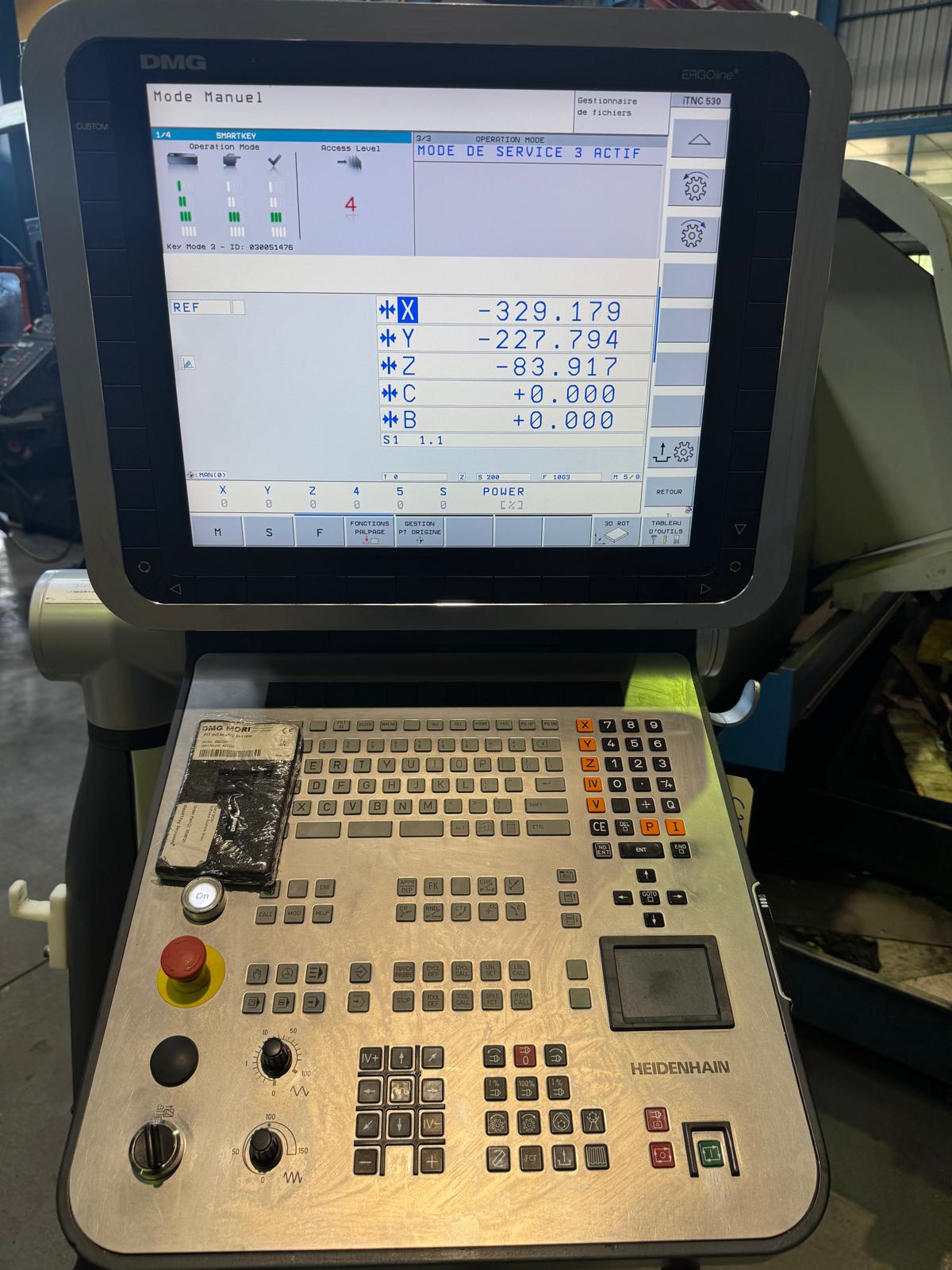

Control systemHeidenhain iTNC 530

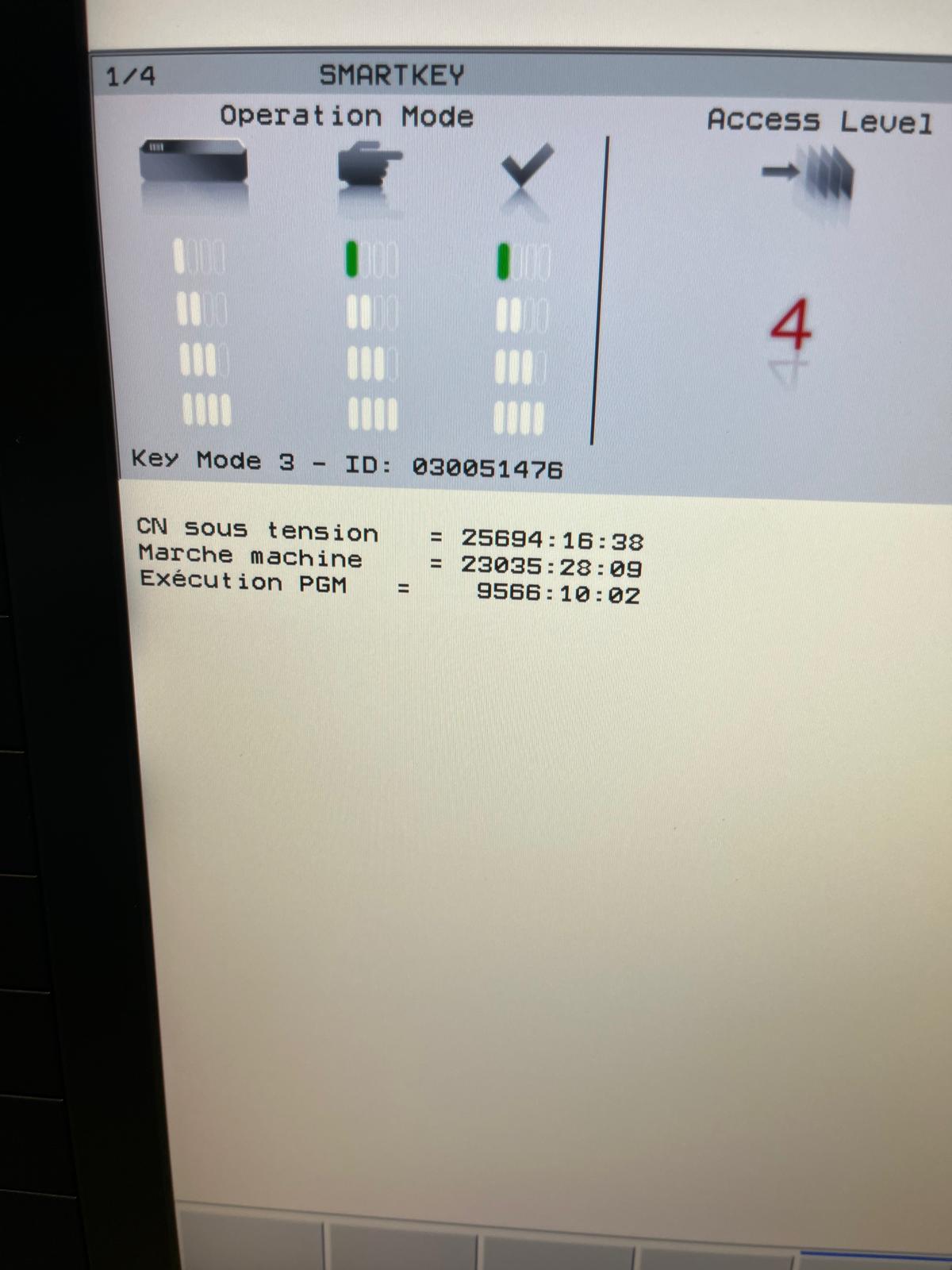

Operating Hoursspindle 9566h

Year of manufacture2013

Table dimension (C axis ) Ø 630 x 500 mm

stroke X axis500 mm

stroke Y axis450 mm

stroke Z axis400 mm

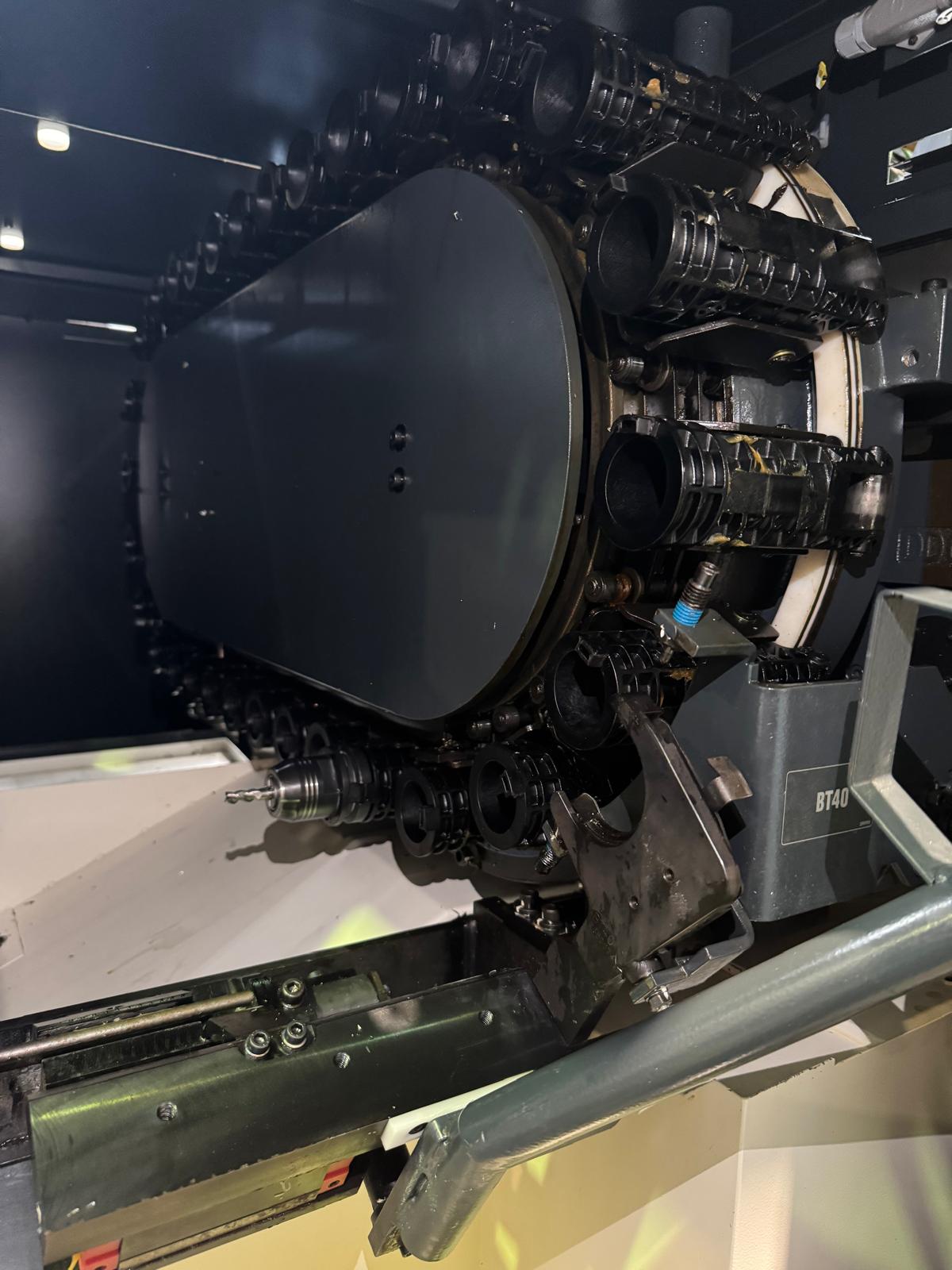

Tools number/type30 tools BT40

Weight5530 kg

Dimensions3140 x 2277 x h 2500 mm

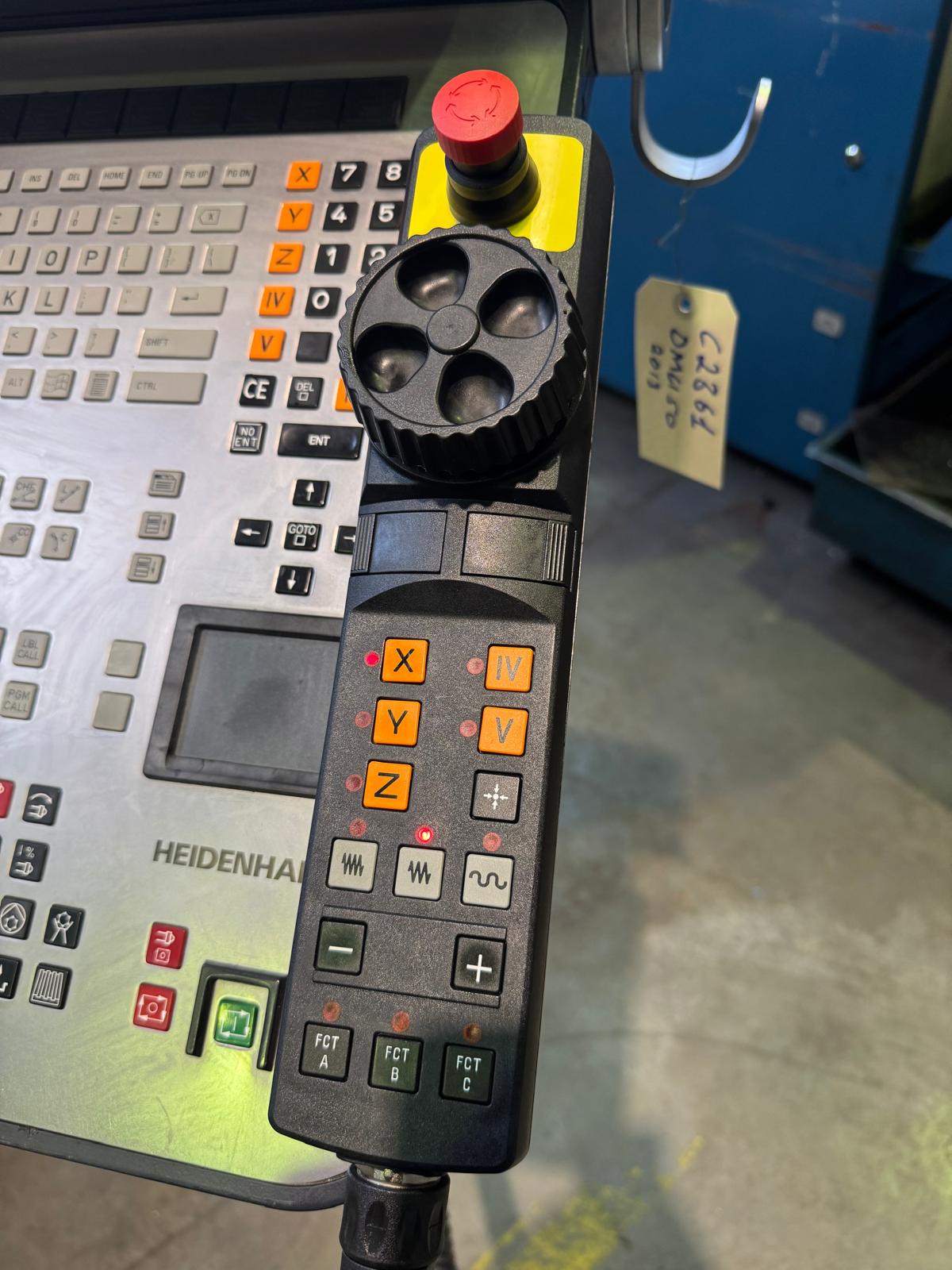

Electronic handwheel: HR 410

Milling Head:

Speed: 20 – 14,000 rpm

Motor power: 18.9 kW

Tool holder: BT40

Feed rate:

Continuous feed speed up to 24,000 mm/min

Rotary tilting table (C-axis):

Max rotation speed: 20 rpm

Max load at center on B-axis:

300 kg

Max rotation speed B-axis:

20 rpm

C-axis: 360°

B-axis: -5° / +110°

Complete documentation

Coolant gun

No chip conveyor

No through-spindle coolant

External coolant only

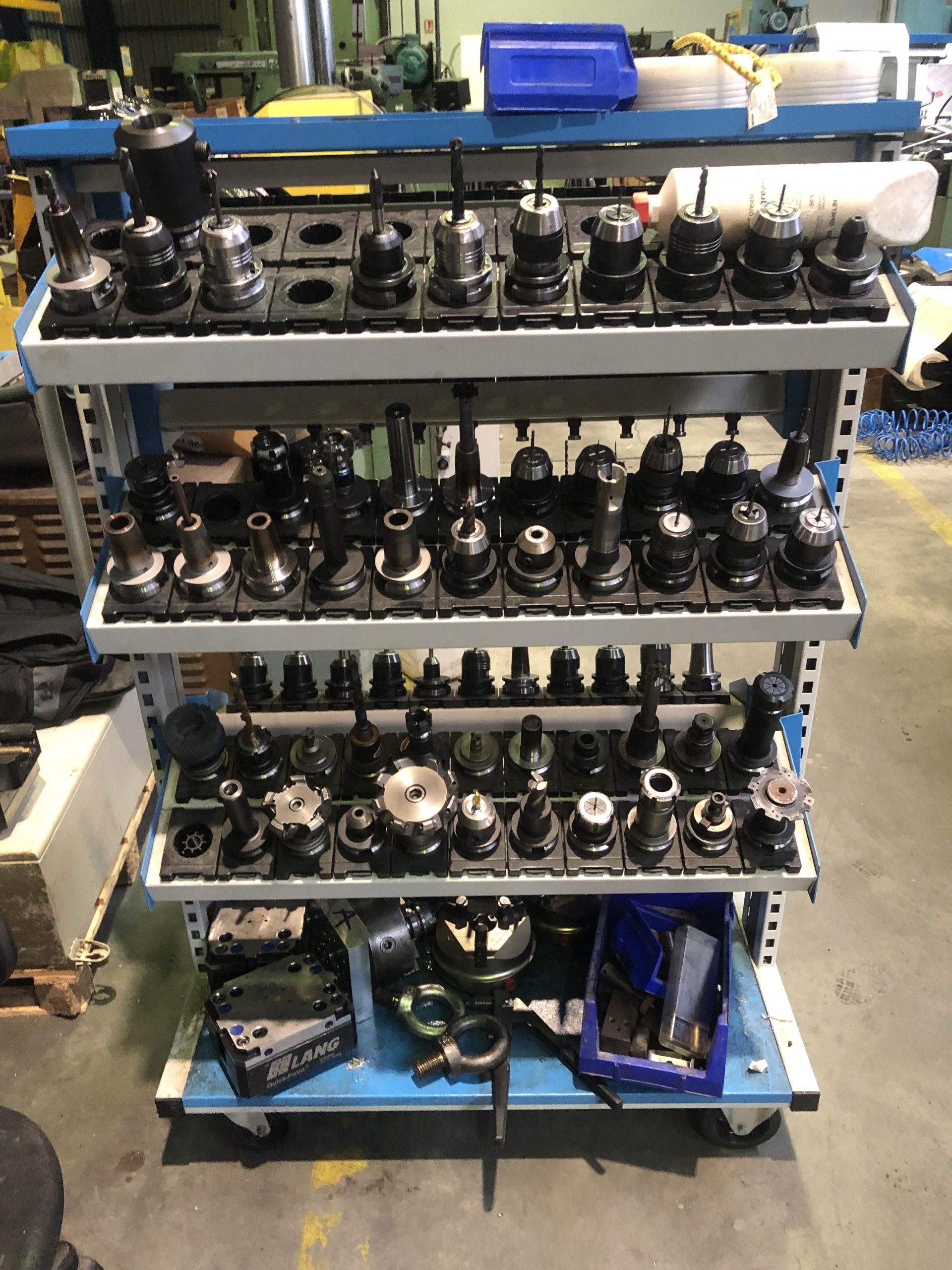

1 set of 40 tool holders

Tool probe: TT160

No workpiece probe

Videos:
