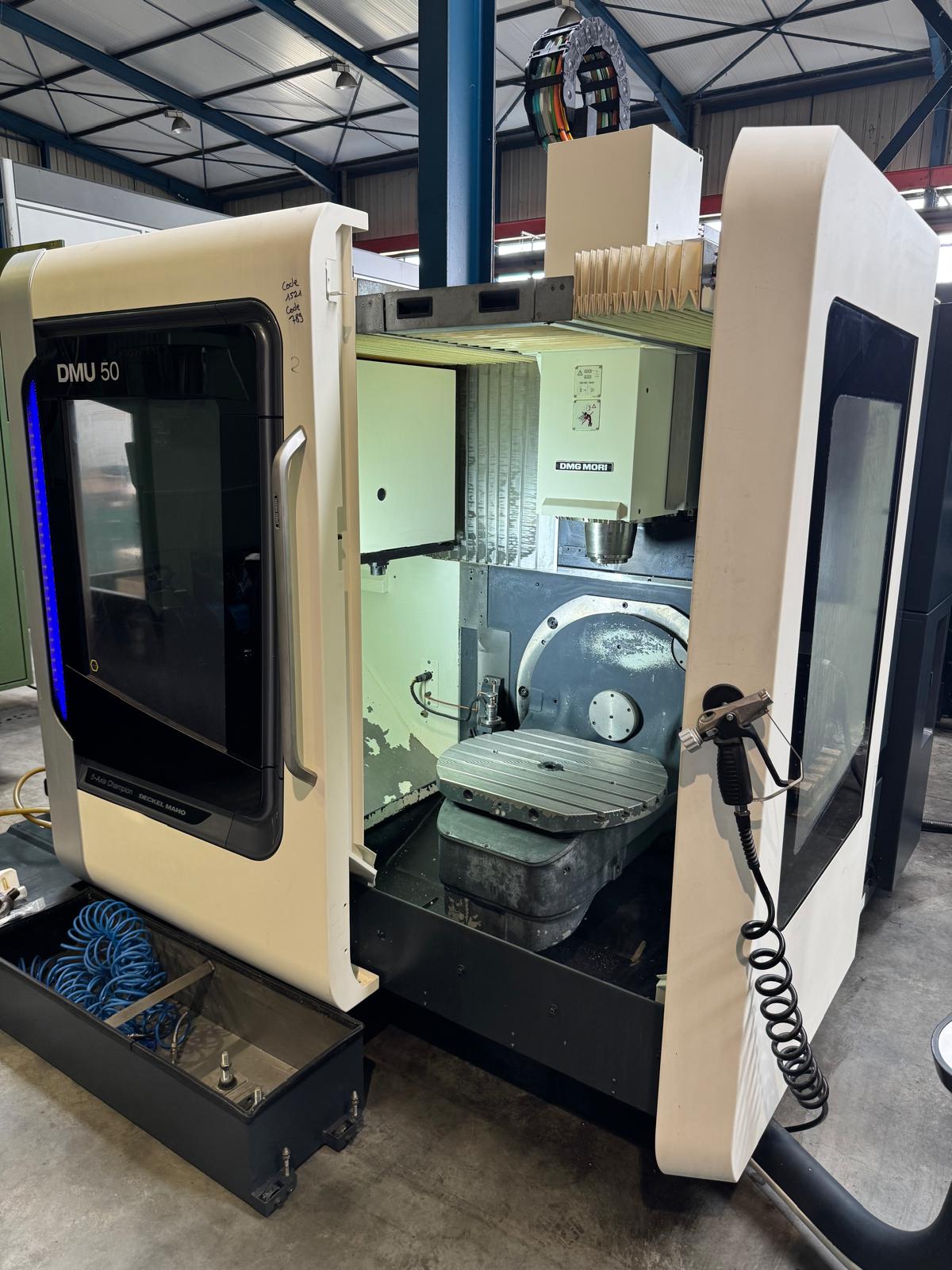

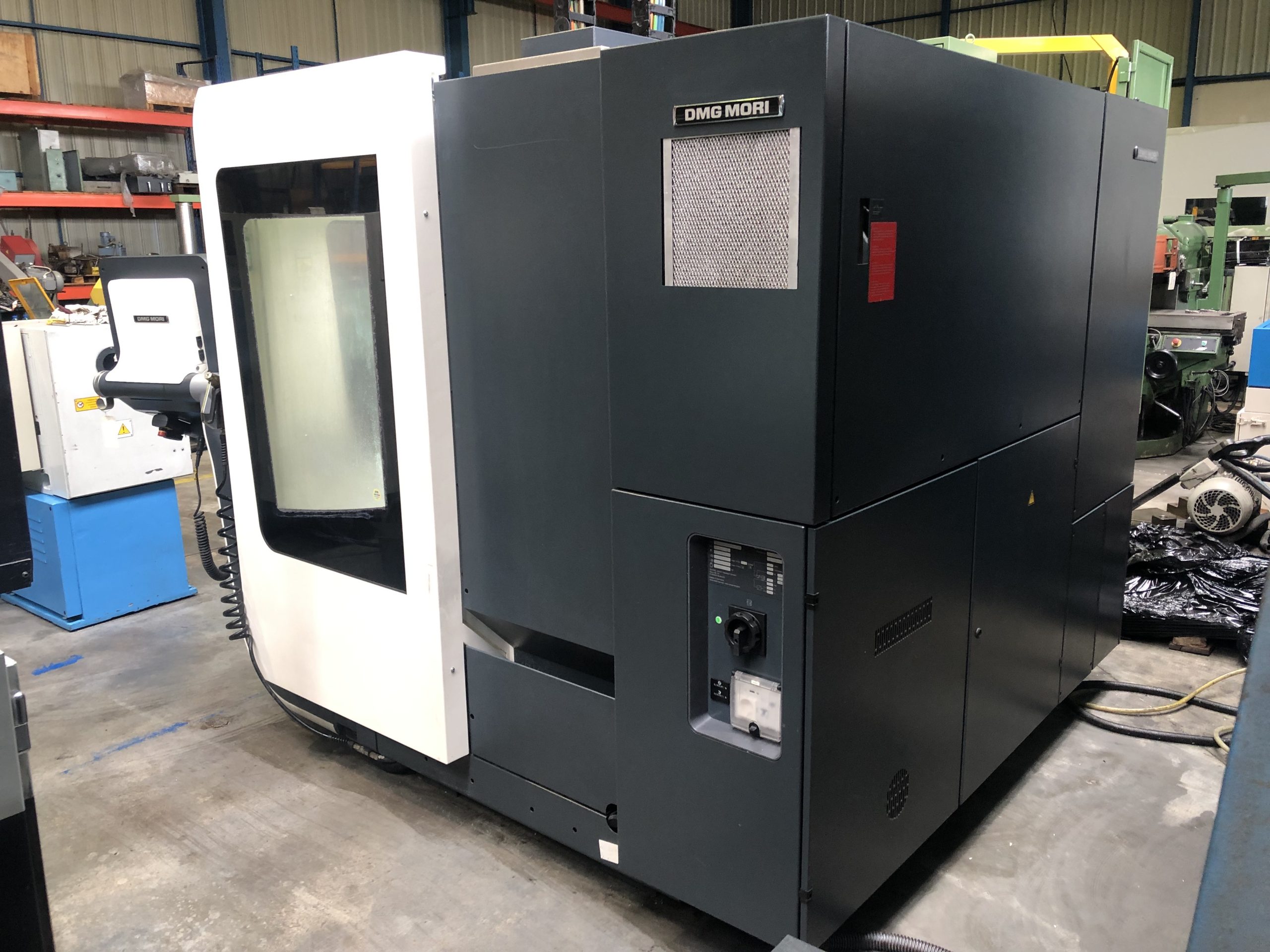

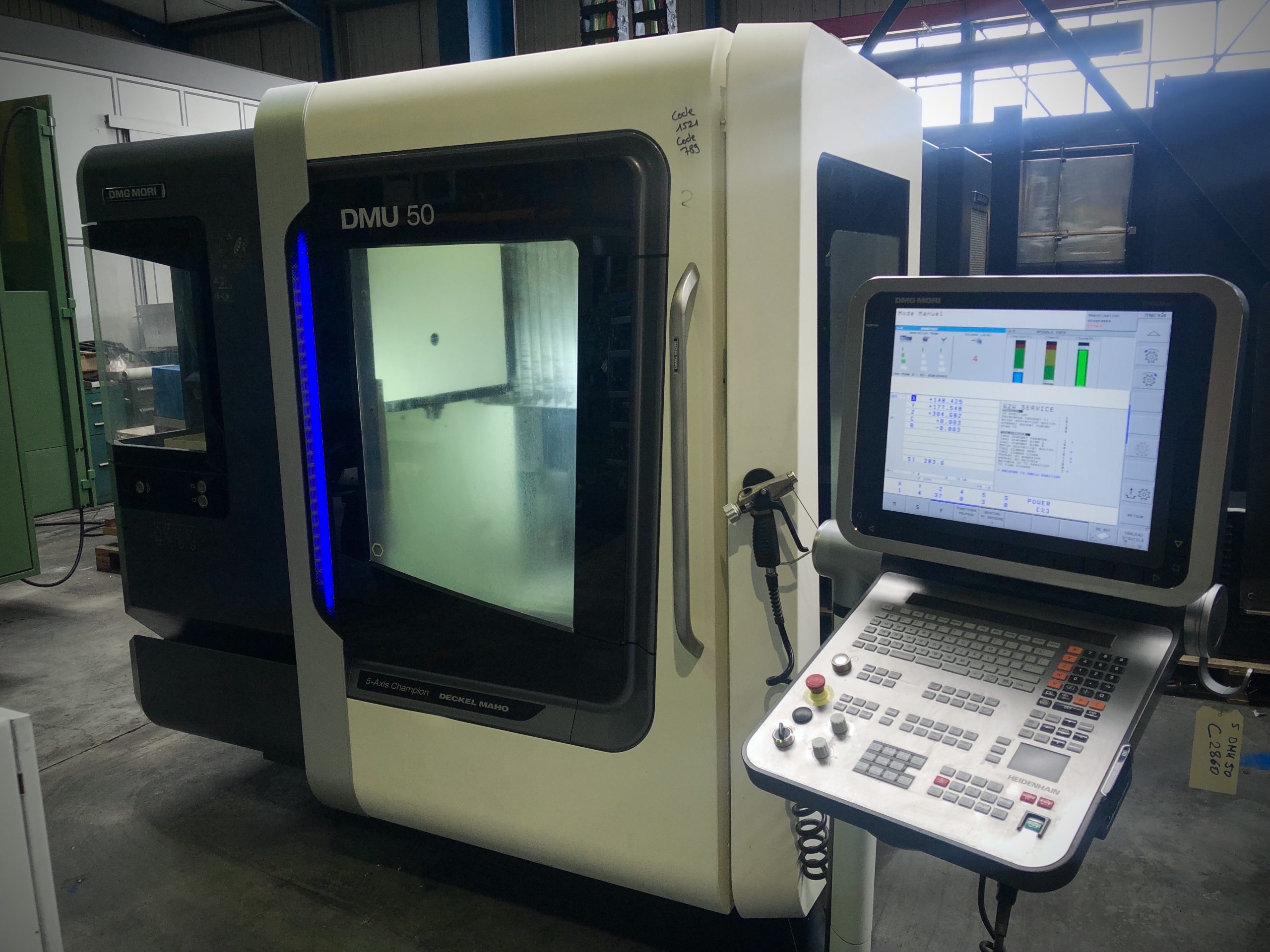

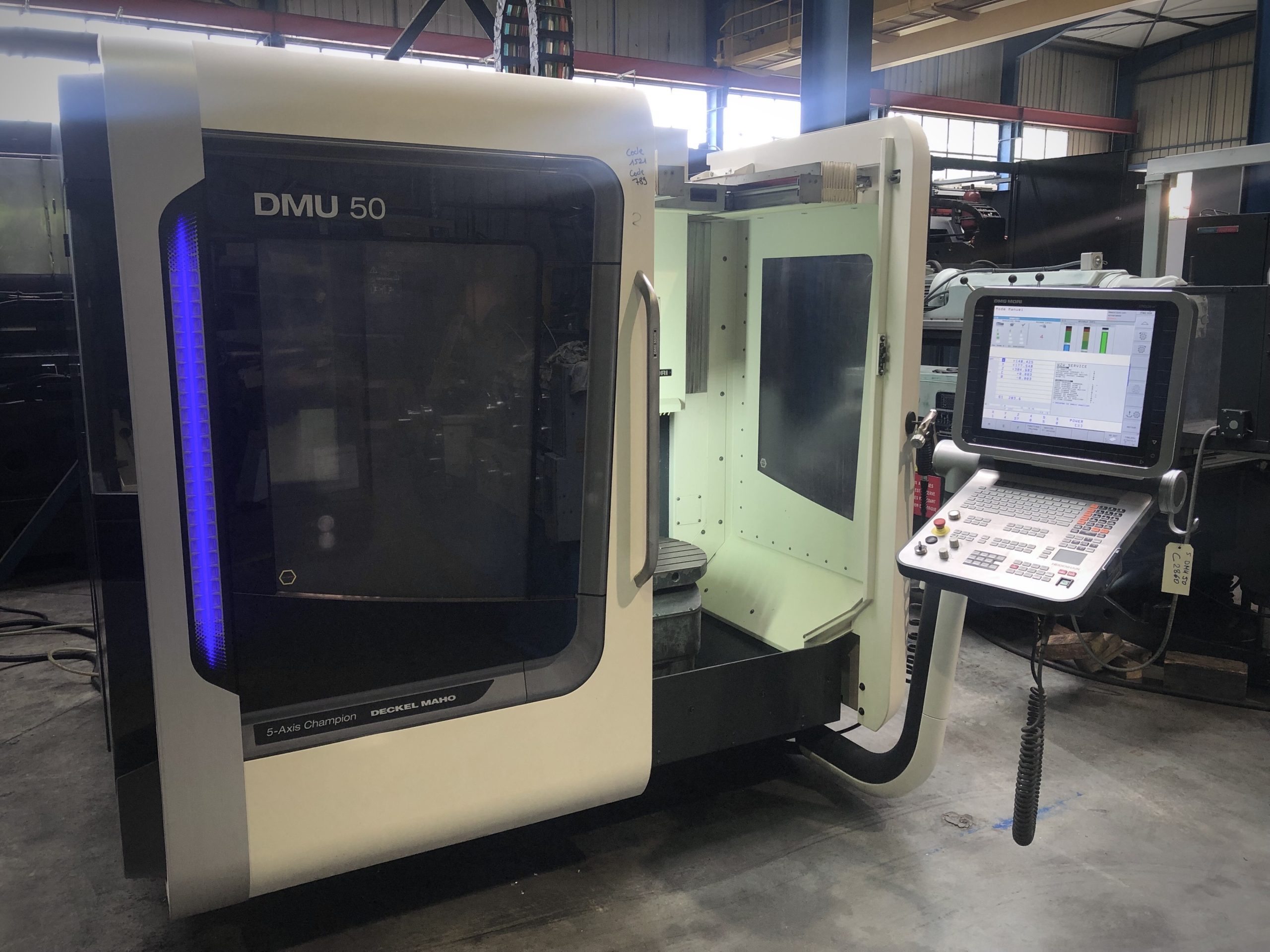

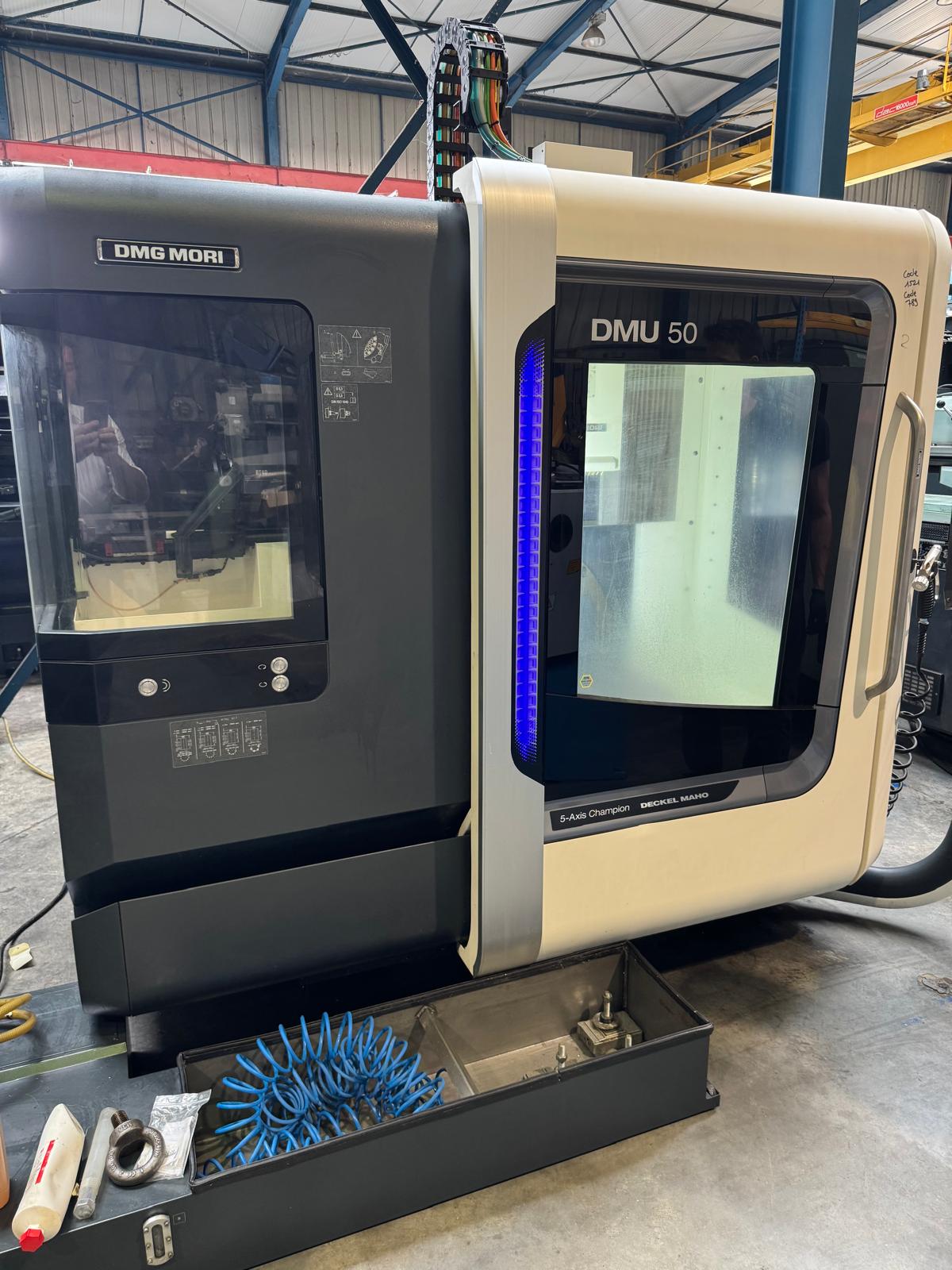

DMU 50 Vertical Machining Center (5 Continuous Axes)

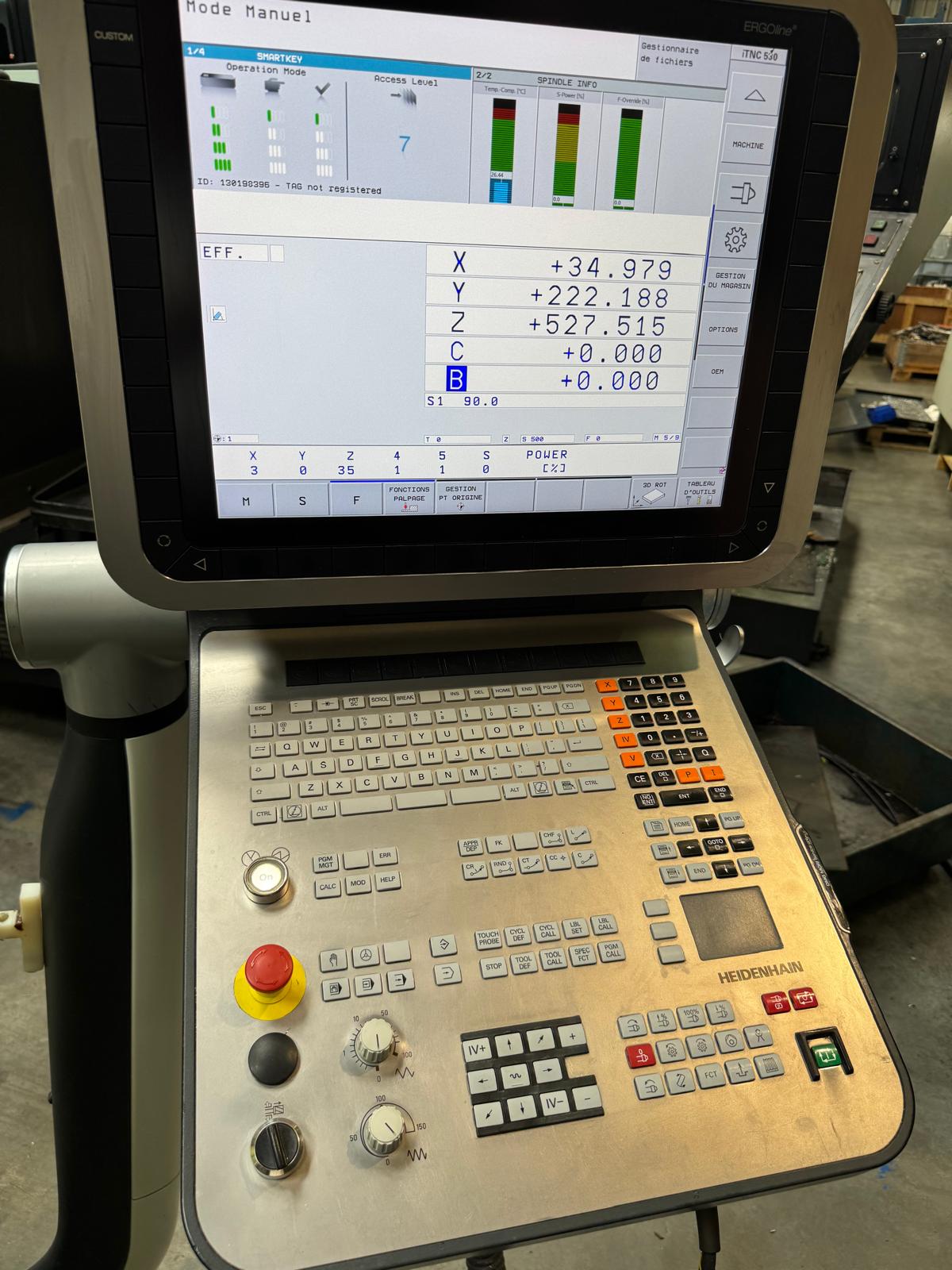

Electronic handwheel: HR 410

Milling Head:

• Speed: 20 – 14,000 rpm

• Motor power: 18.9 k

Feed rate:

• Continuous feed speed up to 24,000 mm/min

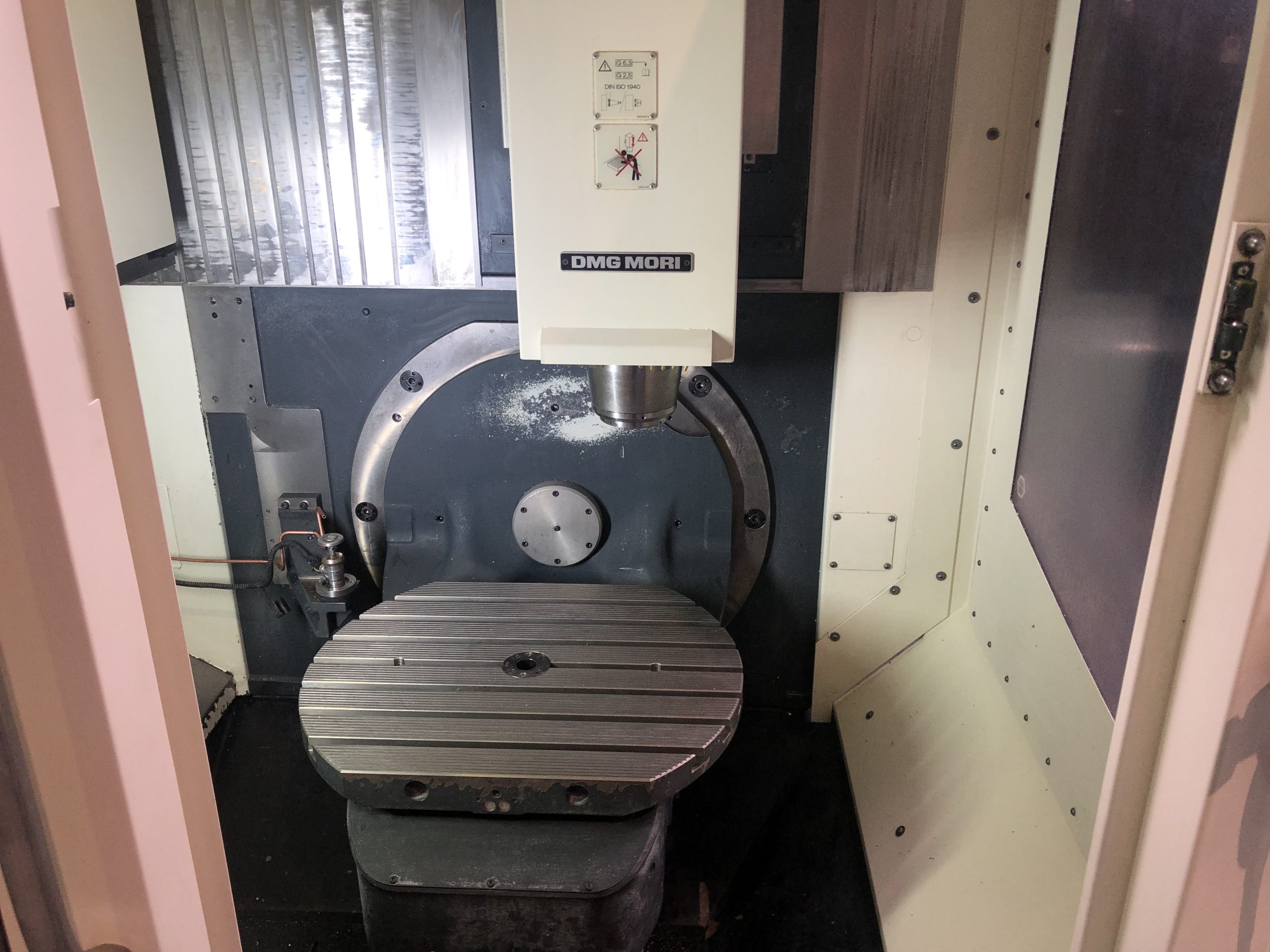

Rotary tilting table (C-axis):

• Ø 630 x 500 mm

• Max rotation speed: 20 rpm

Max load at center on B-axis:

• 300 kg

Max rotation speed B-axis:

• 20 rpm

Travel:

• C-axis: 360°

• B-axis: -5° / +110°

Additional Information:

• Complete documentation

• Coolant gun

• No chip conveyor

• No through-spindle coolant

• External coolant only

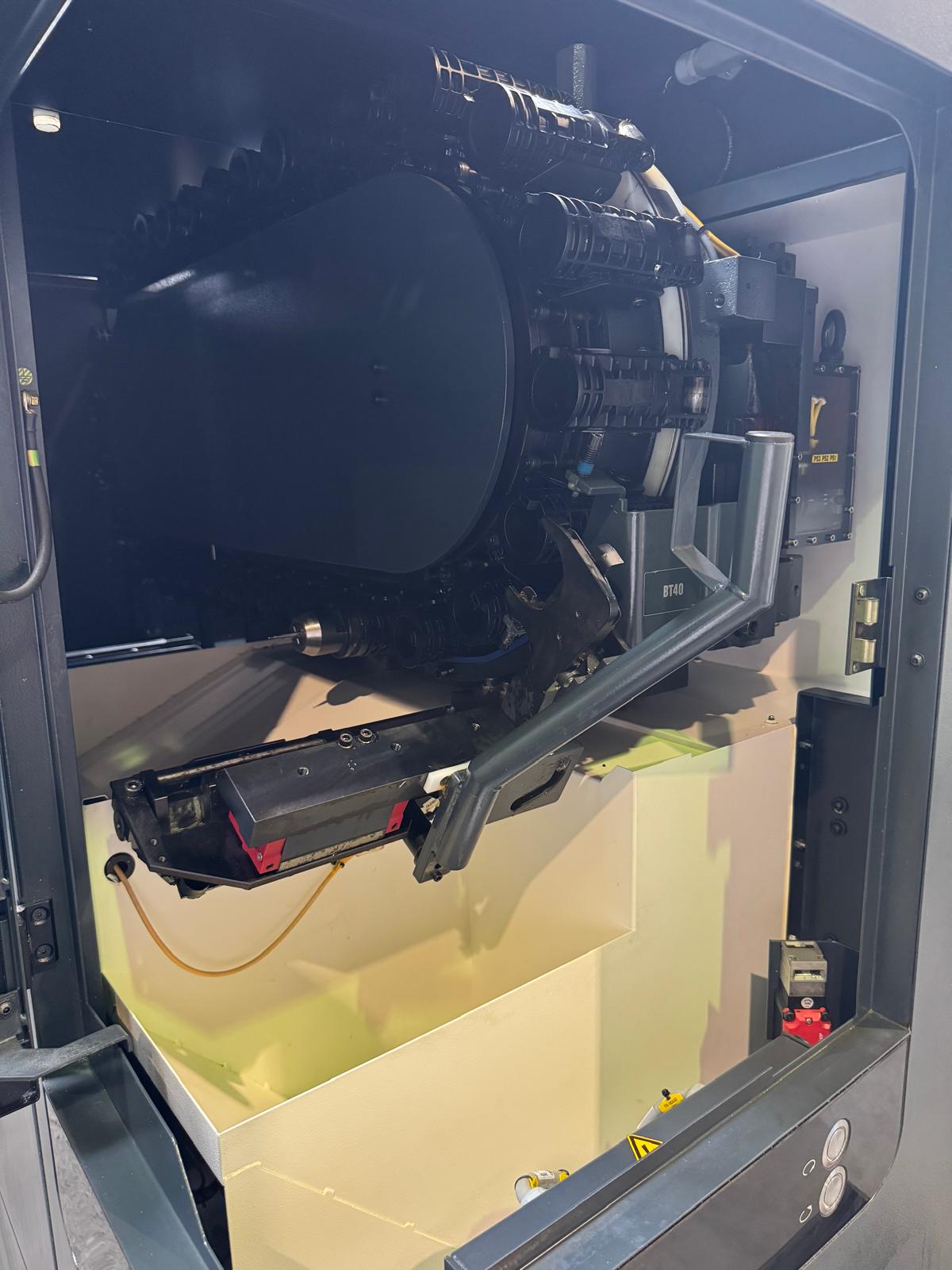

• 1 set of 40 tool holders

• Tool probe: TT160

• No workpiece probeVideo: https://youtube.com/shorts/HutyydEZ_2c
