VMC DMG MORI DMC 1150 V 4 continuous axes

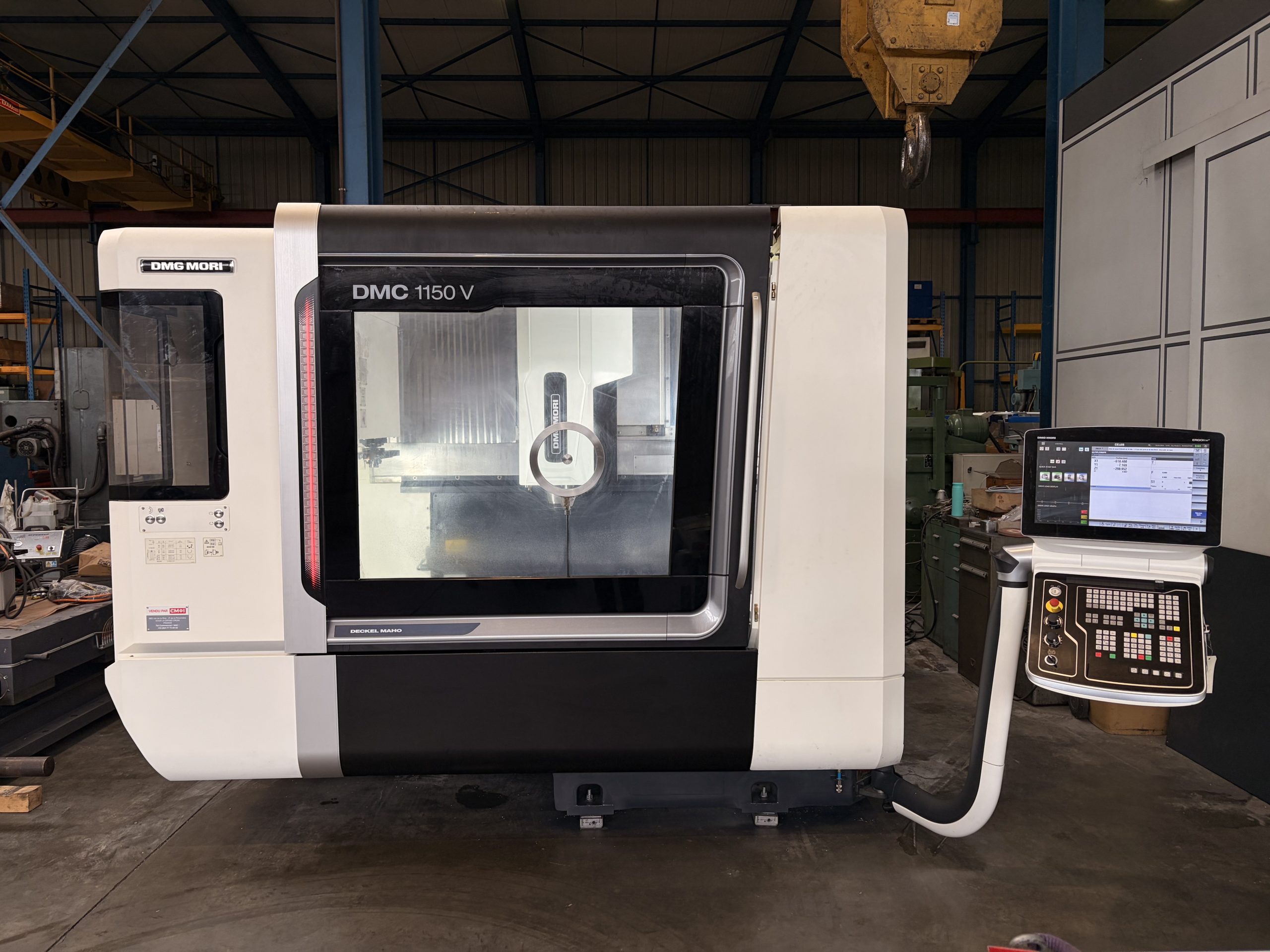

DMG MORI DMC 1150 V Vertical Machining Center

ReferenceC2871
ModelDMC 1150V

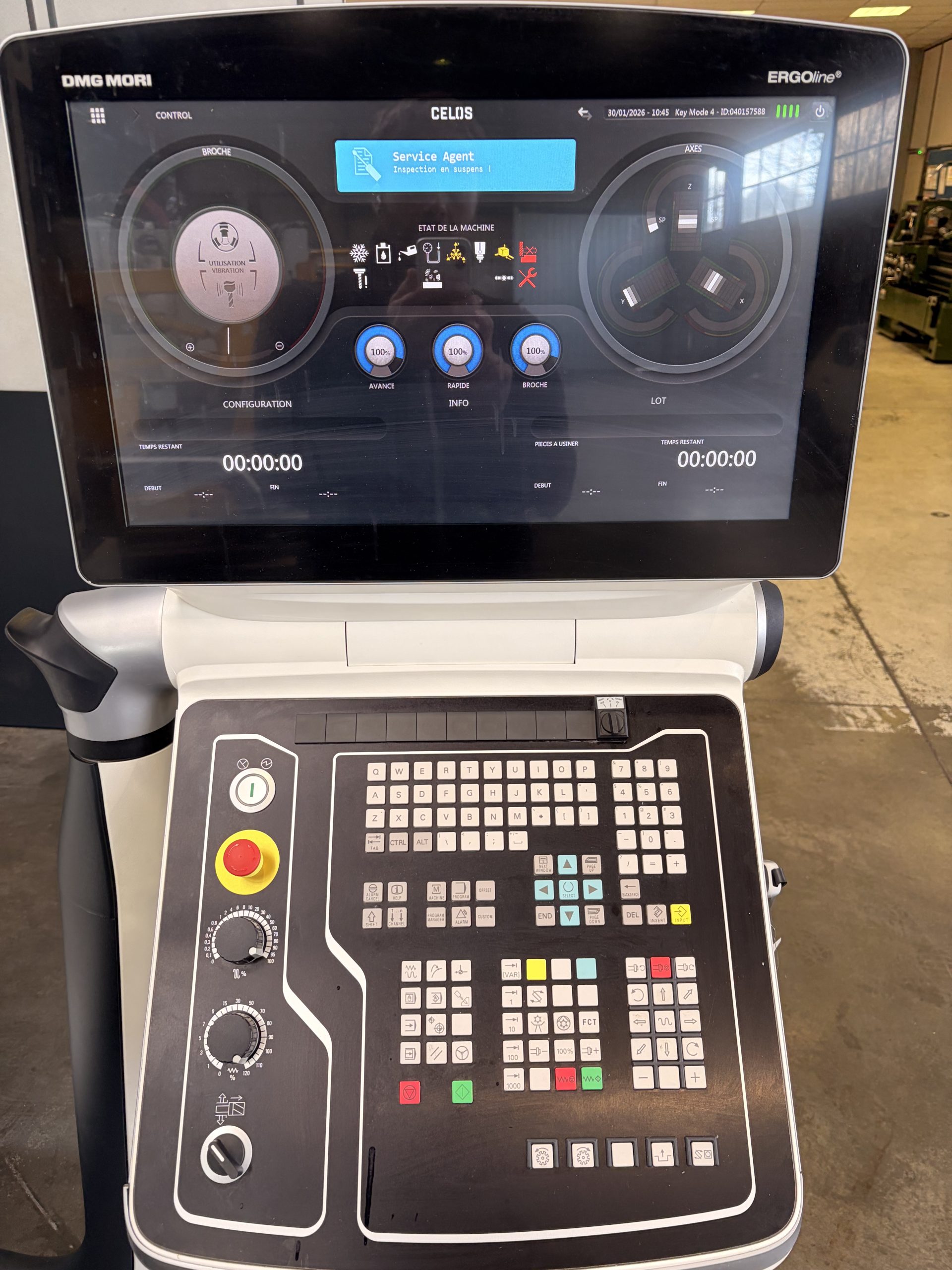

Control systemSiemens CELOS
Operating HoursSpindle 2200 hrs
Year of manufacture2017
Table dimension1460 X 750 MM
Load capacity1500 KG
stroke X axis11500 MM
stroke Y axis700 MM
stroke Z axis550 MM
Rotation speed range20- 24000 tr/min
spindle power24 KW
Tools number/type60 / HSK 63
Weight9200
Dimensions3733 x 2855 x 2710 mm

SMARTkey operating mode selector
Continuously programmable feed rate for X, Y, Z axes up to 42,000 mm/min
Rapid traverse X, Y, Z: 42 m/min

Accessories:

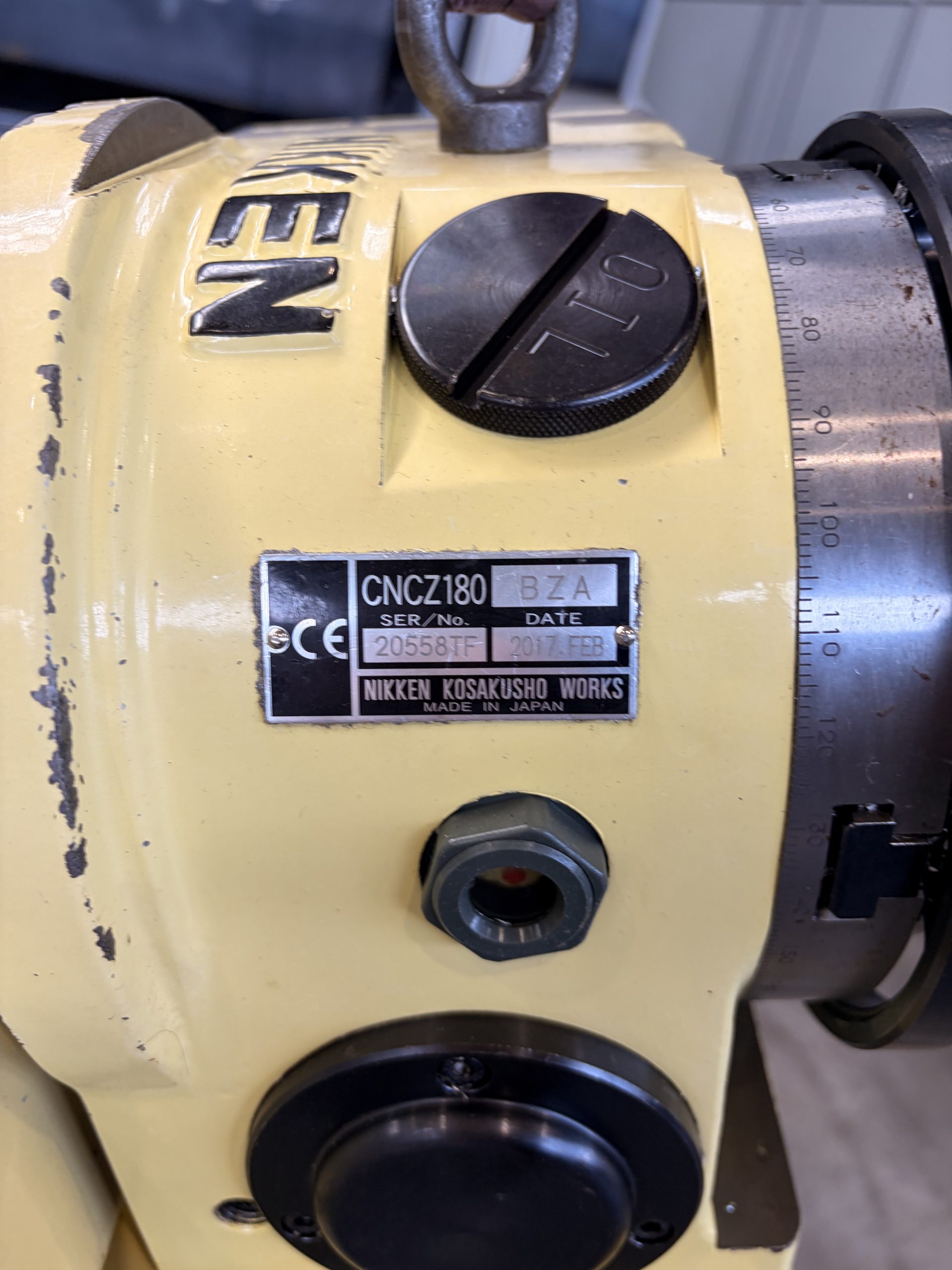

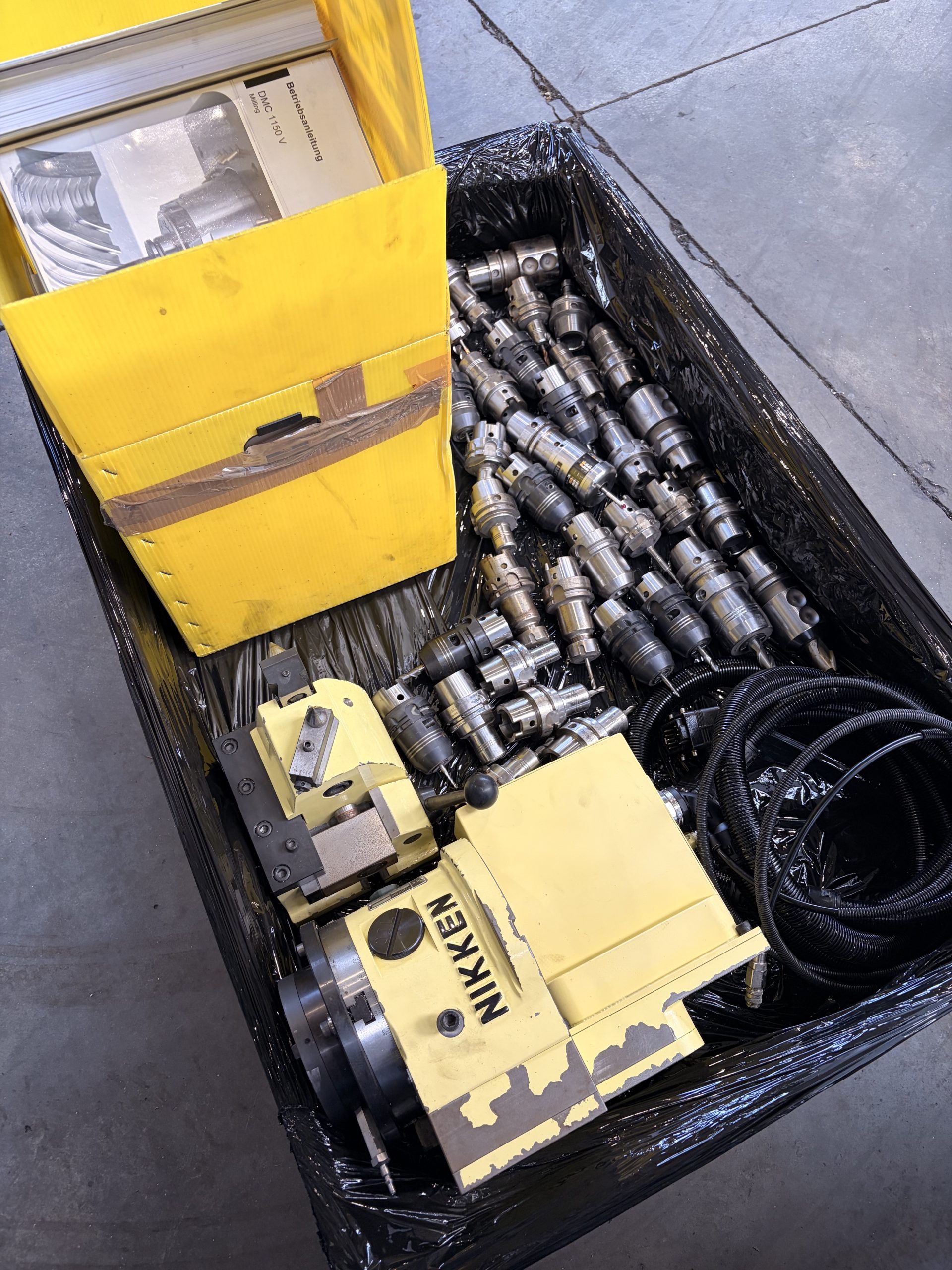

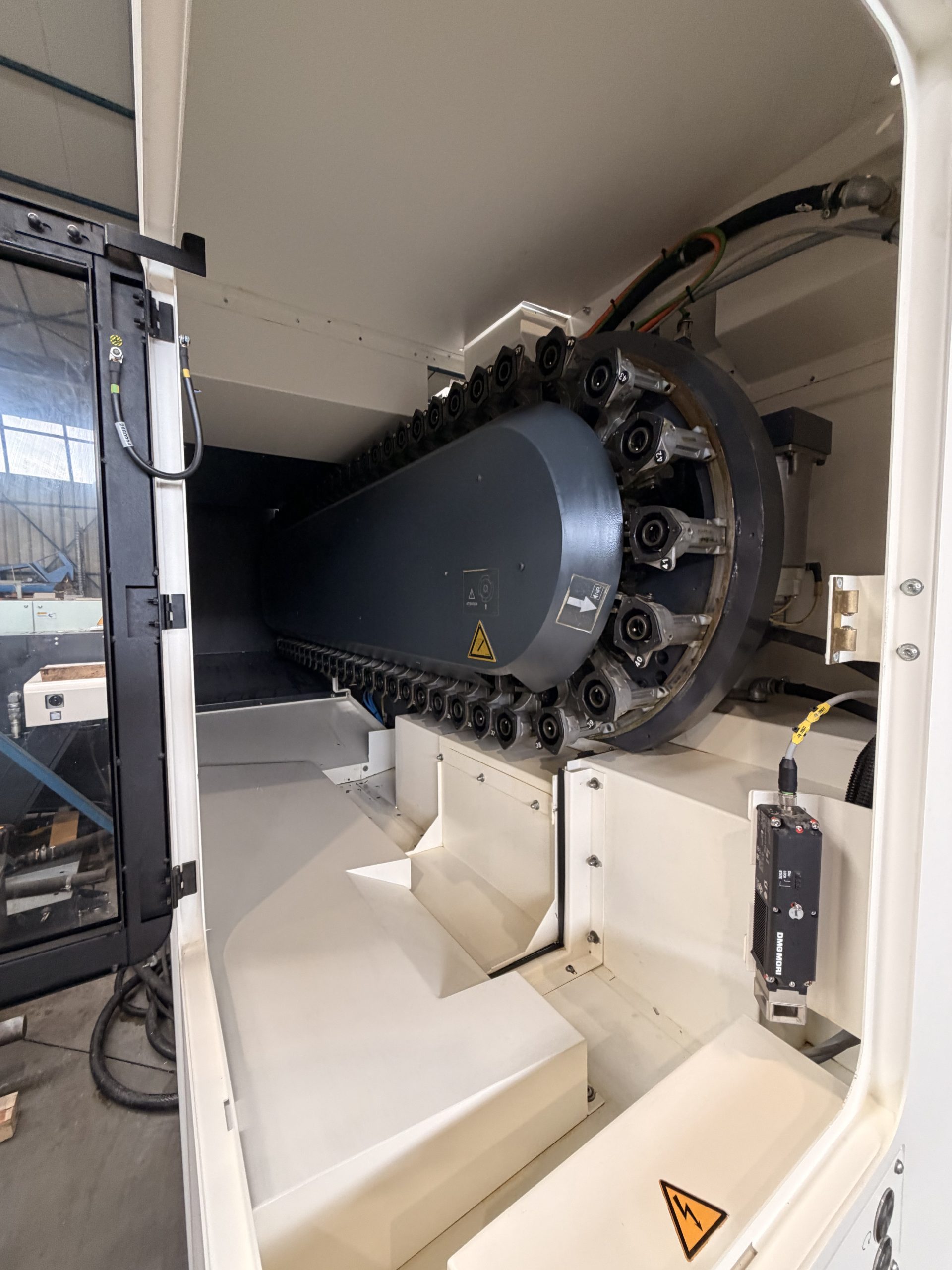

60-tool tool magazine / Chip conveyor / Blum tool probe / Heidenhain workpiece probe /  4th-axis rotary table Nikken BZA CNC Z180 / Mist separator / Chiller unit / coolant Through-spindle / Set of 32 tool holders HSK 63 / Wash gun / Oil mist extractor / Complete documentation

Vidéos :
Vidéo #01 / Vidéo #02 / Vidéo #03 / Vidéo #04 / Vidéo #05

Data sheetObtenir une offre
