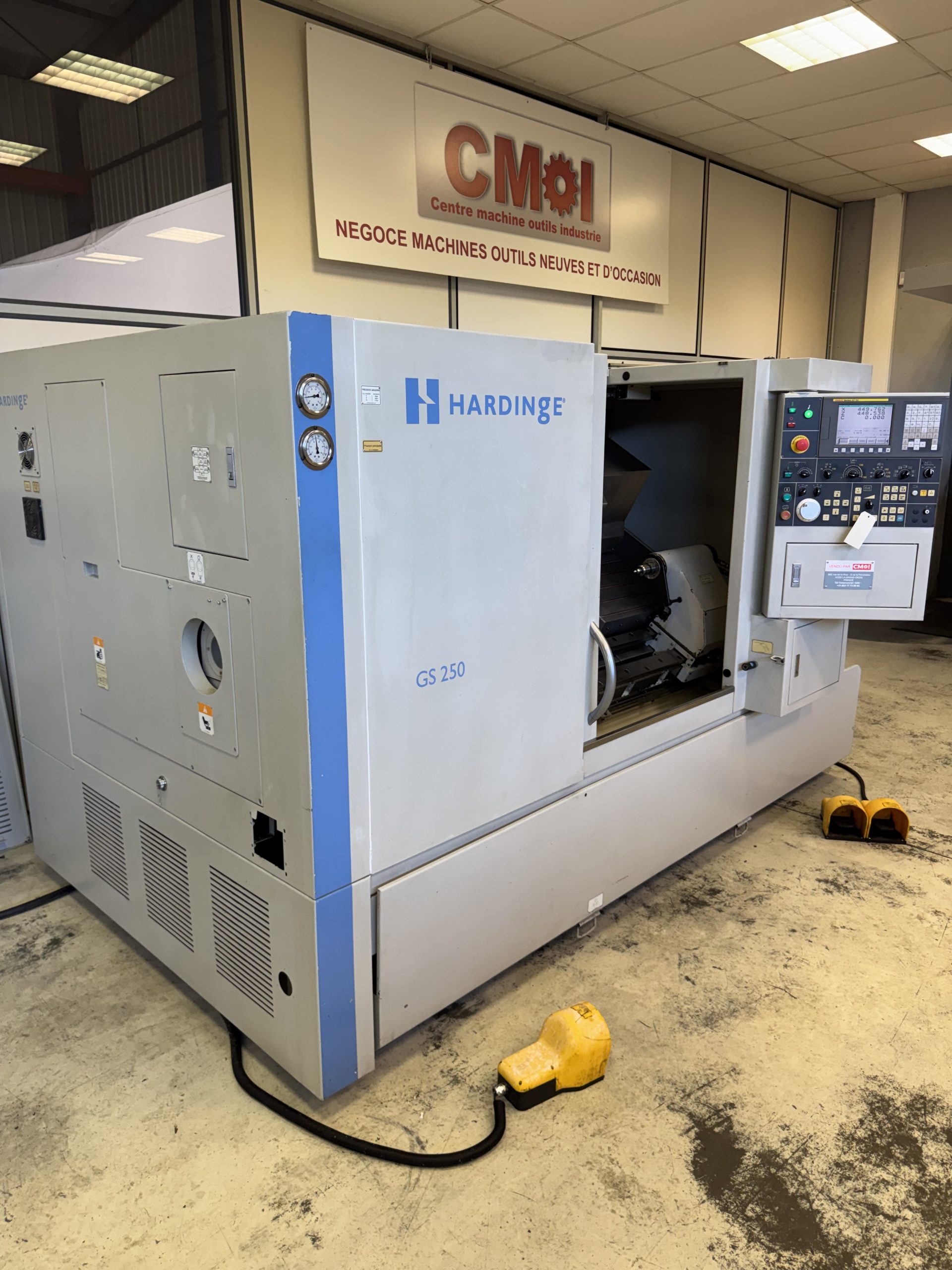

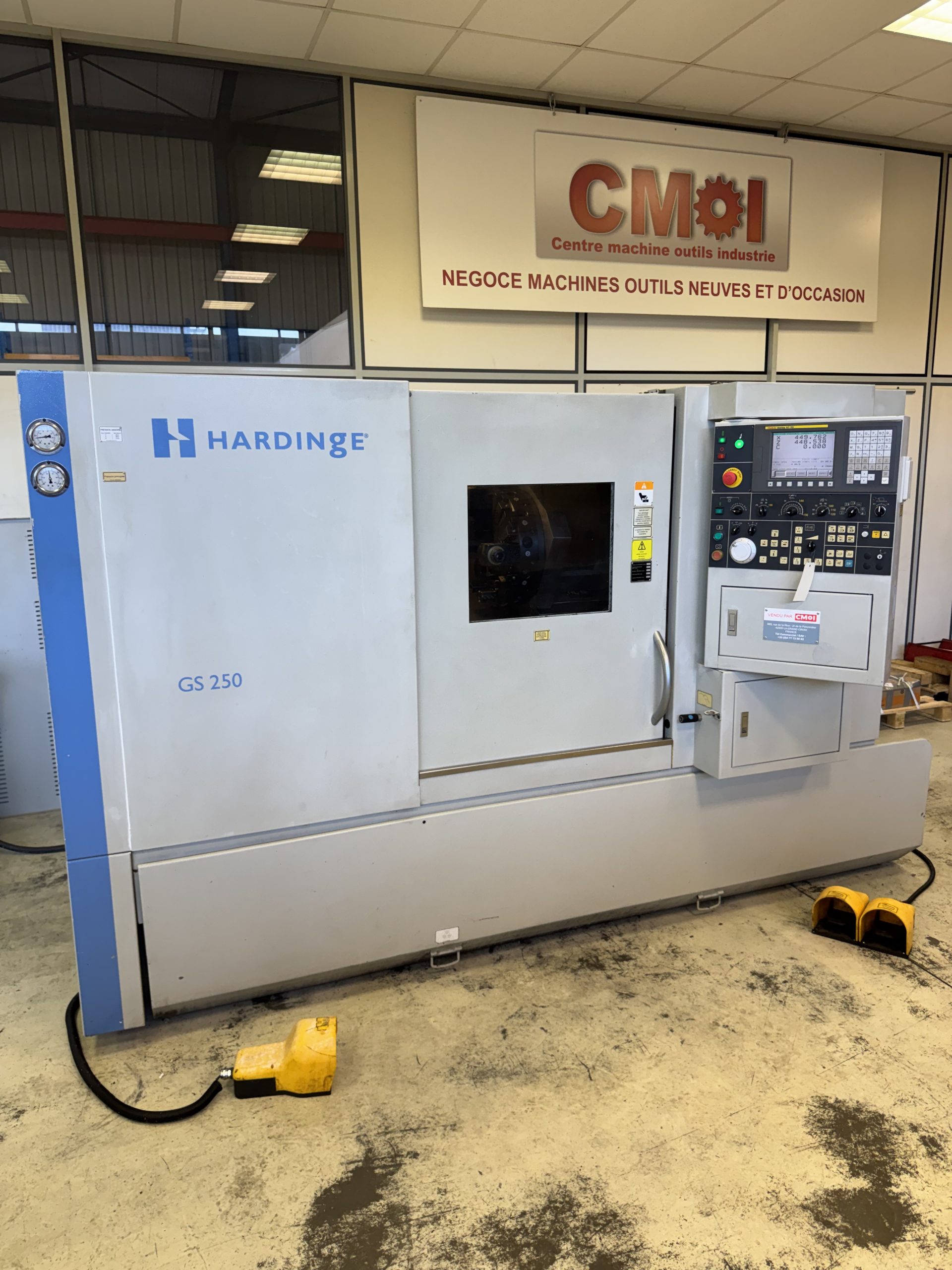

CNC lathe HARDINGE GS 250M 3-Axis

ReferenceC2882

ModelHARDINGE GS 250M

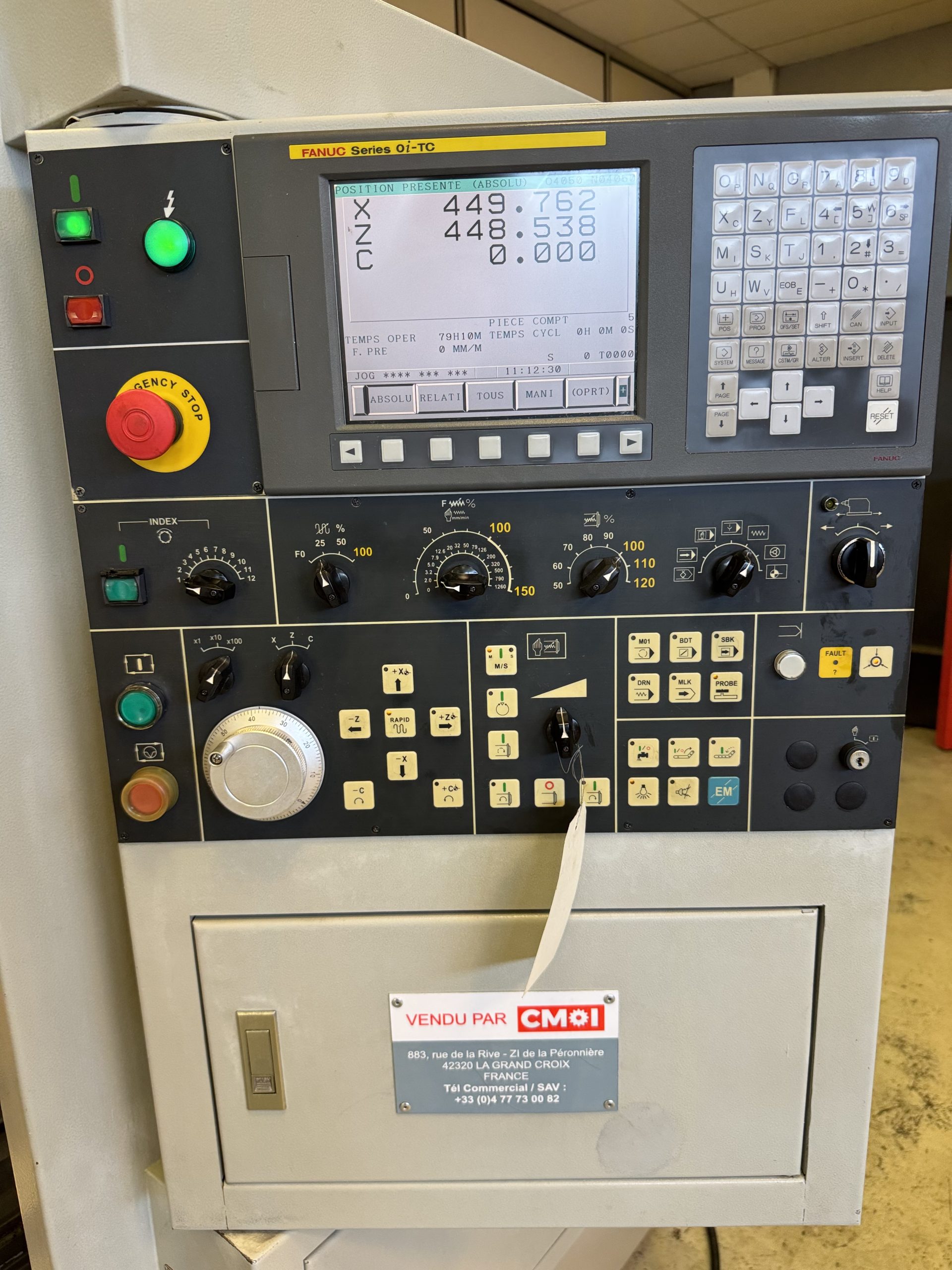

Control systemFanuc Oi-TC CNC

Operating Hours6000 h

Year of manufacture2008

Swing over bed595 mm

stroke X axis271 mm

stroke Z axis600 mm

Rotation speed range3500 tr/min

Spindle bore89 mm

Max. bar diametre78 mm

Tools number/type12 VDI 40

Max turning diameter: 356 mm

Turning length: 558.8 mm

Spindle nose: A2-8″

Options :

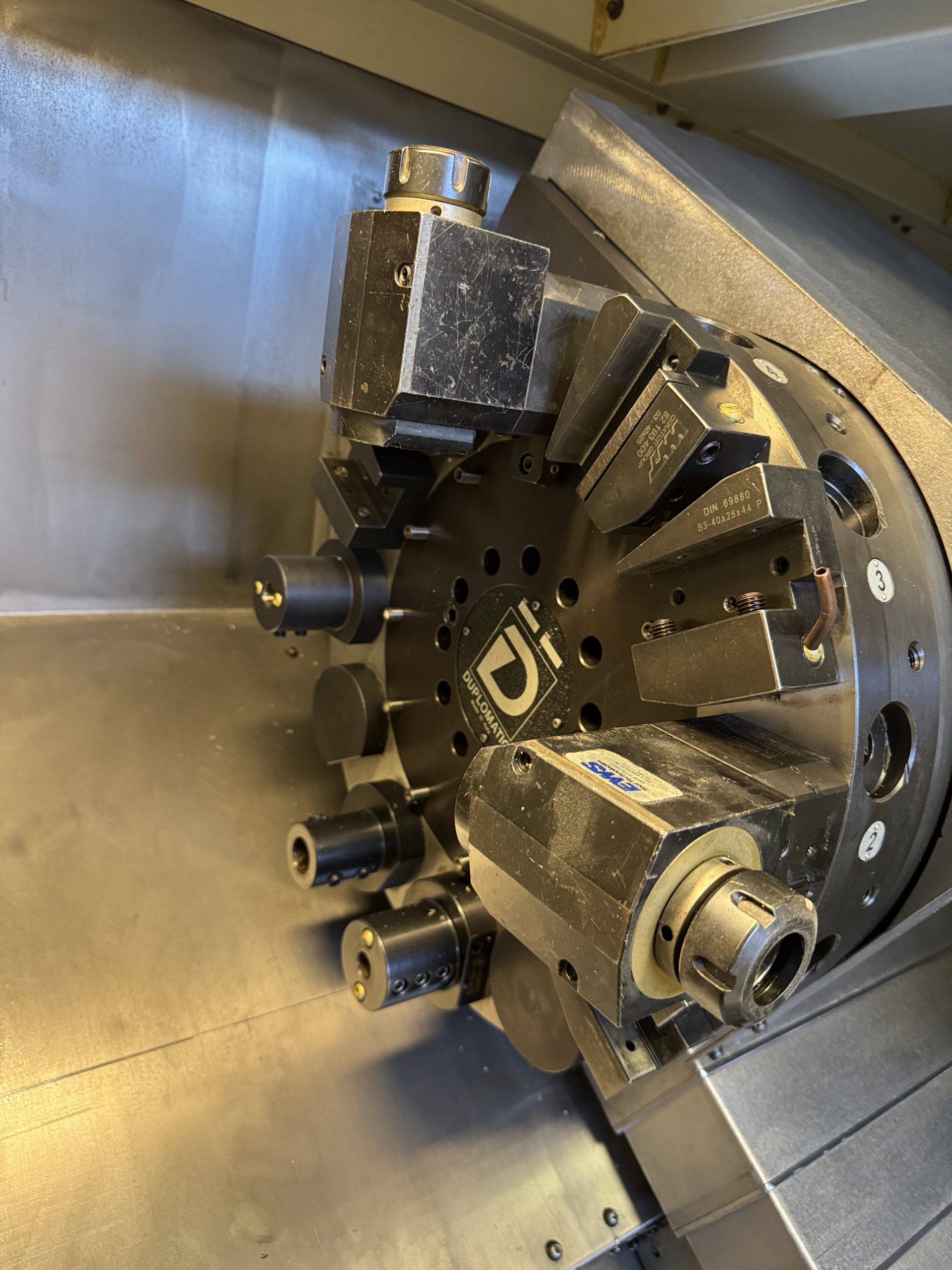

1 turret with 12 live tool stations, VDI 40
C-axis with 360,000 positions
2 live tools

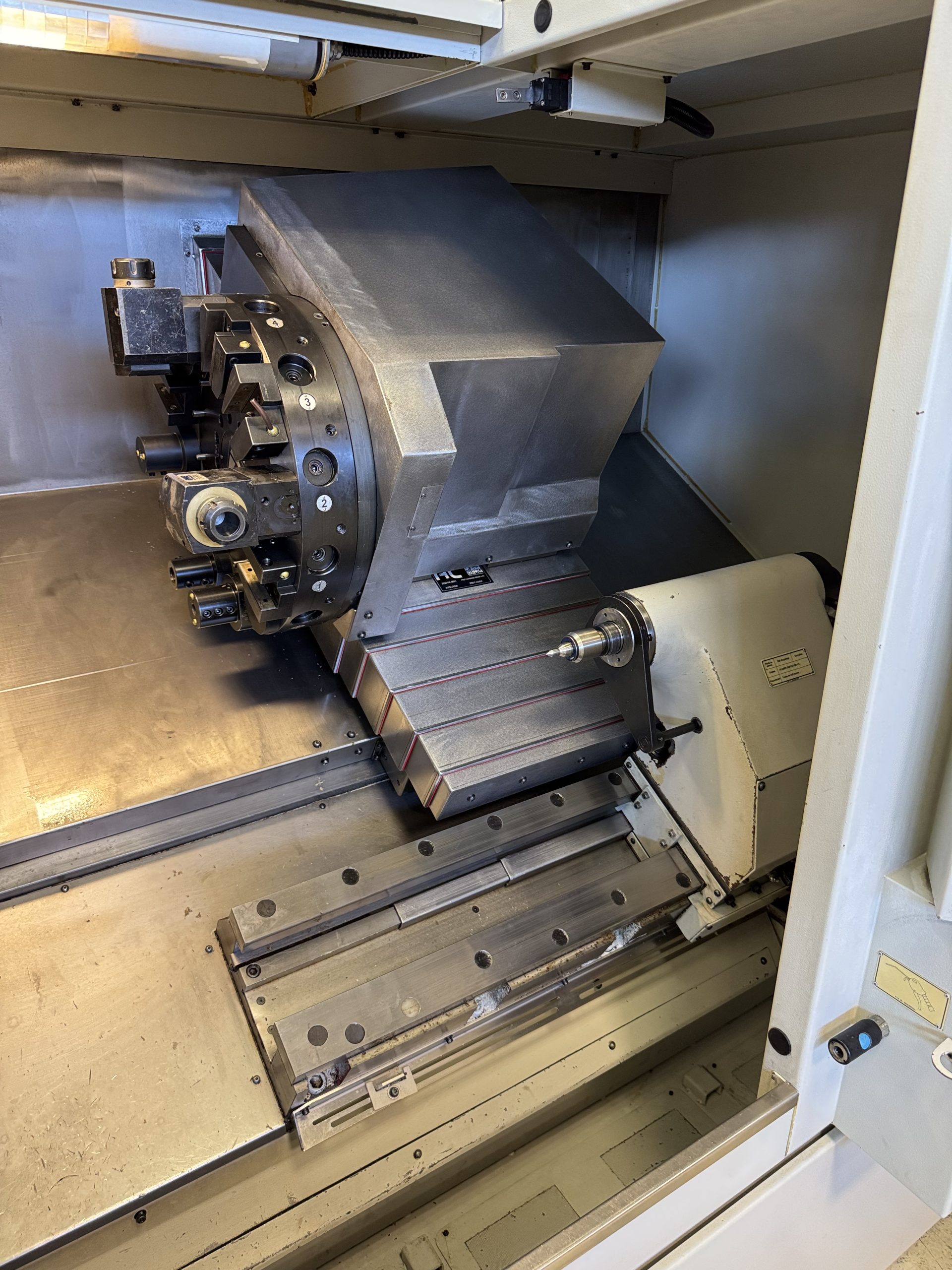

Fully programmable tailstock
Automatic tool measuring probe
Parts catcher
2 fixed tool holders
2 live tool holders
1 three-jaw Tonfou chuck 254 mm
